BP Solar 10 Watt Solar Panel BP SX310

  • The BP SX310 is backed by a 12 year power warranty
  • Charge batteries efficiently in virtually any climate. Ideal for commercial applications including remote telemetry, instrumentation, sensors and signals.
  • The BP SX310 solar panel is ideal for charging batteries to operate DC loads with small to moderate energy requirements.

    • Typical applications: Off-grid and mobile power Key features: Instrumentation, off-grid, robust with j-box for field wiring Cell technology: Polycrystalline Dimensions: 421mm x 269mm x 23mm Weight: 4.18 lbs Glass type: Low lead, 92% transmission Frame type: Clear universal frame and standard J-Box

    No Longer Available

    We carry many high quality BP Solar Panel Equivalents for off-grid systems.

    Contact us at (877) 297-0014 for expert advice.

    SKU BPSX310
    Attachments Details

    BP Solar SX 310 10 Watt Multi-Crystalline Solar Panel

    With 36 multicrystalline cells in series, the SX310 10 watt solar panel charges 12V batteries efficiently in virtually any climate. Typical commercial applications of this module, which generates nominal maximum power of 10 watts, includes remote telemetry, instrumentation systems, security sensors, and signals. The SX310J is listed with UL and approved by Factory Mutual Research (FM) in NEC Class 1, Division 2, Groups C & D hazardous locations.

    Electrical Characteristics

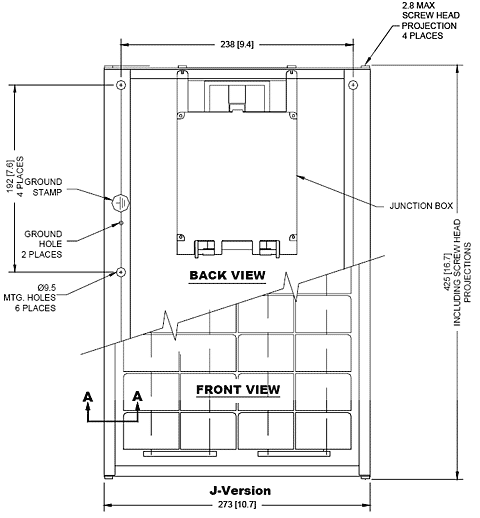

    Dimensions



    Model Rating Description Price

    BP SX310J

    10 Watts,
    12V Nominal
    16.8V Peak

    		 Model: SX310J
    Type: Multicrystalline
    Connection: Junction Box
    Frame: Aluminum with tempered glass,
    Universal frame
    Peak Power: 10 watts, 9 watts warranted
