| Model Number | BP3230T |
| STC Rating | 230.0 |
| PTC Rating | 0.0 |
| Open Circuit Voltage (V) | 36.7 |
| Short Circuit Current (A) | 8.40 |
| Frame Color | Silver |
| Origin | |
| Power % ± | -3/5 |
| (W/ft²) | 0.00 |
| Area (ft²) | 215.3 |
| Weight (lbs) | 42.8 |
| Length (in) | 65.63 |
| Width (in) | 39.37 |
| Height (in) | 2.00 |

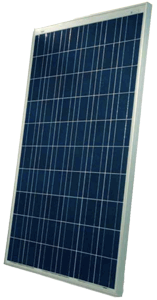

BP Solar BP3230T Solar Panels
- High Performance 230 Watt Polycrystalline T-Series Solar Module.
- 60 high current cells, power classification that includes LID effect.
- Anti-reflective glass ensure excellent energy yields for grid connected systems.
- New high strength frame developed in conjunction with Porsche Engineering.
- Ability to withstand 6 meters of fresh snow or 900kg.
- Shock absorbing corners and a thick polyester backsheet for extra protection.
- Best in class weight per Watt ratio of 92g/W.
- Modern design according to haptic handling requirements.
- Potted junction box with redundant electrical connection.
No Longer Available
We carry many high quality BP Solar Panel Equivalents for off-grid systems.
Contact us at (877) 297-0014 for expert advice.

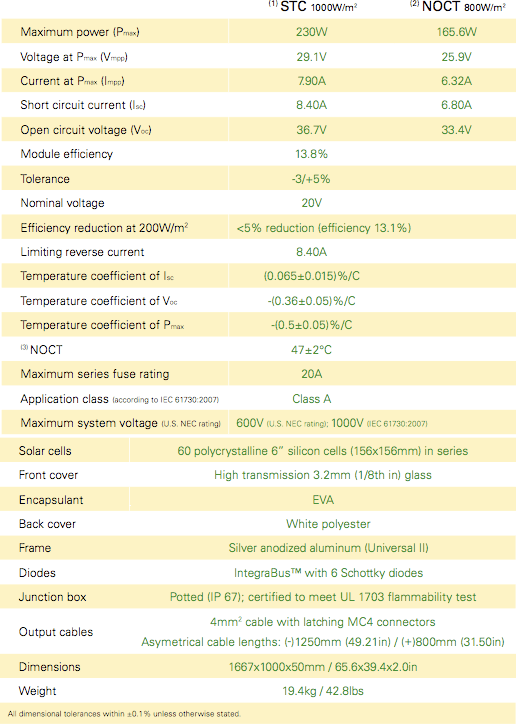

Specification
Dimensions
