| Model Number | BP380J |
| STC Rating | 125.0 |
| PTC Rating | 0.0 |
| Open Circuit Voltage (V) | 36.7 |
| Short Circuit Current (A) | 8.40 |
| Frame Color | |
| Origin | |
| Power % ± | 0/0 |
| (W/ft²) | 0.00 |
| Area (ft²) | 215.3 |
| Weight (lbs) | 42.8 |
| Length (in) | 65.63 |
| Width (in) | 39.37 |
| Height (in) | 2.00 |

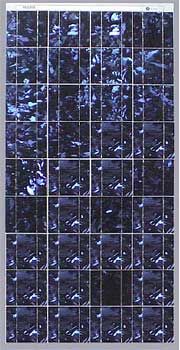

BP Solar BP380J Solar Panels
- The BP SX 380 and 375 are backed by a 25 year power warranty
- Easy to handle, but offering good energy performance per panel.
- A versatile solution for remote industrial applications such as telecoms and water pumping.
- Also used for small recreational vehicles (RVs) and cabins, charging 12V batteries efficiently in virtually any climate.
No Longer Available
We carry many high quality BP Solar Panel Equivalents for off-grid systems.
Contact us at (877) 297-0014 for expert advice.
Typical applications: Off-grid and instrumentation Key features: Instrumentation, off-grid, robust with j-box for field wiring Cell technology: Polycrystalline Dimensions: 1209mm x 537mm x 50mm Weight: 16.94 lbs Glass type: Low lead, 92% transmission Frame type: Universal, dark bronze anodized
BP Solar SX 380 80 Watt & SX 375 75 Watt Multi-Crystalline Solar Panel
The BP 380 solar module is designed to provide cost-effective power for DC loads with moderate energy requirements. This model replaces the BP 380U. With 36 (125mm x 125mm) in a 4x9 matrix connected in series, the BP 380 charges 12V batteries (or multiples of 12V) efficiently in virtually any climate. Typical applications include remote telemetry, instrumentation systems, radio repeaters, security sensors, water pumps, marine applications and land-based aids to navigation. The IntegraBus™ technology includes Schottky by-pass diodes integrated into the printed circuit bus. The Universal Frame model we carry has a junction box with a 6-terminal connection block; IP 65, accepts PG 13.5, M20, 1/2" conduit or cable fittings accepting 6-12mm diameter cable. Optionally, the junction box may also be fitted with blocking and bypass diodes. The terminals accept 2.5 to 10mm (8 to 14 AWG) wire. The frame is very rugged composed of anodized aluminum. The 1/8" thick tempered glass face will withstand a 1 inch hailstone traveling at 52MPH. The raintight (IP65 Rated) junction box of the BP 380 enables most system array connections (putting modules in series or parallel) to be made right in the junction box.
BP 375 & 380 - Universal Frame, Standard Junction Box Specifications
| Model | Rating | Description | Price |
|
BP 375J |
75 Watts, |
Model: BP 375 Type: Multi-crystalline Connection: Junction box Frame: Aluminum with tempered glass, rugged universal frame. Peak Power: 75 watts |
|
|
BP 380J |
80 Watts, |
Model: BP 380 Type: Multi-crystalline Connection: Junction box Frame: Aluminum with tempered glass, rugged universal frame. Peak Power: 80 watts |
|
