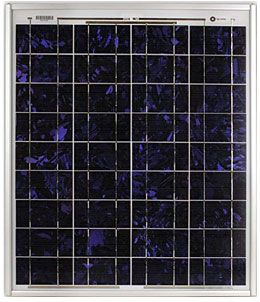

BP Solar BPSX320 Solar Panels

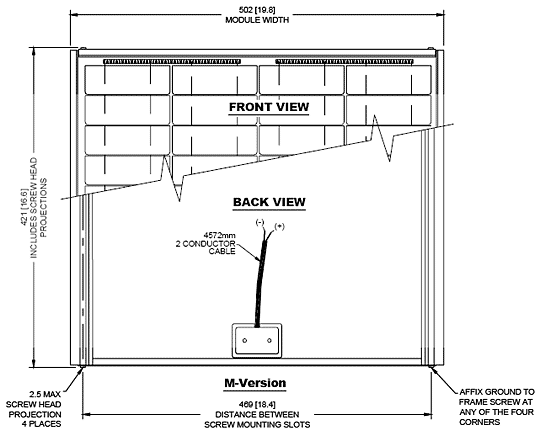

The BP SX 320 photovoltaic module is part of BP Solar's SX module series, providing cost-effective photovoltaic power for DC loads with moderate energy requirements. With 36 multicrystalline cells in series, this panel charges batteries efficiently in virtually any climate. Typical commercial applications of this module include remote telemetry, cathodic protection, instrumentation systems, security sensors, signals, oil metering, water metering, residential gate and land-based navigation aids. 1. The Universal Frame model (SX320J) has a junction box and a very rugged frame. The junction box accepts cable or conduit. The standard terminals accept 8 AWG to 14 AWG wire. The raintight (IP65 Rated) junction box of the SX 320J accepts PG13.5 or 1/2" nominal conduit or cable fittings. With its four-terminal connection block, it enables most system array connections (putting modules in series or parallel) to be made right in the junction box. multimount2. The Multimount Frame version (SX320M) has a AWG# 18 2 conductor 15' cable for convenient 12 volt battery charging (an inexpensive charge regulator is recommended). The SX 320M can also be configured in series for a nominal 24VDC system.
