| Model # | 950-0053 |
| Height (with footings) | 1695.5 mm / 66.75 inches |
| Width | 350 mm / 13.8 inches |
| Depth | 680 mm / 26.8 inches |
| Weight | 80 kg / 176.37 lbs |
| Environmental Rating | NEMA 3R / IP 54 |
| Mounting | Free Standing or Pad Mount |
| Access | Removable Door with Locking Mechanism |
| Compatibility | AES RACKMOUNT Battery Module 5 kWh 100 Ah |
| Single Enclosure Configuration | Up to six AES RACKMOUNT Battery Modules (30 kWh Max) |
| Parallel Enclosure Configuration | Up to six RACKMOUNT 30 kWh Slimline Enclosures (180 kWh Max) |
| DC Power Conversion Terminal Block Positions | 2 |
Discover AES Rackmount Slimline Enclosure for Off-Grid & Home Backup
SKU DISCOVER-AES-RACKMOUNT-SLIMLINE-950-0053-ACC

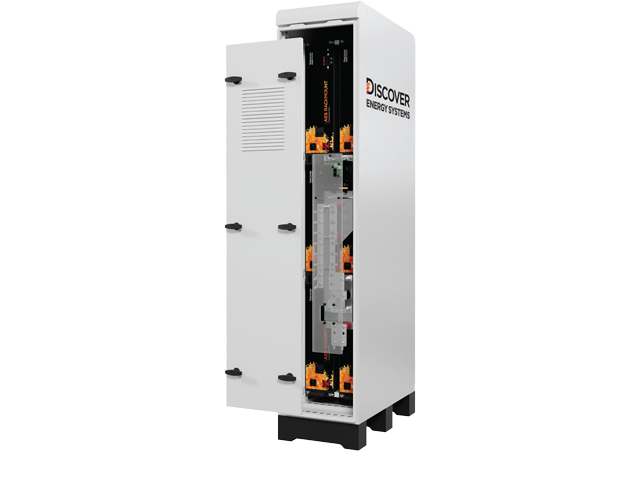

The Discover AES RACKMOUNT Slimline Enclosure
Introducing the Discover AES RACKMOUNT Slimline Enclosure (Model #: 950-0053), a cost-effective and space-saving solution for off-grid solar and whole home backup power applications. This pre-assembled enclosure is designed for both indoor and outdoor use, making it a versatile choice for a wide range of installations.
The AES RACKMOUNT Slimline Enclosure can accommodate up to six AES RACKMOUNT Battery Modules, providing a maximum storage capacity of 30 kWh in a single enclosure. For even greater energy storage needs, up to six Slimline Enclosures can be connected in parallel, allowing for an impressive 180 kWh of total capacity.
Maximize AES RACKMOUNT performance by enabling dynamic BMS optimization of popular hybrid inverter-chargers, including Schneider, Victron, Sol-Ark, SMA, and Studer.
AES RACKMOUNT Slimline Enclosure Features
- NEMA 3R / IP 54 rated for indoor and outdoor use
- Free-standing or pad-mountable
- Compatible with AES RACKMOUNT Battery Module 5kWh 100Ah
- Houses up to six battery modules (30 kWh) in a single enclosure
- Parallel configuration of up to six enclosures (180 kWh)
- Compact footprint: 1695.5 mm (H) x 350 mm (W) x 680 mm (D)
AES RACKMOUNT Slimline Enclosure Benefits
The AES RACKMOUNT Slimline Enclosure offers a convenient solution for installation, providing economical and fast setup that won't eat into valuable time or resources. Its compact design also means it takes up less space, making it perfect for applications where every inch counts.
- Certified to UL 9540 DC ESS for safety and reliability
- Closed-loop communication with optional LYNK II Gateway for advanced integration.
Discover AES Rackmount Slimline Enclosure Review
The Discover AES RACKMOUNT Slimline Enclosure is an excellent choice for those seeking a reliable and efficient energy storage solution for their off-grid solar or whole home backup power system. With its compact design and pre-assembled components, the Slimline Enclosure streamlines the installation process, saving time and money.
One of the standout features of this enclosure is its ability to parallel up to six units, allowing for a maximum energy storage capacity of 180 kWh. This scalability makes it an ideal solution for larger installations or for those who anticipate their energy storage needs growing over time.
Learn More about What Comes With The AES Rackmount Slimline Enclosure!
AES Rackmount Slimline Enclosure Components

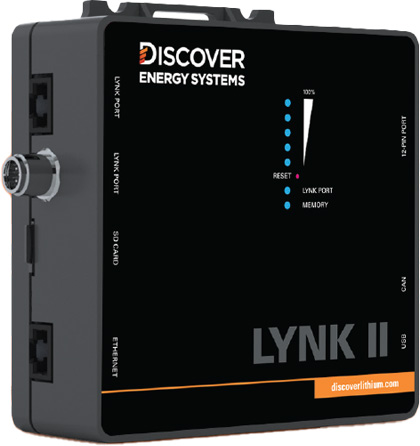

AES RACKMOUNT LYNK II Gateway
950-0025
The LYNK II - 950-0025 unlocks the full potential of an AES RACKMOUNT LiFePO4 Solar Stationary battery by enabling the BMS to optimize and dynamically manage the charge configurations of industry-leading chargers and inverter-chargers. It facilitates real-time closed-loop communication between multiple batteries and chargers.
AES RACKMOUNT Battery Module Combiner
950-0049
The AES RACKMOUNT Battery Module Combiner 950-0049 allows for paralleling up to six AES RACKMOUNT Battery Modules. It comes fully assembled with a 19-inch rackmount enclosure, six quick-connect fused battery cable sets, a master double pole disconnect breaker, and a single button power off feature for added convenience and safety.
AES RACKMOUNT Quick Stack Rack
950-0050
The AES RACKMOUNT Quick Stack Rack 950-0050 is an open battery stacking system that is flexible, secure, and can be set up in just a few minutes. It can accommodate up to six battery modules and a battery module combiner, with interlocking brackets that require no tools. The rack facilitates air gaps between batteries to reduce heat transfer.
AES Rackmount Slimline Enclosure Compatible Batteries Available at Solar Electric Supply
Have questions or need a Quote?
Our expert team is here to help you with any inquiries related to Discover AES RACKMOUNT Batteries or the AES Rackmount Slimline Enclosure.
