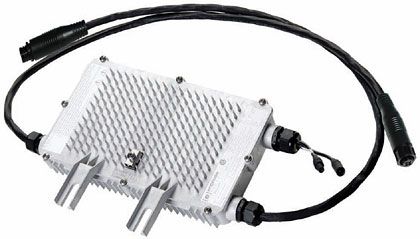

Enphase M175-24-208-S01/2 Solar Grid-Tie Inverter

SKU M175-24-208
Attachments Details
175W Output for 24V (Nominal) Modules
Input Data (DC)
Model M175-24-208
Recommended input power (STC) 210W
Maximum input DC voltage 54V
Peak power tracking voltage 25V-40V
Max. DC short circuit current 10A
Max. input current 8A
Output Data
Maximum output power 175W
Nominal output current 840mA
Nominal voltage/range 208V/183V-229V
Extended voltage/range 208V/179V-232V
Nominal frequency/range 60.0/59.3-60.5
Extended frequency/range 60.0/59.2-60.6
Power factor >0.95
Maximum units per branch 24
Efficiency
Peak inverter efficiency 95%
CEC weighted efficiency 94.5%
Nominal MPP tracking 99.6%
Mechanical Data
Operating temperature range -13°F to 149°F
Night time power consumption 560mW
Dimensions (WxHxD) 10.5" x 5.5" x 1.5"
Weight 4.0 lbs
Cooling Natural Convection - No Fans
Enclosure environmental rating Outdoor - Nema 6
Features
Connection MC1 or MC4 (Solarline 2) Cables
(Model Specific)
Communication Powerline
Warranty 15 Years
Compliance FCC Part 15 Class B

Can these Enphase solar inverters be used in both Residential and Commercial solar deployments?
Yes. Enphase micro-inverters are designed for 240VAC residential, as well as 208VAC three-phase service.

What solar modules are the Enphase Micro-inverters compatible with?
The Enphase Micro-inverters (Model M200 240V and Model M200 208V) are designed to work with solar modules up to 65V input.

Other documents, including user manuals are available at: http://www.enphaseenergy.com/support/downloads.cfm

Other Enphase Options:

communication gatewayCommunications Gateway

The module performance information generated by each Micro-inverter is collected by the Enphase communications gateway called the Energy Management Unit (EMU). The Envoy EMU then transmits this data over a broadband internet connection to the Enphase Enlighten website.

Enlighten The Enphase Enlighten website analyzes the per-module data collected by each Micro-inverter. Enlighten automatically detects any shortfall in energy production, identifies possible causes, and suggests solutions to correct the problem. The Enphase Enlighten website is constantly monitoring and managing every module on every installation.
