Fronius Primo GEN24 208-240 10.0

AC Rated Power	10,000 W (9,450 W at 208 VAC)
Max. Output Power	10,000 VA (9,450 VA at 208 VAC)
Nominal AC Voltage Range	208 V / 220 V / 240 V
Max. Input Voltage	600 V
MPP Voltage Range	260 - 480 V
Number of MPP Trackers	2
Max. Input Current (MPPT1 / MPPT2)	22 A / 22 A
Max. Short Circuit Current (MPPT1 / MPPT2)	41.25 A / 36 A
Max. Efficiency	97.5%
CEC Efficiency	97%
Dimensions (HxWxD)	23.0 x 20.8 x 7.1 inches
Weight	45.97 lbs

Image showing residential home w/ solar array on roof

Residential Solar Systems Prices

Roof Mount Systems

Ground Mount Systems

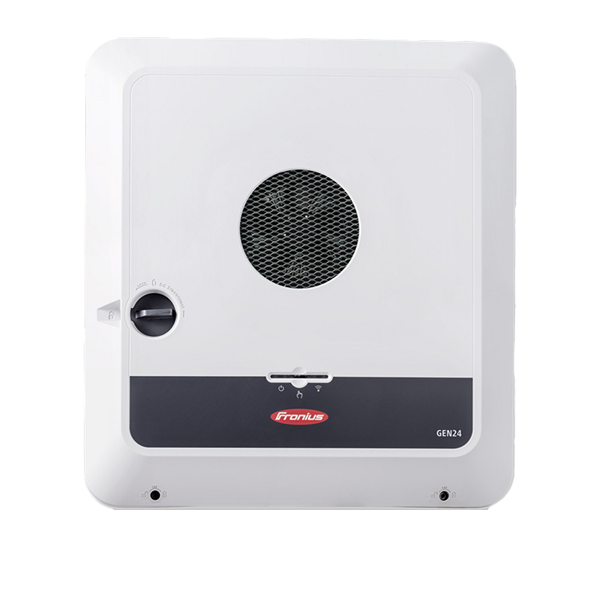

Fronius Primo GEN24 208-240 10.0 kW Inverter

Name: Fronius Primo GEN24 208-240 10.0 kW Inverter
SKU: PRIMO-GEN24-10-208-240

SKU PRIMO-GEN24-10-208-240

The Fronius Primo GEN24 208-240 10.0 kW inverter is a high-performance solution for large residential solar energy systems. This single-phase inverter combines substantial energy production capacity with advanced features, making it an excellent choice for homeowners with significant energy needs who are looking to maximize their energy independence.

Engineered for versatility and power, the Fronius Primo GEN24 208-240 10.0 kW inverter easily adapts to various roof layouts and solar panel configurations. Its integrated features, including sophisticated shade management and basic backup power, offer a comprehensive solar solution for modern homes with high energy demands.

Fronius Primo GEN24 10.0 Features

Dynamic Peak Manager: Enhances solar yields at the string level, minimizing the need for expensive module-level power optimizers.
PV Point Backup Power: Provides a dedicated outlet for backup power during grid outages, ensuring essential devices remain powered when sunlight is available.

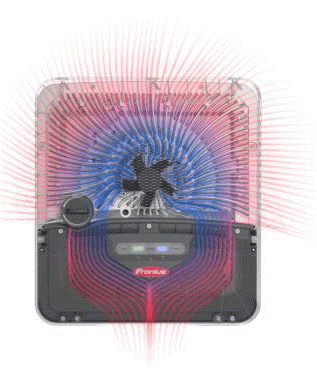

Active Cooling Technology: Protects internal components from heat, extending the inverter's lifespan and maintaining high efficiency.
SuperFlex Design: Allows for versatile PV module arrangements, making it suitable for complex roof structures and varied panel orientations.
Built-in Longevity: Robust construction and advanced cooling ensure a long service life, securing your solar investment.

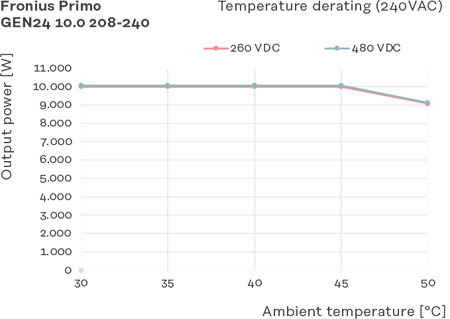

Impressive Thermal Performance

This inverter maintains its full 10,000-watt output power from 30°C to 45°C (86°F to 113°F) at both 260 VDC and 480 VDC input voltages. Above 45°C, there's a slight derating, with output power decreasing to approximately 9,200 watts at 50°C (122°F) for both voltage inputs.

Primo GEN24 208-240 6.0 Temperature Derating Chart

Attachments Details

Fronius Primo GEN24 208-240 10.0 String Inverter Review

The Fronius Primo GEN24 208-240 10.0 kW inverter is a versatile component for large residential solar systems. Its dual MPP trackers and wide voltage range accommodate diverse panel types and complex roof configurations. The integrated PV Point feature provides valuable backup power, addressing homeowners' concerns about grid reliability and energy independence in high-capacity systems.

At Solar Electric Supply, we are committed to offering high-quality solar products to our customers. The Fronius Primo GEN24 series, manufactured in Austria, exemplifies this commitment through its durable design and thoughtful features. Compatibility with Fronius Solar.web monitoring allows users to easily track system performance, ensuring optimal energy production and providing peace of mind for our customers, even with larger, more complex solar installations.
