Fronius Primo GEN24 208-240 5.0

AC Rated Power	5,000 W
Max. Output Power	5,000 VA
Nominal AC Voltage Range	208 V / 220 V / 240 V
Max. Input Voltage	600 V
MPP Voltage Range	200 - 480 V
Number of MPP Trackers	2
Max. Input Current per MPPT	22 A
Max. Efficiency	97.6%
CEC Efficiency	97%
Dimensions (HxWxD)	20.4 x 18.7 x 6.5 inches
Weight	33.24 lbs
Protection Class	Type 4X

Image showing residential home w/ solar array on roof

Residential Solar Systems Prices

Roof Mount Systems

Ground Mount Systems

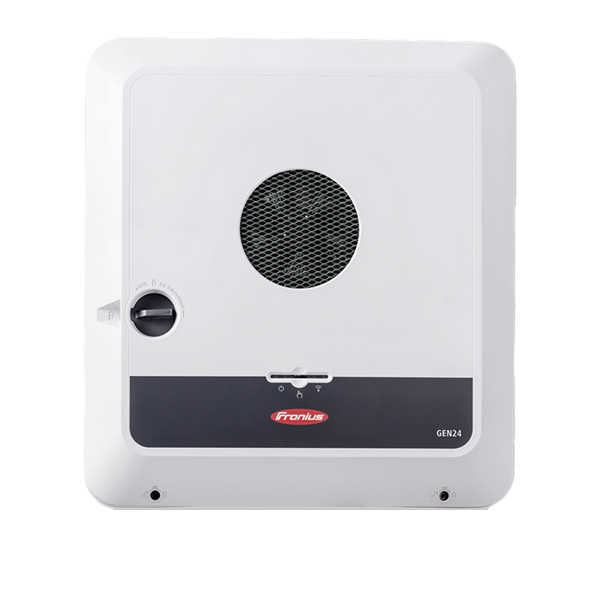

Fronius Primo GEN24 208-240 5.0 kW Inverter

Name: Fronius Primo GEN24 208-240 5.0 kW Inverter
SKU: PRIMO-GEN24-5.0-208-240

SKU PRIMO-GEN24-5.0-208-240

The Fronius Primo GEN24 208-240 5.0 kW inverter is a practical solution for residential solar energy systems. This single-phase inverter combines efficient energy production with smart features, making it an excellent choice for homeowners looking to enhance their energy independence.

Designed for versatility, the Fronius Primo GEN24 208-240 5.0 kW inverter adapts well to various roof configurations and solar panel setups. Its integrated features, including advanced shade management and basic backup power, provide a comprehensive solar solution for modern homes.

Fronius Primo GEN24 5.0 Features

Dynamic Peak Manager: Optimizes PV yields at the string level, eliminating the need for expensive module-level optimization components.
PV Point Backup Power: Provides a designated socket for backup power during grid outages, ensuring essential devices stay powered when the sun is shining.
Active Cooling Technology: Effectively safeguards electrical components, protecting them from heat development and extending the inverter's service life.
SuperFlex Design: Allows for flexible PV module alignment and string configurations, making it ideal for complex roof situations.
Built-in Longevity: Robust construction and advanced cooling ensure a long service life, securing your solar investment.

Robust Temperature Performance

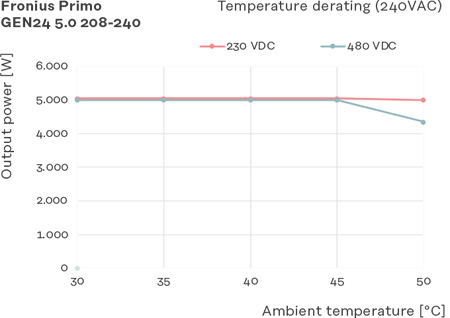

The Fronius Primo GEN24 5.0 208-240 inverter demonstrates strong thermal resilience. This Inverter maintains its full 5,000-watt output power from 30°C to 45°C (86°F to 113°F) at both 230 VDC and 480 VDC input. Above 45°C, the inverter exhibits minimal derating, with the 480 VDC input showing a slight decrease to about 4,300 watts at 50°C (122°F).

Primo GEN24 208-240 5.0 Temperature Derating Chart

Attachments Details

Fronius Primo GEN24 208-240 5.0 String Inverter Review

The Fronius Primo GEN24 208-240 5.0 kW inverter is a versatile component for medium-sized residential solar systems. Its dual MPP trackers and wide voltage range accommodate various panel types and roof configurations. The integrated PV Point feature provides valuable backup power, addressing homeowners' concerns about grid reliability.

At Solar Electric Supply, we focus on providing high-quality solar products to our customers. The Fronius Primo GEN24 series, manufactured in Austria, exemplifies this commitment through its durable design and thoughtful features. Compatibility with Fronius Solar.web monitoring allows users to easily track system performance, ensuring optimal energy production and providing peace of mind for our customers.
