Fronius Primo GEN24 208-240 7.7

AC Rated Power	7,680 W
Max. Output Power	7,680 VA
Nominal AC Voltage Range	208 V / 220 V / 240 V
Max. Input Voltage	600 V
MPP Voltage Range	260 - 480 V
Number of MPP Trackers	2
Max. Input Current (Per MPPT)	22 A
Max. Short Circuit Current (Per MPPT)	41.25 A / 36 A
Max. Efficiency	97.5%
CEC Efficiency	96.5%
Dimensions (HxWxD)	23.0 x 20.8 x 7.1 inches
Weight	45.97 lbs

Image showing residential home w/ solar array on roof

Residential Solar Systems Prices

Roof Mount Systems

Ground Mount Systems

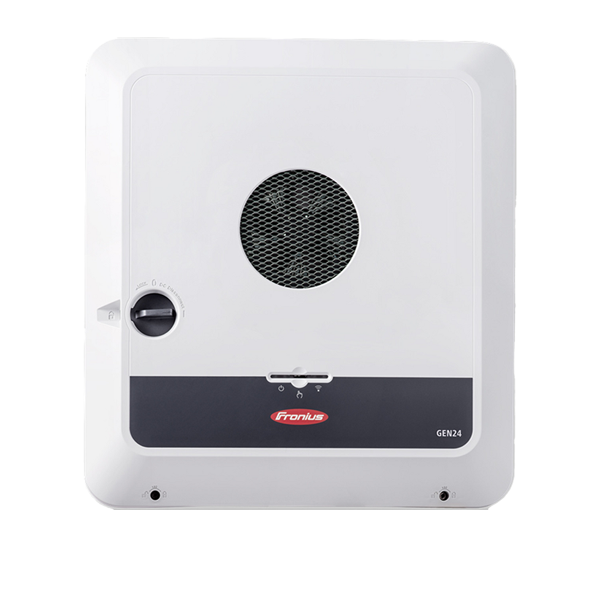

Fronius Primo GEN24 208-240 7.7 kW Inverter

Name: Fronius Primo GEN24 208-240 7.7 kW Inverter
SKU: PRIMO-GEN24-7.7-208-240

SKU PRIMO-GEN24-7.7-208-240

The Fronius Primo GEN24 208-240 7.7 kW inverter is a powerful solution for larger residential solar energy systems. This single-phase inverter combines high-capacity energy production with advanced features, making it an ideal choice for homeowners looking to maximize their energy independence.

Designed for versatility, the Fronius Primo GEN24 208-240 7.7 kW inverter adapts seamlessly to various roof layouts and solar panel configurations. Its integrated features, including sophisticated shade management and basic backup power, provide a comprehensive solar solution for modern homes with higher energy demands.

Fronius Primo GEN24 7.7 Features

Dynamic Peak Manager: Enhances solar yields at the string level, minimizing the need for expensive module-level power optimizers.
PV Point Backup Power: Provides a dedicated outlet for backup power during grid outages, ensuring essential devices remain powered when sunlight is available.
Active Cooling Technology: Protects internal components from heat, extending the inverter's lifespan and maintaining high efficiency.
SuperFlex Design: Allows for versatile PV module arrangements, making it suitable for complex roof structures and varied panel orientations.
Built-in Longevity: Robust construction and advanced cooling ensure a long service life, securing your solar investment.

Exceptional Temperature Stability

This inverter maintains its full 7,680-watt output power consistently across the entire temperature range from 30°C to 50°C (86°F to 122°F), for both 260 VDC and 480 VDC input voltages. This flat performance curve indicates superior thermal management, ensuring the inverter operates at peak efficiency even in extremely hot conditions.

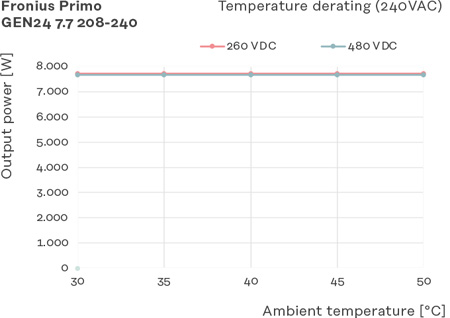

Primo GEN24 208-240 7.7 Temperature Derating Chart

Attachments Details

Fronius Primo GEN24 208-240 7.7 String Inverter Review

The Fronius Primo GEN24 208-240 7.7 kW inverter is a versatile component for larger residential solar systems. Its dual MPP trackers and wide voltage range accommodate various panel types and roof configurations. The integrated PV Point feature provides valuable backup power, addressing homeowners' concerns about grid reliability and energy independence in higher-capacity systems.

At Solar Electric Supply, we focus on providing high-quality solar products to our customers. The Fronius Primo GEN24 series, manufactured in Austria, exemplifies this commitment through its durable design and thoughtful features. Compatibility with Fronius Solar.web monitoring allows users to easily track system performance, ensuring optimal energy production and providing peace of mind for our customers, even with larger solar installations.
