| GNB Part # | 3-100G15 |
| GP Module Type | 100 |
| Volts | 6 |
| Capacity (AHr) 100-hr. rate | 920 |
| Dimensions (in.) LxHxD | 22.18 x 8.59 x 26.38 |
| Weight (lbs.) | 374 |
| * Includes 77 mm (3") additional for Module Cover Assembly. For V-0 models, add a V suffix (example 3-100G33V). If questions arise, contact us for clarification. |
|
Call our GNB Experts for advice and |

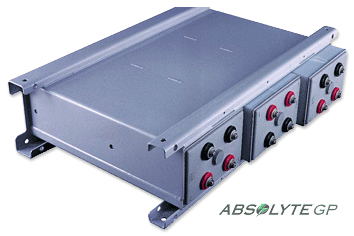

GNB Absolyte GP 3-100G15 6 Volt Sealed Battery Module
SKU 3-100G15
GNB Absolyte GP 3-100G15 6 Volt Sealed Battery Module
 2 Volt Battery Cells shown in a Rapid Deployment Solar System |
The Absolyte GP sealed VRLA AGM industrial grade batteries are ideal for solar power systems and other alternative energy applications including:
- Residential off-grid and grid-tied/AC coupled solar PV systems
- Microgrid hybrid diesel genset solar systems
- Telecommunication sites
- Uninterruptible power systems
- Switchgear and control
- Utility load levelling
Detailed Review
 Stackable Modules |
- Electrolyte – 1.310 specific gravity acid (nominal).
- Safety vent – 3-10 psi opening pressure, self-resealing.
- Terminals – Solid copper insert.
- Positive plate – Patented lead calcium tin silver alloy.
- Negative plate – Lead calcium grid alloy.
- 20 years design life in float applications at 25°C (77°F)
- 1200 cycles to 80% DOD at 25°C (77°F)
- Operating temperature – Temperature excursions between -40°C (-40°F) to +50°C (122°F) allowed (battery performance and life will be affected).
- Self-discharge – 0.5 to 1% per week maximum @ 25°C (77°F).
- Float voltage – 2.23 to 2.27 VPC.
- Container and Cover - Polypropylene is standard.
- Flame retardant, UL94 V-0/28% L.O.I. is optional.
 Solar Electric Supply Inc. is an Authorized Distributor for GNB Exide. The largest battery manufacturer in the world. |
|
||||
