Stack'd Series 24 kWh Battery System
| Total Energy | 24 kWh |
| Continuous Power Output | 14.4 kW |
| Surge Power (10s) | 24 kW |
| Nominal DC Voltage | 48V |
| DC Voltage Range | 46-56V |
| Max. Charge Current | 300A |
| Max. Continuous Discharge Current | 300A |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| Dimensions (W x D x H) | 29" x 15.8" x 41" |
| Weight | 628 lbs |
| Operating Temperature Range | 32°F to 113°F (0°C to 45°C) |
| Enclosure Rating | IP55 |
Bundle Your Homegrid Stack with a Sol-Ark Limitless 15K-LV Today!

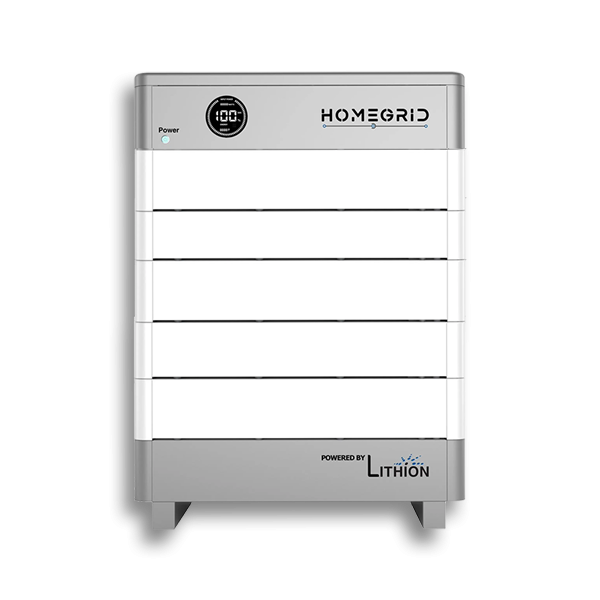

Homegrid Stack'd Series 24 kWh LFP Battery System
SKU HG-STACK-24-BAT-SYSTEM
24 kWh LFP Modular Home Battery
The Homegrid Stack'd Series 24 kWh Battery System represents a high-capacity energy storage solution for residential applications. This system integrates five 4.8 kWh LFP (Lithium Iron Phosphate) modules to provide substantial storage capacity and robust power output for demanding household energy needs.
Designed to support energy-intensive homes, the Stack'd Series 24 kWh configuration delivers 14.4 kW of continuous power output. It excels in applications such as whole-home backup, optimizing solar energy consumption, and managing electricity usage during peak rate periods. The system's modular architecture ensures scalability and easy expansion to meet evolving energy requirements.
Homegrid Stack'd 24 kWh System Features
- Extensive Capacity: 24 kWh storage capacity supports prolonged power backup and comprehensive energy management.
- High Power Output: 14.4 kW continuous power and 24 kW surge capacity handle demanding household loads with ease.
- Scalable Solution: Modular design allows for future expansion up to 38.4 kWh per stack.
- Advanced Safety: LFP chemistry offers superior thermal stability and extended cycle life.
- Smart Energy Management: Integrated BMS and mobile app provide real-time monitoring and optimization capabilities.
- Flexible Integration: Compatible with leading inverter brands for seamless incorporation into various solar system configurations.
Homegrid Stack'd Series Accessories
BMS/Base HG-MC100-200M2
4.8kWh Module HG-FS48100-15OSJ1-H
4.8kWh LFP Module w/ Heating Feature
Stack'd Series Outdoor Case 4000048
Homegrid Stack'd Series 24 kWh Stack Review
The Homegrid Stack'd Series 24 kWh Battery System sets a high standard for residential energy storage, offering a solution tailored for homes with substantial power demands. Its configuration of five 4.8 kWh LFP modules provides an impressive 24 kWh of storage capacity, coupled with a robust 14.4 kW continuous power output. This combination makes it exceptionally well-suited for whole-home backup scenarios, even in larger residences. The system's 24 kW surge capacity ensures it can handle high-power appliances and equipment during peak usage or extended power outages.
Homegrid's commitment to flexibility and user-centric design is evident in the 24 kWh Stack'd Series. The system's modular nature allows homeowners to start with a substantial 24 kWh capacity and easily expand up to 38.4 kWh per stack, accommodating growing energy needs. This scalability, combined with its compatibility across various inverter brands, positions it as a versatile choice for both new installations and system upgrades. The inclusion of real-time monitoring capabilities via a mobile app empowers users to fine-tune their energy consumption and storage strategies, potentially leading to significant cost savings over time.
Single Stack Install Tutorial
