Homegrid 33.6 kWh Battery System
| Total Energy | 33.6 kWh |
| Continuous Power Output | 14.4 kW |
| Surge Power (10s) | 24 kW |
| Nominal DC Voltage | 48V |
| DC Voltage Range | 46-56V |
| Max. Charge Current | 300A |
| Max. Continuous Discharge Current | 300A |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| Dimensions (W x D x H) | 29" x 15.8" x 51.5" |
| Weight | 844 lbs |
| Operating Temperature Range | 32°F to 113°F (0°C to 45°C) |
| Enclosure Rating | IP55 |
Bundle Your Homegrid Stack with a Sol-Ark Limitless 15K-LV Today!

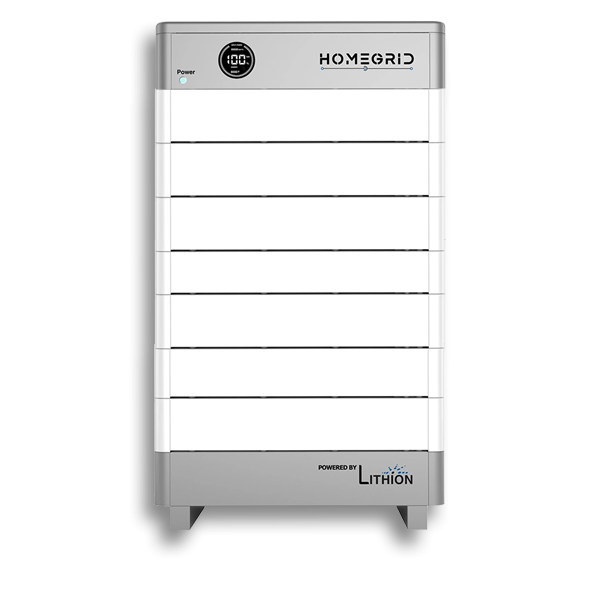

Homegrid Stack'd Series 33.6 kWh LFP Battery System
SKU HG-STACK-33.6-BAT-SYSTEM
33.6 kWh LFP Modular Home Battery
The Homegrid Stack'd Series 33.6 kWh Battery System represents a premium energy storage solution for larger residential and small commercial properties. This advanced system integrates seven 4.8 kWh LFP (Lithium Iron Phosphate) modules to deliver exceptional storage capacity and consistent power output for high-demand energy scenarios.
Designed to support properties with substantial energy requirements, the Stack'd Series 33.6 kWh configuration provides 14.4 kW of continuous power output. It is ideal for applications such as whole-property backup, maximizing solar energy utilization, and efficiently managing electricity consumption during peak rate hours. The system's modular design allows for easy expansion, ensuring it can adapt to future energy needs.
Stack'd Series 33.6 kWh System Features
- High Capacity: 33.6 kWh storage capacity supports extended power backup and efficient energy management for larger properties.
- Powerful Output: 14.4 kW continuous power and 24 kW surge capacity handle demanding loads in homes and small businesses.
- Expandable Design: Modular system allows for easy capacity increases up to 38.4 kWh per stack.
- Enhanced Safety: LFP chemistry provides superior thermal stability and longer cycle life.
- Intelligent Control: Advanced BMS and mobile app offer real-time monitoring and energy optimization for large-scale systems.
- Versatile Integration: Compatible with leading inverter brands for seamless incorporation into various solar setups.
Homegrid Stack'd Series Accessories
BMS/Base HG-MC100-200M2
4.8kWh Module HG-FS48100-15OSJ1-H

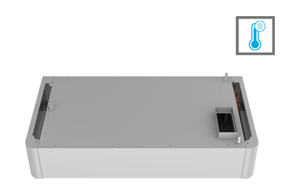

4.8kWh LFP Module w/ Heating Feature
Stack'd Series Outdoor Case 4000048
Homegrid Stack'd Series 33.6 kWh Stack Review
The Homegrid Stack'd Series 33.6 kWh Battery System stands out as a premium solution in the residential and small commercial energy storage market. Incorporating seven 4.8 kWh LFP modules, this system delivers an impressive 33.6 kWh of storage capacity while maintaining a powerful 14.4 kW continuous output. This configuration is ideally suited for larger properties with high energy demands, offering extended periods of backup power and sophisticated energy management capabilities.
Homegrid's commitment to flexibility and future-proofing is evident in the design of the 33.6 kWh Stack'd Series. Despite its already substantial capacity, the system retains the ability to expand up to 38.4 kWh per stack, catering to evolving energy needs. This scalability, combined with broad inverter compatibility, positions it as a versatile and long-term energy solution. The integrated Battery Management System and user-friendly mobile app provide property owners with unprecedented control over their energy consumption, enabling data-driven decisions to optimize usage and potentially reduce costs.
Single Stack Install Tutorial
