Jinko Eagle 72 JKM410M-72HL-V G2 410W Solar Panel - Low Price

410W
144 Half Cut
Diamond
Mono PERC

EAGLE 72 HM G2 410

Jinko Solar Model Number	JKM410M-72HL-V
STC Rating	410.0 Watts
PTC Rating	377.2
Open Circuit Voltage (Voc)	50.4 Volts
Short Circuit Current (Isc)	10.60 Amps
Frame Color	Silver
Origin	USA
Power Tolerance	-0 / +3%
Module Efficiency	20.38%
Area	21.66 ft²
Weight	49.6 lbs.
Length	79.06 in.
Width	39.45 in.
Height	1.57 in.

Commercial Solar Systems

Jinko Eagle 72 JKM410M-72HL-V G2 410W Solar Panel

Name: Jinko Eagle 72 JKM410M-72HL-V G2 410W Solar Panel
SKU: JKM410M-72HL-V

SKU JKM410M-72HL-V

Jinko Eagle 72 JKM410M-72HL-V G2 410W Solar Panel

The Jinko Solar Eagle G2 JKM410M-72HL-V HM solar panel features 144 5-busbar Diamond Mono PERC half-cells that are PID Free and shade tolerant. They are certified for high snow (5400Pa) and wind (2400Pa) loads and have an IP67 Rated Junction Box for longevity in outdoor environments. Featuring High-voltage 1500V capability with UL & IEC certification, you can run longer strings with lower balance of system costs and better LCOE.

Jinko Eagle 72 HM 410 G2 solar panels include a 10-year workmanship warranty and a 25-year linear power warranty.

Jinko Eagle JKM410-72HL-V Benefits

The JKM410M-72HL-V is suitable for commercial rooftop and ground mounted solar systems.

144 high-performance Diamond 5-busbar mono PERC half-cells
UL and IEC 1500V certified; lowers BOS costs and yields better LCOE
Reinforced cells prevent PID
Excellent performance in low-light environments
Certified for high snow and wind loads

Half Cell Modules

Eagle G2 JKM410M-72HL-V modules consist of half-cut Diamond cells. These uniquely designed cells feature high-efficiency mono PERC technology. Half cell modules have twin arrays and thus increased tolerance to shade. There’s also less current loss, for higher module power.

DuPont™ Tedlar^® Backsheet

Jinko Solar has a strategic relationship with DuPont™, the inventor of Kevlar, to incorporate its strong, durable Tedlar^® material into every one of Jinko's Eagle G2 module backsheets. Tedlar is the only material proven to last more than 30 years in the field. Because backsheet failures represent a large problem in the field, many customers insist on Jinko Solar due to the proven materials they use.

Jinko Eagle 72 solar panel certifications

Jinko Solar Eagle 72 HM G2 Certifications

ISO9001:2008 Quality Standards
ISO14001:2004 Environmental Standards
OHSAS18001 Occupational Health & Safety Standards
IEC61215, IEC61730 certified
UL1703 certified
Module Fire Performance Type 1 (UL 1703)

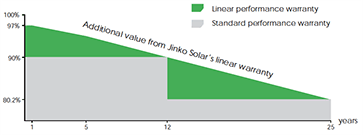

JKM410M-72HL-V Warranty

10 Year Workmanship Warranty

25 Year Linear Power Warranty

Attachments Details

Jinko Eagle 72 410W G2 Mono PERC Solar Module Review

Diamond Cell Technology

Uniquely designed high performance 5 busbar mono PERC half cell.

High Voltage 1500V

UL and IEC 1500V certified; lowers BOS costs and yields better LCOE.

Higher Module Power

Decrease in current loss yields higher module efficiency.

Shade Tolerance

More shade tolerance due to twin arrays.

PID FREE

Reinforced cell prevents potential induced degradation.

Strength & Durability

Certified for high snow (5400Pa) and wind (2400 Pa) loads.
