Model Number KD235GX-LB
STC Rating 235.0
PTC Rating 212.6
Open Circuit Voltage (V) 36.9
Short Circuit Current (A) 8.55
Frame Color Black
Origin US/Mexico
Power % ± -3/5
(W/ft²) 13.27
Area (ft²) 17.7
Weight (lbs) 46.3
Length (in) 65.43
Width (in) 38.98
Height (in) 1.40

Kyocera KD235GX-LB Solar Panels

KYOCERA's Advanced Cell Processing

This technology and automated production facilities have produced a multi-crystalline solar cell with an efficiency of over 16%. All modules are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the severest environmental conditions.The entire laminate is framed in a
heavy duty anodized aluminum frame to provide structural strength and ease of installation. Because KYOCERA modules are so efficient, less space is required than other solar modules of equal output.This translates to both more wattage per square foot and lower mounting structure cost.

KYOCERA has perfected its new surface treatment technology and is introducing it on a new line of modules named d.Blue, for its dark blue color.

The newly developed treatment method processes multi-crystalline silicon cells in order to produce a surface texture that minimizes surface reflectance and maximizes output.The result is a maximum conversion efficiency of 16%, one of the highest conversion efficiencies in the polycrystalline module industry.
d.Blue is ideal for installation in all types of systems, from residential grid-tie to SCADA and large
scale commercial systems.

D.Blue modules are available in the entire Kyocera line.
The KD205GX-LP features an industry high 20-year power output warranty

SKU KD235GX-LB
  • High efficiency multi-crystalline modules
  • The KD235GX-LB modules have a +5/-5% power tolerance
  • Cell Efficiency over 18.5%
  • UL listed
  • Low iron, tempered glass, EVA encapsulant and anodized aluminum frame construction
  • 20 year output warranty on all KD Series modules
  • Weather resistant junction box or Multi Contact connectors
Attachments Details

Made in the USA

The KD235 solar module is qualified for "Buy American" as these modules are made in the USA. They are manufactured in the Kyocera facility in San Diego, CA.

Cutting Edge Technology

As a pioneer with 35 years in solar, Kyocera demonstrates leadership in the development of solar energy products. Kyocera's Kaizen Philosophy, commitment to continuous improvement, is shown by repeatedly achieving world record cell efficiencies.

Kyocera Quality Built In

60 cell module for utility and commercial applications with silver anodized frame. Kyocera manufactures and assembles solar cells and modules at its own worldwide production sites using a true vertical integration process. This superior approach gives Kyocera complete control over every step of the manufacturing process, producing modules with the industry's tightest power tolerance, promising high quality and efficiency.

  • Highest Built-In Quality
  • Proven Superior Field Performance
  • 25 Year Warranty
  • 5 Year Workmanship Warranty
  • Kyocera's Most Powerful Module Manufactured
  • Requires an average 8” mounting clearance for optimal performance
  • Supported by most major mounting structure manufacturers
  • Easily accessible grounding points on all four corners for fast installation
  • Proven junction box technology with PV Wire
  • Quality locking plug-in connectors to provide safe and quick connections

Click here for complete solar grid-tie systems using this module.

NEC 2008 Compliant UL 1703, ISO 9001 and ISO 14001. Certified and Registered Class C
Design and specifications are subject to change without notice.

Specifications

Electrical Performance
Under Standard Test Conditions (*STC)
Maximum Power (Pmax)
235 W (+5W/-3W)
Maximum Power Voltage (Vmpp)
29.8V
Maximum Power Current (Impp)
7.89A
Open Circuit Voltage (Voc)
36.9V
Short Circuit Current (Isc)
8.55A
Max System Voltage
600V
Temperature Coefficient of Voc
—1.20x10-1 V/°C
Temperature Coefficient of Isc
5.27x10-3 A/°C

*STC: Irradiance 1000W/m2, AM 1.5
spectrum cell temperature 25°C
Cells
Number per Module
60
Module Characteristics
Length x Width x Depth
1682mm x 990mm x 46mm (65.4" x 39.0" x 1.8")
Weight
21kg (46.3lbs)
Cable
(+)760mm (-)1840mm ((+)29.9" x (-)72.4")
Junction Box Characteristics
Length x Width x Depth
105mm x 108mm x 15mm (4.1" x 4.3" x .8")
IP Code
IP65
Dimensions (click for picture)

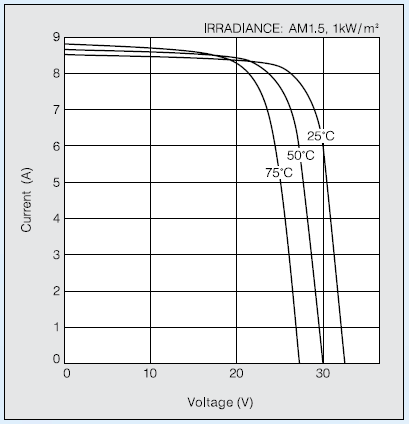

Current Voltage Characteristics of Photovoltaic Module Kyocera KD235GX-LB at Various Cell Temperatures Kyocera KD235GX-LB Dimensions - Front Kyocera KD235GX-LB Dimensions - Rear
Curves (click for picture)

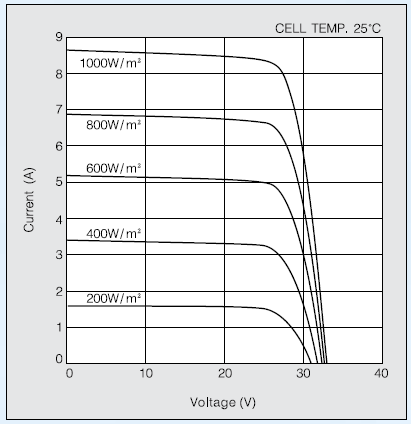

Current Voltage Characteristics of Photovoltaic Module Kyocera KD235GX-LB Current Voltage Characteristics of Photovoltaic Module Kyocera KD235GX-LB at Various Cell Irradiance Levels
Others
*Operating Temperature
-40 C ˜ 90°C
Maximum Fuse
15A

*This temperature is based on cell temperature.
