MAPPS Weatherproof NEMA 3R Two Group 31 Battery Enclosure

remote off-grid solar battery enclosures header

SES MAPPS Battery Enclosure
Model Number	AL-POL-2-G31N
Battery Compatibility	Supports up to 1-2 Group 31 batteries 1-2x 8G24 1-2x 8G27 1-2x 8G31
Mounting Method	Standard pole mount (up to 8") or optional wall mounting flange bracket
Enclosure Construction	NEMA 3R milled aluminum w/ stainless steel hinges and louvered vents
Dimensions	26.2"H, x 16.5"W x 10.6"D
Enclosure Weight	35 lbs.
Warranty	1 year limited warranty
Origin	USA
List Price	$702.30 $793.92 w/ white powder coat

Off-Grid Solar Panel Systems

MAPPS AL-POL-2-G31N Weatherproof NEMA 3R Battery Enclosure

Name: MAPPS AL-POL-2-G31N Weatherproof NEMA 3R Battery Enclosure
SKU: AL-POL-2-G31N
Price: 702.30 USD

SKU AL-POL-2-G31N

$702.30

battery enclosures for remote off-grid solar panel systems

Solar System Battery Enclosures

MAPPS AL-POL-2-G31N Weatherproof NEMA 3R Battery Enclosure

Industrial Strength · Durable Weatherproof Design

weatherproof NEMA 3R solar battery enclosure

Designed for long-life outdoors, the MAPPS AL-POL-2-G31N NEMA 3R Battery & Control Enclosure features mill finish aluminum and filtered vents (white polyester powder coating available). This weatherproof battery box holds up to two Group 31 sealed 12 volt batteries. A charge controller may be mounted and pre-wired on a 12" DIN rail with solar/battery/load breakers. Unistrut brackets for a pole/wall mount is included.

Off-Grid Battery Powered Applications

A wide variety of possible applications include: wireless communications, weather stations, solar call box, wireless smart meters, SCADA, telemetry, RFID, seismic sensors, wildlife monitoring, solar IP cameras and UPS battery backup systems.

AL-POL-2-G31N Battery Enclosure Details

The compression latch for locking includes a 5/16" and 1/4" shackle.

NEMA 3R design with filtered louver vents
Mill finish aluminum w/ color powder coat available
Stainless steel hinged doors
Dual compression latches, one for locking
2-piece pole clamps for up to 8" SCH40
Conduit knockouts for easy connections of grid, solar or loads
Flexible mounting options include a wall mounting flange bracket

MAPPS Battery Enclosure Options and Upgrades

Pre-wired charge controller available.

Removable radio shelf available
Powder Coated Finish white or custom color
DC to AC inverters pre-wired
DC to DC converters pre-wired
SunSaver or ProStar controllers pre-wired
2.5" W X 3.5" H backplate for controller, customer loads
POE's pre-wired and installed on backplate
Battery insulation kit for extreme temperatures

pole mounted wireless utility meter battery solar system

Over 20 Years of Remote Off-Grid Solar Experience

Solar Electric Supply's years of PV expertise allow us to offer a wide variety of time-tested heavy-duty aluminum outdoor rated battery enclosures for remote industrial applications including solar and UPS.

We offer enclosures for single and multiple batteries, solar controllers, DC to AC inverters, DC to DC converters, POE's and customer supplied loads.

Contact us toll-free: (877) 297-0014

Attachments Details

MAPPS AL-POL-2-G31N Battery & Control Enclosure Review

2 Group 31 battery solar enclosure system review

Using one Group 31 battery leaves plenty of room for electronic equipment.

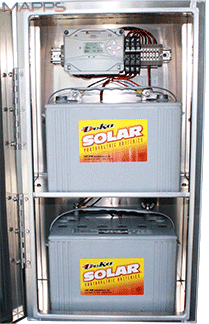

Two batteries may be mounted in the enclosure with a load control center.

The AL-POL-2-G31N features dual welded strut channels for attaching pipe clamps to various pole sizes.

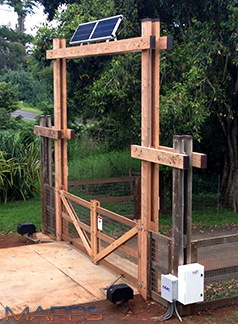

This 2-battery enclosure can be used for a variety of solar system projects.

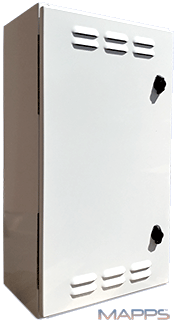

This pole-mounted enclosure has an optional white power coat.
