Morningstar Sunsaver SS-10-12V Charge Controller

SunSaver SS-10-12V PWM Solar Charge Controller (Gen 3) Rated up to 10 Amp PV charging current for 12 volt battery systems
Morningstar Model Number	SS-10-12V
Solar Charge Current Rating	10A
Nominal Battery Voltage	12V
Regulated Output Voltage	Sealed: 14.1 V Flooded: 14.4 V
Max. Solar Voltage	30 Volts
Self-Consumption	< 8 mA
Load In-rush Capability	65A
Dimensions	6" x 2.2" x 1.3"
Weight	8 oz.

Remote Solar Systems

Morningstar Sunsaver SS-10-12V Charge Controller for 12 Volt PV Systems

Name: Morningstar Sunsaver SS-10-12V Charge Controller for 12 Volt PV Systems
SKU: SS-10-12V

SKU SS-10-12V

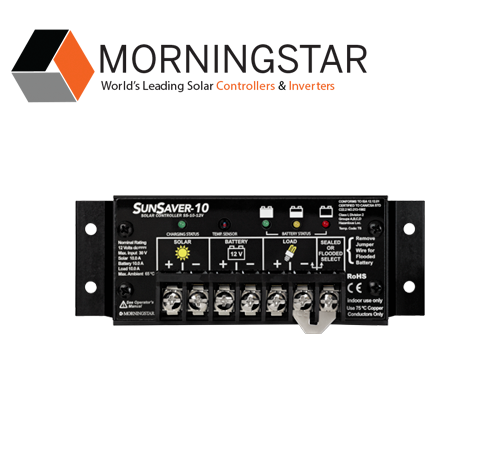

Morningstar SunSaver SS-10-12V Solar Charge Controller (Gen 3)

The Morningstar SunSaver SS-10-12V is a very reliable charge controller with the same battery charging algorithm as the ProStar that has been scaled down for smaller PV systems. This device includes a combination of features and capabilities not found in other small PV controllers.

This controller is rated for Hazardous Locations – Class 1, Division 2 (C1 D2 - Class I Div II) Groups A-D, making it the preferred choice for Oil & Gas applications. Class I, Division 2 certification permits use of an electrical device in an environment where explosive gases are periodically present. The Morningstar SunSaver SS-10-12 is C1D2 certified for systems that are properly wired per Division 2 NEC approved wiring methods.

Constant voltage PWM charging is a proven advancement compared to the common on/off PV regulators. SunSavers are field-selectable for sealed or flooded batteries. A rugged anodized aluminum case and epoxy-encapsulated electronics ensure durability and longevity. A temperature compensation sensor in the charge control varies full charge voltage with temperature. All Morningstar SunSaver controllers feature LED charging indicators.

SunSaver SS-10-12V Benefits

The SunSaver 10 features 4-stage PWM battery charging for optimum battery health.

• 100% solid state
• Series design (not shunt)
• True 0 to 100% PWM duty cycle
• Setpoint accuracy @ 12V: +/-25mV;
• Fully encapsulated in epoxy
• Marine rated terminals
• Anodized case
• Temperature compensation
• Sealed / Flooded battery select
• Parallel for 40 amps or more

SunSaver controllers are manufactured in a world class ISO certified facility. Morningstar uses automated production processes so every unit is exactly the same with parts soldered to .0006 inch accuracy. Anodized case, marine terminals and custom potting material is used for a controller that is built to last through everyday real world PV applications.

SunSaver SS-10-12 Warranty

All of Morningstar’s SunSaver charge controllers are warranted to be free from defects in material and workmanship for a period of FIVE (5) years from the date of shipment to the original end user. Morningstar will, at its option, repair or replace any such defective products.

Class 1 Division 2 Solar Systems

SunSaver 10 Certifications

• ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01
• Hazardous Locations:
Class 1, Division 2, Groups A,B,C,D, CSA C22.2#213
• EMC Directives:
Immunity, emissions, safety
• FCC Class B Part 15
• CE
• RoHS
• ISO 9000

Contact us toll-free: (877) 297-0014

Read more about Morningstar SunSaver charge controllers.

Attachments Details

MorningStar SunSaver SS-10-12V Detailed Review

Electrical

• Max. PV and load ratings: listed above
• System voltage: 12 volts nominal
• Min. battery voltage: 1 volt
• Regulation voltage
Sealed battery: 14.1 V
Flooded battery: 14.4 V
• Max. solar voltage: 30 volts
• Self-consumption: < 8 mA
• Voltage accuracy @ 12V: +/– 25 mV (typical)
• Transient surge protection: 1500W per connection

Mechanical

• Wire size: 5 mm2 / #10 AWG
• Weight (unpacked): 0.23kg / 8 oz.
• Dimensions: 6.0 x 2.2 x 1.3 inch

Environmental

• Ambient temperature: –40°C to +60°C
• Storage temperature: –55°C to +80°C
• Humidity: 100% non-condensing
• Tropicalization: Epoxy encapsulation, Marine rated terminals, Anodized aluminum case

SunSaver Class 1 Division 2 solar system enclosure photo

SunSaver system wiring photo of Class 1 Division 2 solar system enclosure.

Electronic Protections

• Solar: Overload, short-circuit, high voltage
• Load: Overload, short-circuit, high voltage
• Battery: High voltage
• All: Reverse polarity, high temperature, lightning
and transient surges
• Reverse current at night

Battery Charging

• Charging method: 4 stage series PWM
• Charging stages: Bulk, absorption, float, equalize
• Temperature compensation:
  Coefficient: –30mV/°C
  Range: –30°C to +60°C
  Set points: Absorption, float, equalize

LED Indications

• Status LED (1): Charging or not charging, Solar error conditions
• Battery LED’s (3): Battery level, Charging stage
