TS-MPPT-60-600V-48-DB Specifications
| Model # | TS-MPPT-60-600V-48-DB |
| Maximum Battery Current | 60A |
| Maximum Input Voltage | 600V |
| PV Array Voltage | 100 - 525 Voc |
| Disconnect Rating | 600V PV disconnect switch |
| Operating Power | 3200W |
| Peak Efficiency | 97.9% |
| Battery Voltage Range | 16-72V |
| Operating Temperature | -40°C to +45°C |
| Self-Consumption | 1.75-2.50W |
| Surge Protection | 4500W/port |
| Communication Ports | Ethernet, RS-232, EIA-485 |
| Warranty | 5 Years |
| Weight | 12.8 kg / 28.1 lbs |
| Enclosure Rating | Type 1 (IP20) |
Complete pre-assembled pad & pole mount solar systems
These Systems Are Perfect For:
UHF/VHF Radio, Seismic or Environmental Monitoring, Wireless Smart Meter Reading, RFID Sensor Detection, Climate Weather Monitoring, and more!

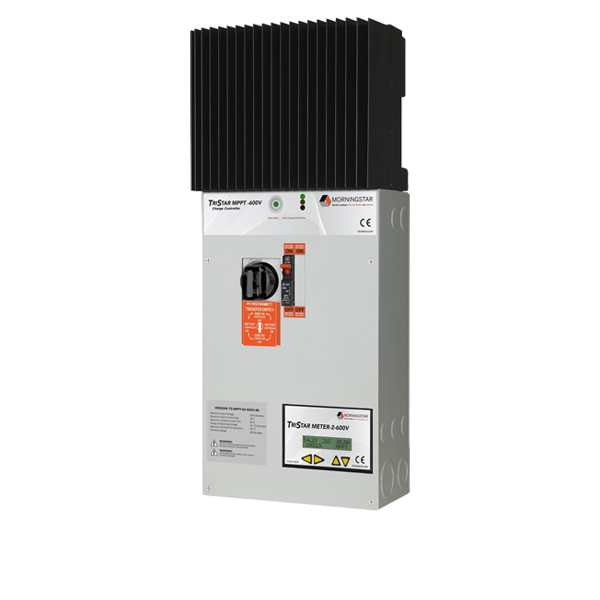

Morningstar TS-MPPT-60-600V-48-DB Solar Charge Controller
SKU TS-MPPT-60-600V-48-DB
Morningstar TRISTAR MPPT™ 600V With Disconnect Box
The Morningstar TS-MPPT-60-600V-48-DB combines a 600V solar charge controller with an integrated disconnect box. The pre-wired disconnect enclosure includes a 600V PV disconnect switch, battery breaker, and input/output bus bars, reducing installation time and improving system serviceability.
This model maintains the same 97.9% peak efficiency and 3200W power handling capability as the standard version, while adding convenient isolation points for maintenance. The integrated disconnect box simplifies code compliance and provides clear separation between high and low voltage sections.
TS-MPPT-60-600V-48-DB Benefits
- Simplified Maintenance: Factory-installed bus bars and breakers reduce installation time and potential wiring errors.
- High Voltage Capacity: Handles up to 600V input, enabling longer string lengths and reduced wire costs.
- Thermal Management: Fanless design maintains reliable operation from -40°C to +45°C without moving parts.
- System Protection: Integrated breakers and disconnects provide overcurrent and isolation protection.
- Monitoring Capability: Multiple communication ports enable remote system monitoring and control.
TRISTAR MPPT™ 600V Applications
- Off-grid solar power systems
- Telecom installations
- Remote monitoring stations
- Industrial solar applications
- Agricultural solar systems
- Grid-tied systems with battery backup
Morningstar TS-MPPT-60-600V-48-DB Solar Charge Controller Review
The Morningstar TS-MPPT-60-600V-48-DB builds on the standard model by adding an integrated disconnect box, providing convenient isolation points for both the PV array and battery connections. The pre-wired disconnects and bus bars simplify installation while meeting electrical code requirements. This integrated approach reduces the number of separate components needed, saving wall space and installation time.
The unit maintains all the core functionality of the standard model, including the fanless design and 97.9% peak efficiency. The added disconnect box increases the total weight to 12.8 kg and expands the dimensions to accommodate the additional components, but provides valuable safety and maintenance features. For installations where code compliance and serviceability are priorities, this model offers practical advantages over the standard version while delivering the same reliable charging performance.
