TRISTAR MPPT™ 600V Specifications
| Model # | TS-MPPT-60-600V-48: Standard |
| Maximum Battery Current | 60A |
| Maximum Input Voltage | 600V |
| PV Array Voltage | 100 - 525 Voc |
| Operating Power | 3200W |
| Peak Efficiency | 97.9% |
| Battery Voltage Range | 16-72V |
| Operating Temperature | -40°C to +45°C |
| Self-Consumption | 1.75-2.50W |
| Surge Protection | 4500W/port |
| Communication Ports | Ethernet, RS-232, EIA-485 |
| Warranty | 5 Years |
| Weight | 9.0 kg / 19.8 lbs |
| Enclosure Rating | Type 1 (IP20) |
Complete pre-assembled pad & pole mount solar systems
These Systems Are Perfect For:
UHF/VHF Radio, Seismic or Environmental Monitoring, Wireless Smart Meter Reading, RFID Sensor Detection, Climate Weather Monitoring, and more!

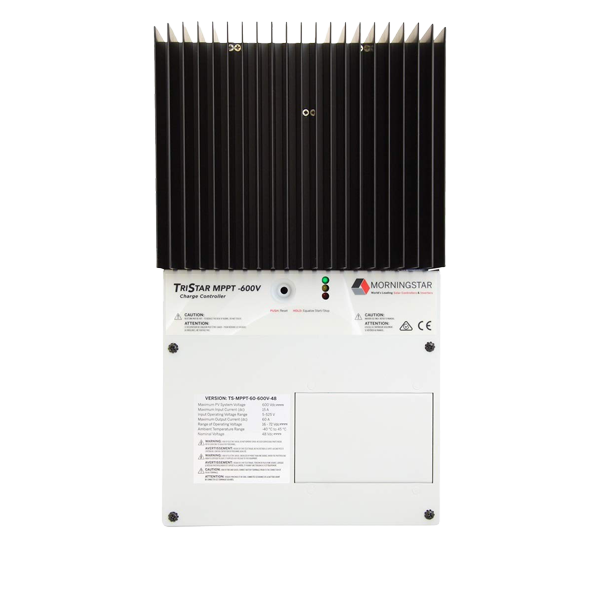

Morningstar TS-MPPT-60-600V-48 Solar Charge Controller
SKU TS-MPPT-60-600V-48
Morningstar TRISTAR MPPT™ 600V
The Morningstar TS-MPPT-60-600V-48 Solar Charge Controller operates at voltages up to 600V with 97.9% peak efficiency. This fanless controller handles up to 3200W of solar input power, making it practical for larger solar installations where longer string lengths are desired to reduce installation costs.
Built for reliability, this controller uses Morningstar's TrakStar MPPT technology and includes multiple protection systems. The fanless design eliminates moving parts while maintaining consistent performance in temperatures from -40°C to +45°C, suitable for various installation environments.
TRISTAR MPPT™ 600V Benefits & Features
- Maximum System Efficiency: 97.9% peak efficiency with TrakStar MPPT technology optimizes power conversion from high-voltage arrays to battery charging.
- Simplified Installation: Accepts up to 600V input, enabling longer string lengths and reduced wiring costs with fewer parallel connections.
- Enhanced Reliability: Fanless design eliminates moving parts and potential failure points, while epoxy-encapsulated components ensure durability.
- Flexible Configuration: Programmable for 24V, 36V, 48V, and 60V battery systems with customizable charging parameters.
- Advanced Communications: Multiple communication ports including Ethernet, RS-232, and EIA-485 with MODBUS protocol support.
TRISTAR MPPT™ 600V Applications
- Off-grid solar power systems
- Telecom installations
- Remote monitoring stations
- Industrial solar applications
- Agricultural solar systems
- Grid-tied systems with battery backup
Morningstar TS-MPPT-60-600V-48 Solar Charge Controller Review
The Morningstar TS-MPPT-60-600V-48 Solar Charge Controller sets a high standard in high-voltage solar charging technology. Its fanless design achieves remarkable efficiency without compromising reliability, demonstrating exceptional thermal management through advanced engineering. The controller's ability to handle 600V input while maintaining 97.9% peak efficiency makes it particularly valuable for installations requiring long wire runs or high-voltage arrays, effectively reducing system costs and installation complexity.
The controller's robust construction and comprehensive feature set address the demands of professional solar installations. With its advanced MPPT tracking algorithm, multiple communication options, and flexible programming capabilities, it provides precise control and monitoring of solar charging systems. The absence of cooling fans, combined with premium components and protective features, results in a highly reliable unit suited for remote locations and critical applications where maintenance access may be limited.
