SOLAR POWER FOR REMOTE APPLICATIONS |
|
| Model Number | MAPPS-570-530-24-POLE |
| Nominal System Voltage | 24 VDC |
| Solar PV Module |
3X SES 200J-V 24 Vdc 200 Watts ea. |
| Solar Module Certifications | UL 1703, Class 1 Division 2, Group A, B, C, D, Class C Fire Rating |
| PV Module Mount | SPM3-190 side of pole mount |
| Battery Type | 4X Deka Solar 8G8D Gel Cell |
| Battery Bank Capacity | 24V 530 Ahr at 100 hour discharge rate |
| Enclosure Model | 2X AL-POL-2-8G8DN |
| Enclosure Design | NEMA 3R |
| Charge Controller | ProStar 30M |
| Controller Certifications | ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01 |
| MAPPS System Weight w/ Batteries | 874 lbs. |
| Origin | USA |
| List Price | $12,819.00 |

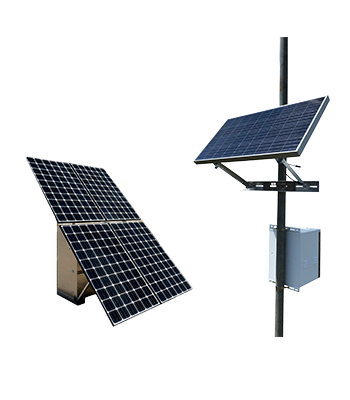

Check Out Our Full Selection of Pad & Pole Mounted Solar Systems
MAPPS 600W 24VDC 530Ahr Pole-Mounted Battery Enclosure Solar System
SKU MAPPS-570-530-24-POLEReliable Power Anywhere with Our 600W 530Ahr 24Vdc Pole-Mounted System
Designed for long life in
harsh weather climates.
When it comes to selecting a solar power system, MAPPS® is a standout choice with its robust features, superior reliability, and proven performance. Designed to deliver a sustainable power supply for any remote off-grid location, these systems are pre-wired, easy to install, and adaptable to an array of outdoor applications. MAPPS® systems are renowned for their reliability, cost-effectiveness, and low maintenance, providing a seamless solution to your diverse outdoor power needs.
MAPPS® systems are built tough, capable of withstanding the harshest weather conditions, from the cold of the North Slope of Alaska to the heat of the Arabian Desert. The photovoltaic modules used in these systems exceed Jet Propulsion Laboratory Block V durability tests, are UL listed, and rated for Class I Division II hazardous areas, ensuring a design life of 25 to 40 years.

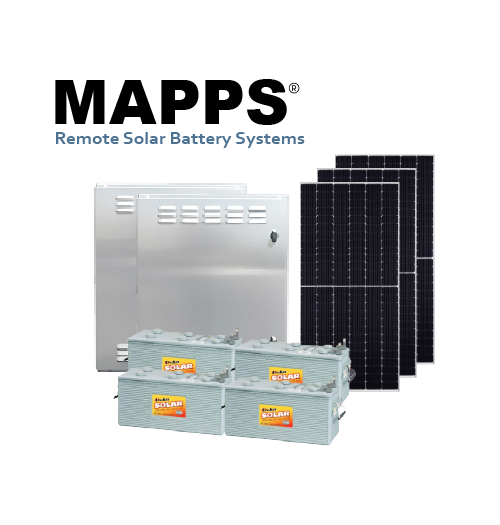

MAPPS-570-530-24 Solar Battery Systems Include
- 3x 200W 24Vdc SES 200J-V Solar Panel
- 2X NEMA 3R Outdoor Battery & Control Enclosure
- 4x Deka Solar 8G8D-HLT-DEKA Gel Cell Battery
- 1x SPM2-190 Side of Pole Mount
- Charge control load center with
pre-cut color coded wiring harness included. - Locking Compression Latches w/ 5/16" + 1/4" Shackles
Optional
- DC to DC converters for 12, 24, 48 VDC loads
- DC to AC inverter for 120 VAC loads
- Pre-wired PoE Power over Ethernet injectors
- Radio shelf for additional load equipment
- We can custom prewire many designs, CONTACT US today for details
MAPPS System Benefits
Reliable
Engineered with the industry's finest components, each element within the MAPPS® system undergoes thorough testing, ensuring reliability in even the harshest environments.
Cost-Effective
By eliminating the need for generators and trenching, the MAPPS® system offers a cost-effective solution for your power needs.
Easy Installation
The system comes pre-wired, making the installation process a breeze. Even the most remote off-grid sites can benefit from this user-friendly design.
UL Listed components
MAPPS® systems contain components that are UL listed, assuring safety and performance to the highest standards.
MAPPS® systems are made in the USA and qualify for Buy America programs
MAPPS Remote Pole-Mounted Solar Power System Applications
No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote off-grid solar project.
Solar battery powered examples can include:
|
|
With your solar powered application today! OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.
Toll-Free: (877) 297-0014
MAPPS 600W 24Vdc 530 AHr Battery Pole-Mounted Enclosure Solar Panel System Review
600W 530Ahr 24Vdc Pole Mounted Solar Panel Systems Include
MAPPS 400W 530Ahr 24v Pole Mount Enclosure Details
Need to purchase from your local electrical supply house?
Our MAPPS systems are available from these top distributors:.
Solar Electric Supply specializes in supplying dealer, contractor, government and industrial accounts worldwide with reliable, cost-effective Class 1 Division 2 solar electric power solutions.
Pole Mounted Solar Systems · Contractor Discounts Available
Contact us toll-free: (877) 297-0014 for expert assistance and wholesale prices for the SES MAPPS 600W 530Ahr 24 Volt Pole-Mounted Solar System with 4 batteries.
