Q CELLS Model Number	Q.PEAK DUO BLK-G6 340
STC Rating	340 Watts
PTC Rating	254.5
Open Circuit Voltage (Voc)	40.66 Volts
Short Circuit Current (Isc)	10.52 Amps
Frame Color	Black
Origin	USA
Power Tolerance	-0 / +5W
Module Efficiency	≥19.0%
Area	19.29 ft²
Weight	43.87 lbs.
Length	68.50 in.
Width	40.55 in.
Height	1.25 in.

Rooftop Mounted Solar Panel System Prices

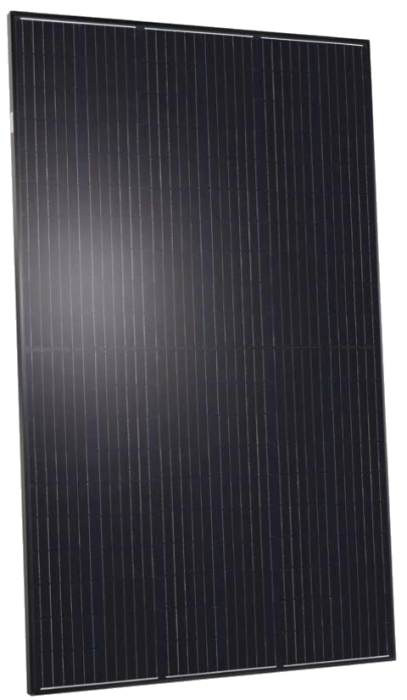

Q CELLS Q.PEAK DUO BLK-G6 340W Solar Panel

Name: Q CELLS Q.PEAK DUO BLK-G6 340W Solar Panel
SKU: q-cell-q.peak-duo-blk-g6-340w

SKU q-cell-q.peak-duo-blk-g6-340w

Q CELLS Q.PEAK DUO BLK-G6 340W Solar Panel

Q.PEAK DUO L-G7.2 silver frame with split solar panel cells

Black Frame

The Q CELLS high-performance module Q.PEAK DUO BLK-G6 is the ideal solution for commercial and utility applications thanks to a combination of its innovative cell technology Q.ANTUM and cutting edge cell interconnection. This 1000 V IEC/UL solar module with its 12 busbar cell design ensures superior yields while having a very low LCOE.

Q CELLS enhanced low-light performance and the output of Q CELLS across a wide range of temperatures for Q.PEAK DUO solar panels to rival traditional crystalline technologies.

Ideal for rooftop arrays on residential buildings

Q-CELLS DUO BLK-G6 340W Features

6x20 monocrystalline Q.ANTUM solar half cells
3.2mm Thermally pre-stressed glass with anti-reflection technology
Black Anodised Aluminum
Composite film back cover
IP67 weatherproof junction boxes w/ bypass diodes
Q Cells Q.Antum technology developed in Germany
The Q.PEAK DUO BLK-G6 has at least a >19.0% efficiency.

Q CELLS Q.ANTUM DUO Technology

This state-of-the-art Q.PEAK DUO BLK-G6 solar module from Q CELLS impresses thanks to innovative Q.ANTUM DUO Technology, which enables particularly high performance on a small surface.

Q.ANTUM's world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a twelve-busbar design, thus achieving outstanding performance under real conditions - both with low-intensity solar radiation as well as on hot, clear summer days.

	Q.ANTUM TECHNOLOGY: LOW LEVELISED COST OF ELECTRICITY Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.5%.
	INNOVATIVE ALL-WEATHER TECHNOLOGY Optimal yields, whatever the weather with excellent low-light and temperature behaviour.
	ENDURING HIGH PERFORMANCE Long-term yield security with Anti LID Technology, Anti PID Technology1 , Hot-Spot Protect and Traceable Quality Tra.Q™.
	EXTREME WEATHER RATING High-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (4000Pa).
	A RELIABLE INVESTMENT Inclusive 12-year product warranty and 25-year linear performance warranty2.
	STATE OF THE ART MODULE TECHNOLOGY Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.

Contact us toll-free: (877) 297-0014

Attachments Details

Q CELLS Q.Antum Q.PEAK Solar Panel Cell Technology

High-performance technology for durability; Q CELLS premium solar panels with Q.ANTUM technology give maximum output and reliability.

Q.ANTUM technology supercharges ordinary crystalline solar cells and modules. No special system components are required. Q.ANTUM delivers exceptional performance under real-world conditions in Q CELLS Q.PEAK solar panels.

Q.ANTUM was designed to generate more power when the sun is rising, setting, or even behind clouds. Higher solar power yields will be acheived in the middle of hot and sunny summers, and during clear fall and winter days, when the sun is not as high in the sky.

Q CELLS Q.PEAK DUO BLK-G6 340 Solar Panel Warranty

Q.PEAK DUO L-G7.2 Linear Perfomance Guarantee

Inclusive 12-year product warranty
25-year linear performance guarantee

· At least 98 % of nominal power during first year.
· Thereafter max. 0.54 % degradation per year.
· At least 93.1 % of nominal power up to 10 years.
· At least 85 % of nominal power up to 25 years.
