SOLAR POWER FOR REMOTE APPLICATIONS |
|
| Model Number | MAPPS-30-58-12 |
| Nominal System Voltage | 12 VDC |
| Solar PV Module | SES 30J-V 12 Vdc 30 Watts |
| Solar Module Certifications | UL 1703, Class C Fire Rating |
| PV Module Mount | HPM-10/20/30 side of pole mount |
| Battery Type | Deka Solar 8G22NF Gel Cell |
| Battery Capacity | 12V 58 Ahr at 100 hour discharge rate |
| Enclosure Model | AL-POL-1-G31N |
| Enclosure Rating | NEMA 3R |
| Charge Controller | SunSaver SS-10L-12 |
| Controller Certifications | ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01 |
| MAPPS System Weight w/ Batteries | 76.6 lbs. |
| Origin | USA |
| List Price | $1,498.00 |
Check Out Our Full Selection of Pad & Pole Mounted Solar Systems
MAPPS 30 Watt 12VDC 58Ahr Pole-Mounted Solar Battery System
SKU MAPPS-30-58-12Reliable Power Anywhere with Our 30W Pole-Mounted System
Designed for long life in
harsh weather climates.
When it comes to selecting a solar power system, MAPPS® is a standout choice with its robust features, superior reliability, and proven performance. Designed to deliver a sustainable power supply for any remote off-grid location, these systems are pre-wired, easy to install, and adaptable to an array of outdoor applications. MAPPS® systems are renowned for their reliability, cost-effectiveness, and low maintenance, providing a seamless solution to your diverse outdoor power needs.
MAPPS® systems are built tough, capable of withstanding the harshest weather conditions, from the cold of the North Slope of Alaska to the heat of the Arabian Desert. The photovoltaic modules used in these systems exceed Jet Propulsion Laboratory Block V durability tests, are UL listed, and rated for Class I Division II hazardous areas, ensuring a design life of 25 to 40 years.

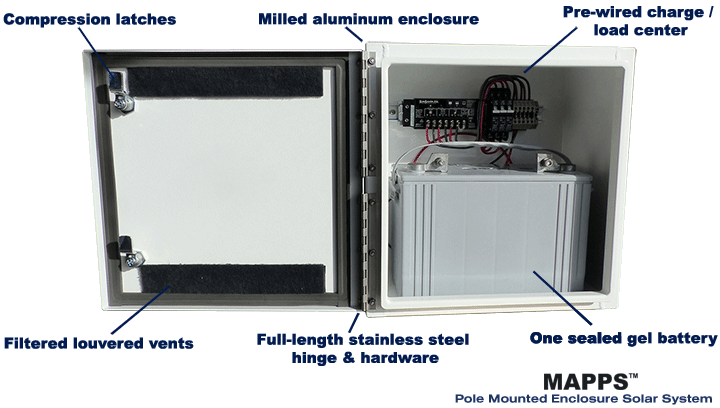

MAPPS-30-58-12 Solar Battery Systems Include
- 1x 30W SES 30J-V Solar Panel w/ mount
- 1 X NEMA 3R Outdoor Battery & Control Enclosure
- 1x Deka Solar 8G22NF Gel Cell Battery
- 1x HPM-10/20/30 side of pole mount
- Charge control load center with
pre-cut color coded wiring harness included. - Locking Compression Latches w/ 5/16" + 1/4" Shackles
Optional
- DC to DC converters for 12, 24, 48 VDC loads
- DC to AC inverter for 120 VAC loads
- Pre-wired PoE Power over Ethernet injectors
- Radio shelf for additional load equipment
- We can custom prewire many designs, CONTACT US today for details
MAPPS System Benefits
Reliable
Engineered with the industry's finest components, each element within the MAPPS® system undergoes thorough testing, ensuring reliability in even the harshest environments.
Cost-Effective
By eliminating the need for generators and trenching, the MAPPS® system offers a cost-effective solution for your power needs.
Easy Installation
The system comes pre-wired, making the installation process a breeze. Even the most remote off-grid sites can benefit from this user-friendly design.
UL Listed components
MAPPS® systems contain components that are UL listed, assuring safety and performance to the highest standards.
MAPPS® systems are made in the USA and qualify for Buy America programs
MAPPS Remote Pole-Mounted Solar Power System Applications
No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote off-grid solar project.
Solar battery powered examples can include:
|
|
With your solar powered application today! OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.
