Physical characteristics | ||
Cells per module | 60 | |
Cell type | ||
Module dimensions | 1644x992x46mm (64.7x39.1x1.8 inches) | |
Module weight | 20.2kg (44.5 lbs) | |
Front Glass | Low iron tempered glass | |
Junction box | Connecter type | MC4 |
IP grade | IP65 | |
Output cables | ||

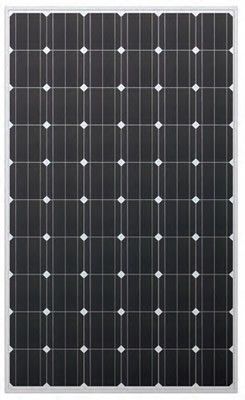

Samsung 247W/250W/255W MBA Series Silver Frame Solar Panel
![Samsung MBA Series Silver Frame High Efficiency Samsung MBA Series Silver Frame High Efficiency](/media/product-images/SolarPanel/samsung/high_efficiency.png)
High Efficiency
Samsung solar modules deliver high efficiency, requiring less installation space and lower BOS costs.
![Samsung MBA Series Silver Frame Proven Performance Samsung MBA Series Silver Frame Proven Performance](/media/product-images/SolarPanel/samsung/proven_performance.png)
Proven Performance
Samsung solar modules deliver more electricity under real world conditions thanks to superior temperature performance. (CEC conversion yield: 90.3% under PV USA test conditions)
![Samsung MBA Series Silver Frame Output Tollrence Samsung MBA Series Silver Frame Output Tollrence](/media/product-images/SolarPanel/samsung/output_tollrence.png)
Positive Power Output Tolerance
Samsung solar modules and cells avoid any power loss due to their positive output tolerance (0 / +2%) and narrow sorting range.
![Samsung MBA Series Silver Frame Low Mismatch Loss Samsung MBA Series Silver Frame Low Mismatch Loss](/media/product-images/SolarPanel/samsung/low_mismatch_loss.png)
Low Mismatch Loss
Narrow current band allows for
![Samsung MBA Series Silver Frame Superior Durability Samsung MBA Series Silver Frame Superior Durability](/media/product-images/SolarPanel/samsung/superior_durability.png)
Superior Durability
Samsung solar modules are certified to withstand high pressure: wind loads (2,400Pa), snow loads (5,400Pa).
![Samsung MBA Series Silver Frame Strict Quality Testing Samsung MBA Series Silver Frame Strict Quality Testing](/media/product-images/SolarPanel/samsung/quality_testing.png)
Strict Quality Testing
Samsung solar modules are
Silver frame | PV-MBA1BG247 | PV-MBA1BG250 | PV-MBA1BG255 | |
Measured at STC : Irradiance 1000W/m2, AM 1.5, and cell temperature 25°C | ||||
Maximum power | Pmax (Wp) | 247 | 250 | 255 |
Maximum power voltage | Vmp (V) | 30.5 | 30.7 | 31.1 |
Maximum power current | Imp (A) | 8.11 | 8.15 | 8.21 |
Open circuit voltage | Voc (V) | 37.6 | 37.8 | 38.1 |
Short circuit current | Isc (A) | 8.64 | 8.68 | 8.75 |
Module efficiency | 15.15% | 15.33% | 15.64% | |
Measured at NOCT : Irradiance 800W/m2, ambient temperature 20°C, wind speed 1m/s | ||||
Maximum power | Pmax (Wp) | 180 | 182 | 187 |
Maximum power voltage | Vmp (V) | 27.7 | 28.0 | 28.2 |
Maximum power current | Imp (A) | 6.49 | 6.53 | 6.63 |
Open circuit voltage | Voc (V) | 34.9 | 35.0 | 35.3 |
Short circuit current | Isc (A) | 6.46 | 6.49 | 6.55 |
*Power output may vary by 0% / +2% and other electrical parameters by ±3%.
Safety ratings & Warranties | |
Fire Safety Classification | Class C |
Certifications | IEC 61215, IEC 61730, UL 1703 |
Warranty | 10 years limited product warranty |
Performance guarantee | 10 years limited warranty of 90% power output |
25 years limited warranty of 80% power output |
Qualification test | |
Temp cycling range | |
Damp heat test | 85°C and 85% relative humidity for 1000hr |
Front load test (Snow) | 5400Pa |
Rear static load test (Wind) | 2400Pa |
Hailstone impact test | 25mm hail at 23m/s from 1m distance |
System integration parameters | |
Maximum system voltage (IEC) | 1,000 V |
Maximum system voltage (UL) | 600 V |
Maximum series fuse rating | 15 A |
Limiting reverse current | 15 A |
Temperature coefficients | |
NOCT | 45 ± 2°C |
TC Isc | 0.034%/K |
TC Voc | |
TC Pmax |
(NOCT : Nominal Operating Cell Temperature)
Packing configuration | |
Container | 40’HC |
Pieces per pallet | 20 |
Pallets per container | 28 |
![Samsung MBA Series Silver Frame IV Curves Samsung MBA Series Silver Frame IV Curves](/media/product-images/SolarPanel/samsung/iv_curve1.jpg)

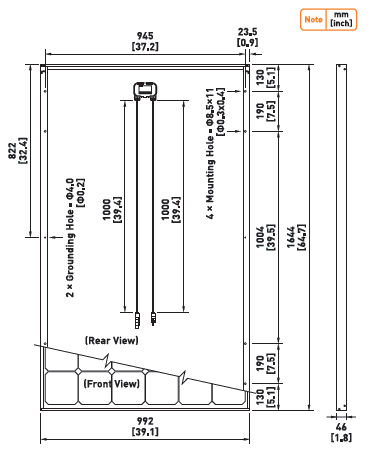

![Samsung MBA Series Silver Frame Dimensions Samsung MBA Series Silver Frame Dimensions](/media/product-images/SolarPanel/samsung/graph1.png)
