Physical characteristics
Cells per module | 60 | |
Cell type | ||
Dimensions | 64.17x 38.66x1.81 in. (1630x982x46mm) | |
Front Glass | 0.13 in.(3.2mm) Tempered glass | |
Weight | 41 lbs (18.6kg) | |
Junction box | Connector Type | Bizlink S418 (MC4 connectable) |
IP Grade | IP 65 | |
Output Cable | (+) 47.24 in. |

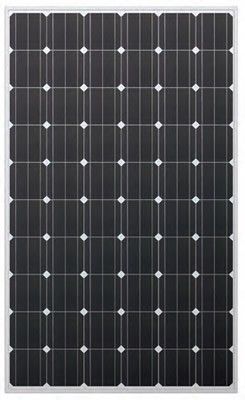

Samsung LPC247SM-08 247 Watt Solar Panel
Samsung takes on the Solar Challenge
- Developing viable solar power systems is one of the great tasks facing the world today, and Samsung is now in the race.
- We are poised to repeat our success in solar power generation. Our track record speaks for itself.
![Samsung LPC-08 Series High Efficiency Samsung LPC-08 Series High Efficiency](/media/product-images/SolarPanel/samsung/high_efficiency.png)
High Efficiency
Samsung solar modules deliver high efficiency, requiring less installation space and lower BOS costs.
![Samsung LPC-08 Series Proven Performance Samsung LPC-08 Series Proven Performance](/media/product-images/SolarPanel/samsung/proven_performance.png)
Proven Performance
Samsung solar modules deliver more electricity under real world conditions thanks to superior temperature performance. (CEC conversion yield: 90.3% under PV USA test conditions)
![Samsung LPC-08 Series Output Tollrence Samsung LPC-08 Series Output Tollrence](/media/product-images/SolarPanel/samsung/output_tollrence.png)
Positive Power Output Tolerance
Samsung solar modules and cells avoid any power loss due to their positive output tolerance (0 / +2%) and narrow sorting range.
![Samsung LPC-08 Series Low Mismatch Loss Samsung LPC-08 Series Low Mismatch Loss](/media/product-images/SolarPanel/samsung/low_mismatch_loss.png)
Low Mismatch Loss
Narrow current band allows for
![Samsung LPC-08 Series Superior Durability Samsung LPC-08 Series Superior Durability](/media/product-images/SolarPanel/samsung/superior_durability.png)
Superior Durability
Samsung solar modules are certified to withstand high pressure: wind loads (2,400Pa), snow loads (5,400Pa).
![Samsung LPC-08 Series Strict Quality Testing Samsung LPC-08 Series Strict Quality Testing](/media/product-images/SolarPanel/samsung/quality_testing.png)
Strict Quality Testing
Samsung solar modules are
Performance at Standard Test Conditions (STC) : Irradiance 1000 W/m2, AM 1.5, and cell temperature 25°C | ||||
Maximum power | Pmax (Wp) | 241 | 244 | 247 |
Open circuit voltage | Voc (V) | 37.4 | 37.5 | 37.6 |
Short circuit current | Isc (A) | 8.54 | 8.58 | 8.62 |
Maximum power voltage | Vmp (V) | 30.1 | 30.3 | 30.4 |
Maximum power current | Imp (A) | 8.01 | 8.07 | 8.14 |
Module efficiency | 15.06% | 15.24% | 15.43% | |
Performance at Nominal Operating Cell Temperature (NOCT) : Irradiance 800 W/m2, ambient temperature 20°C, wind speed 1m/s | ||||
Maximum power | Pmax (Wp) | 194 | 196 | 198 |
Open circuit voltage | Voc (V) | 37.4 | 37.3 | 37.4 |
Short circuit current | Isc (A) | 6.84 | 6.88 | 6.89 |
Maximum power voltage | Vmp (V) | 30.3 | 30.4 | 30.5 |
Maximum power current | Imp (A) | 6.43 | 6.48 | 6.49 |
*The rated power may only vary by 0 Wp / +2.99 Wp.
Safety Ratings & Warranties | |
Fire Safety Classification | Class C |
Certifications | UL 1703, CEC Listed |
Warranty | 5 years limited product warranty |
Performance guarantee | 10 years limited warranty of 90% power output |
25 years limited warranty of 80% power output |
Qualification Test | |
Temp cycling range | |
Damp heat test | 85°C and 85% relative humidity for 1000 hr |
Front load test (Snow) | 5400 Pa |
Rear static load test(Wind) | 2400 Pa |
Hailstone impact test | 25 mm hail at 23 m/s from 1 m distance |
System integration parameters | |
Maximum system voltage (IEC) | 1,000 VDC |
Maximum system voltage (UL) | 600 VDC |
Maximum series fuse rating | 15 A |
Maximum reverse current | 20 A |
Temperature coefficients | |
NOCT | 46 ± 2°C |
TC Isc | 0.07%/K |
TC Voc | |
TC Pmax |
(NOCT : Nominal Operating Cell Temperature)
Packing Configuration | |
Container | 40’HC |
Piece per pallet | 20 |
Pallets per container | 26 |
![Samsung LPC-08 Series Dimensions Samsung LPC-08 Series Dimensions](/media/product-images/SolarPanel/samsung/dimension-08-series.png)
