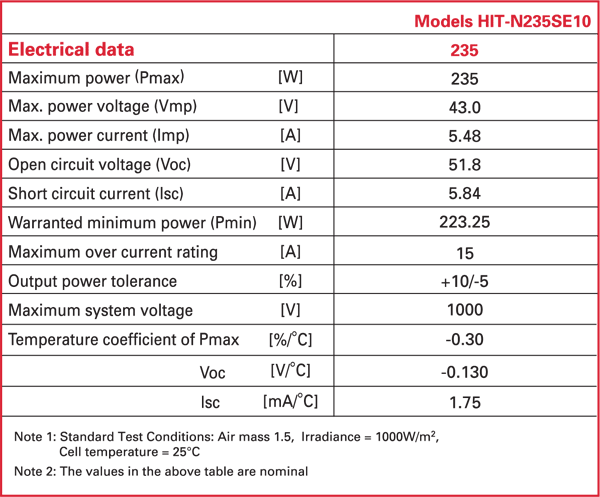

| Model Number | HIT-N235SE10 |
| STC Rating | 235.0 |
| PTC Rating | 0.0 |
| Open Circuit Voltage (V) | 51.8 |
| Short Circuit Current (A) | 5.84 |
| Frame Color | Black |
| Origin | US/Mexico |
| Power % ± | 0/5 |
| (W/ft²) | 16.95 |
| Area (ft²) | 13.6 |
| Weight (lbs) | 33.1 |
| Length (in) | 62.20 |
| Width (in) | 32.10 |
| Height (in) | 1.37 |
Sanyo Panasonic HIT-N235SE10 Solar Panels
HIT cell technology
The SANYO HIT (Heterojunction with Intrinsic Thin layer) solar cell is made of a thin mono crystalline silicon wafer surrounded by ultra-thin amorphous silicon layers. This product provides the industry's leading performance and value using state-of-the-art manufacturing techniques.
Environmentally-Friendly Solar Cell
More Clean Energy
HIT can generate more clean Energy than other conventional crystalline solar cells.
Special Features
SANYO HIT solar modules are 100% emission free, have no moving parts and produce no noise. The dimensions of the HIT modules allow space-saving installation and achievement of maximum output power possible on given roof area.
High performance at high temperatures
Even at high temperatures, the HIT solar cell can maintain higher efficiency than a conventional crystalline silicon solar cell.
Three tabs application
- Reducing electrical loss between the cell fingers and tabs
- Making the tab width thinner to expand the light receiving surface
Light capturing technology
- Reducing reflection and scattering of incoming light
- Improving generated electricity levels in morning and evening times
