Model Number | HIT-Power 240S |
STC Rating | 240.0 |
Open Circuit Voltage (V) | 52.4 |
Short Circuit Current (A) | 5.85 |
Frame Color | Black |
Origin | US/Mexico |
(W/ft²) | 17.70 |
Area (ft²) | 13.56 |
Weight (lbs) | 33.1 |
Length (in) | 62.2 |
Width (in) | 31.4 |
Height (in) | 1.4 |
Sanyo Panasonic HIT Power 240S VBHN240SA06 Solar Panels
High Efficiency
HIT Power solar panels are leaders in sunlight conversion efficiency. Obtain maximum power within a fixed amount of space. Save money using fewer system attachments and racking materials, and reduce costs by spending less time install- ing per Watt.
Power Guarantee
The power ratings for HIT Power panels guarantee customers receive 100% of the nameplate rated power (or more) at the time of purchase, enabling owners to generate more kWh per rated Watt, quicken invest- ments returns, and help realize com- plete customer satisfaction.
Temperature Performance
As temperatures rise, HIT Power solar panels produce 10% or more electricity (kWh) than conventional crystalline silicon solar panels at the same temperature.
Valuable Features
The packing density of the panels reduces transportation, fuel, and storage costs per installed watt.
American Made Quality
Panasonic HIT silicon wafers located inside HIT solar panels are made in Oregon, and the panels are assembled in an IS0 9001 (quality), 14001 (environment), and 18001 (safety) certified factory. Unique
- Efficient dark monocrystalline solar cells
- Sleek black frame looks great on a home roof
- 21.6% solar cell efficiency
- 10 year product workmanship warranty
- 20 year power output warranty
HIT is a registered trademark of Panasonic Group. The name “HIT“ comes from “Heterojunction with intrinsic Thin- layer” which is an original technology of Panasonic Group.
Model | HIT Power 235S or VBHN235SA06 |
Rated Power (Pmax) | 235 W |
Maximum Power Voltage (Vpm) | 43.0 V |
Maximum Power Current (Ipm) | 5.48 A |
Open Circuit Voltage (Voc) | 51.8 V |
Short Circuit Current (Isc) | 5.84 A |
Temperature Coefficient (Pmax) | |
Temperature Coefficient (Voc) | |
Temperature Coefficient (Isc) | 1.75 mA/ °C |
NOCT | 118.9°F (48.3°C) |
CEC PTC Rating | 218.7 W |
Cell Efficiency | 21.1% |
Module Efficiency | 18.6% |
Watts per Ft.2 | 17.33 W |
Maximum System Voltage | 600 V |
Series Fuse Rating | 15 A |
Warranted Tolerance |
Internal Bypass Diodes | 3 Bypass Diodes |
Module Area | 13.56 Ft2 (1.26m2) |
Weight | 33.1 Lbs. (15kg) |
Dimensions LxWxH | 62.2x31.4x1.4 in. (1580x798x35 mm) |
Cable Length |
40.55/34.64 in. (1030/880 mm) |
Cable Size / Type | No. 12 AWG / PV Cable |
Connector Type3 | |
Static Wind / Snow Load | 50 PSF (2.400 Pa) |
Pallet Dimensions LxWxH | 63.2x32x.65 in. (1607x815x1650 mm) |
Quantity per Pallet / Pallet Weight | 40 pcs./1388.9 Lbs (630 kg) |
Quantity per 40’ Container | 560 pcs. |
Quantity per 20’ Container | 280 pcs. |

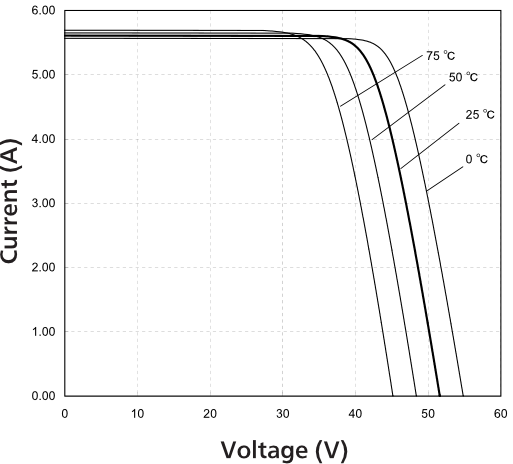

Dependence on Temperature:

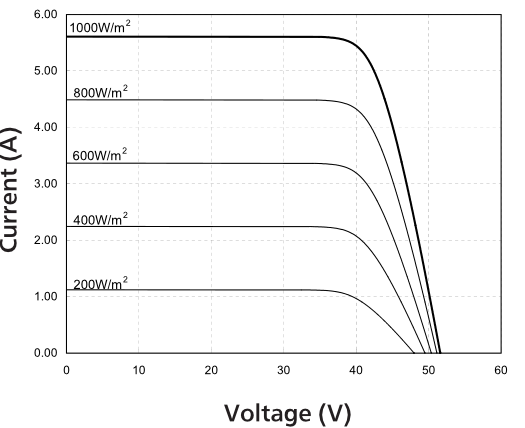

Dependence on Irradiance:
