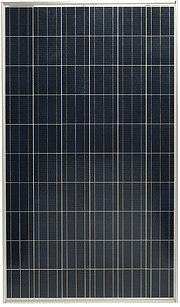

Sharp ND-216UC1 Solar Module

Multi-Purpose 216 Watt module from the world's trusted source for solar

Using breakthrough technology, made possible by nearly 50 years of proprietary research and development, Sharp's ND-216UC 1 solar module incorporates an advanced surface texturing process to increase light absorption and improve efficiency. Common applications include commercial and residential grid-tied roof systems as well as ground mounted arrays. Designed to withstand rigorous operating conditions, this module offers high power output per square foot of solar array.

"Business leaders install this module in large commercial applications,
demonstrating financial astuteness and environmental stewardship"

Electrical Characteristics Maximum Power (Pmax)* 216 W Tolerance of Pmax +10%/-5% Type of Cell Polycrystalline silicon Cell Configuration 60 in series Open Circuit Voltage (Voc) 36.5 V Maximum Power Voltage (Vpm) 28.9 V Short Circuit Current (Isc) 8.10 A Maximum Power Current (Ipm) 7.48 A Module Efficiency (%) 13.3% Maximum System (DC) Voltage 600 V Series Fuse Rating 15 A NOCT 47.5°C Temperature Coefficient (Pmax) -0.485%/°C Temperature Coefficient (Voc) -0.36%/°C Temperature Coefficient (lsc) 0.053%/°C *Measured at (STC) Standard Test Conditions: 25°C, 1 kW/m2 insolation, AM 1.5	Mechanical Characteristics Dimensions (A x B x C below) 39.1" x 64.6" x 1.8"/994 x 1640 x 46 mm Cable Length (I) 43.3"/1100 mm Output Interconnect Cable** 12 AWG with MC4 Locking Connector Weight 44.1 lbs / 20.0 kg Max Load 50 psf (2400 Pascals) ** A safety lock clip (Multi Contact part number PV-SSH4) may be required in readily accessible locations per NEC 2008 690.33 (C) Qualifications UL Listed UL 1703 Fire Rating Class C Waranty 25-year limited warranty on power output Contact Sharp for complete warranty information	IV Curves Cell temperature: 25 °C Current, Power vs. Voltage Characteristics Dimensions Click for Larger Image Contact Sharp for Tolerance Specifications
Sharp: The name to trust When you choose Sharp, you get more than well-engineered products. You also get Sharp's proven reliability, outstanding customer service and the assurance of our 25-year limited warranty on power output. A global leader in solar electricity, Sharp powers more homes and businesses than any other solar manufacturer worldwide. Design and specifications are subject to change without notice. Become Powerful

Engineering Excellence - High module efficiency for an outstanding balance of size and weight to power and performance.

Durable - Tempered glass, EVA lamination and weatherproof backskin provide long-life and enhanced cell performance.

Reliable - 25-year limited warranty on power output.

High Performance - This module uses an advanced surface texturing process to increase light absorption and improve efficiency.
