Model Number ND-U235Q1
STC Rating 235.0
PTC Rating 211.8
Open Circuit Voltage (V) 37.2
Short Circuit Current (A) 8.59
Frame Color Silver
Origin USA
Power % ± -5/10
(W/ft²) 0.00
Area (ft²) 17.6
Weight (lbs) 44.1
Length (in) 64.60
Width (in) 39.10
Height (in) 1.80

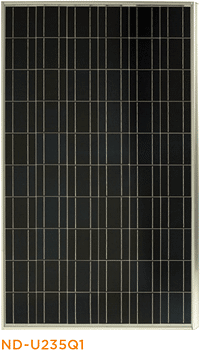

Sharp ND-U235Q1 Solar Panels

SKU ND-U235Q1

This solar panel is no longer available.
Contact us for equivalent.

  • Multi-purpose solar module offers industry leading performance for a variety of applications.
  • Laminated glass construction in a high torsion frame.
  • The Sharp ND-U235Q1 has an excellent price to power ratio.
  • Tempered glass, EVA lamination and weatherproof backskin provide long life.
  • Advanced solar cell surface texturing increases light absorption for high efficiency.
Attachments Details

Dimensions:

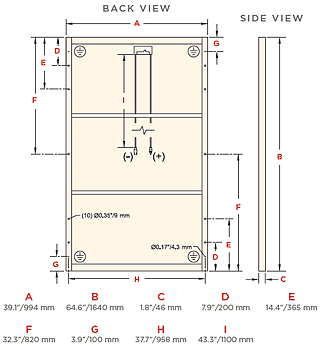

Sharp ND-U235Q1 Dimensions

Certifications:

Sharp ND-U235Q1 Certifications

Warranty:

25 year limited warranty on power output.

"Buy American"

Sharp ND-U235Q1 Improved Frame TechnologySharp solar modules are manufactured in the United States and Japan. These qualify as "American" goods under the "Buy American" clause of the American Recovery and Reinvestment Act (ARRA).

Sharp Multi-Purpose 235 Watt Solar Panel

Using breakthrough technology, made possible by nearly 50 years of proprietary research and development. The Sharp ND-U235Q1 solar panel incorporates and advanced surface texturing process to increase light absorption and improve efficiency. Common applications include commercial and residential grid-tie roof systems as well as ground mounted arrays. The ND-U235Q1 is designed to withstand rigorous operating conditions. This module also offers high power per square foot of solar array.

Sharp: The Name to Trust

When you choose this Sharp ND-U235Q1 NEC 2008 Compliant module, you get more than a well-engineered solar panel, you also get Sharp's proven reliability. Sharp offers outstanding customer service and the assurance of a 25 year warranty on power output.

A global leader in solar electricity, Sharp powers more homes and businesses than any other solar panel manufacturer worldwide.

Count on Solar Electric Supply for great pricing and the best support for your Sharp grid-tie solar panel system for your residential or commercial building.

Contact us for advice or Sharp ND-U235Q1 solar panel reviews.
