Model Number NU-U240F2
STC Rating 240.0
PTC Rating 216.5
Open Circuit Voltage (V) 37.4
Short Circuit Current (A) 8.65
Frame Color Silver
Origin USA
Power % ± -5/10
(W/ft²) 23.93
Area (ft²) 17.6
Weight (lbs) 41.9
Length (in) 64.60
Width (in) 39.10
Height (in) 1.80

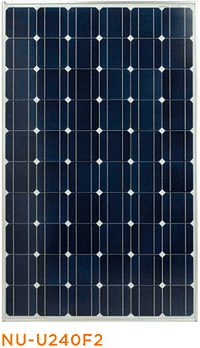

Sharp NU-U240F2 Solar Panels

SKU NU-U240F2

This solar panel is no longer available.
Contact us for equivalent.

  • Monocrystalline cells are very effcient and have an attractive black color.
  • The Sharp NU-U240F2 has an outstanding balance of size and weight to power and performance.
  • Tempered glass, EVA lamination and weatherproof backskin provide long life.
  • Advanced solar cell surface texturing increases light absorption for high efficiency.
Attachments Details

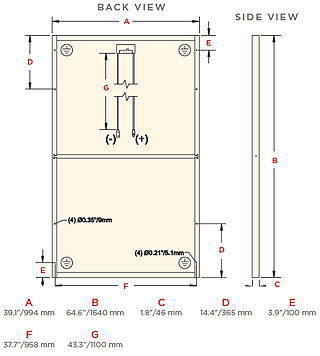

Dimensions:

Sharp NU-U240F2 Dimensions





Certifications:

Sharp NU-U240F2 Certifications





Warranty:

25 year limited warranty on power output.

"Buy American"

Sharp solar modules are manufactured in the United States and Japan. These qualify as "American" goods under the "Buy American" clause of the American Recovery and Reinvestment Act (ARRA).

Sharp: The World's Trusted Source for Solar

Sharp NU-U240F2 Improved Frame TechnologyUsing breakthrough technology, made possible by nearly 50 years of proprietary research and development, Sharp's NU-U240F2 solar module incorporates and advanced cell surface texturing process to increase light absorption and improve efficiency. Common applications include commercial and residential grid-tie roof systems as well as ground mounted arrays. The Sharp NU-U240F2 solar panel is designed to withstand many harsh operating conditions. This solar panel offers high power output per square foot of solar array.

Sharp: The Name to Trust

When you choose the Sharp NU-U240F2, you get more than a well-engineered solar panel, you also get Sharp's proven reliability. Sharp offers outstanding customer service and the assurance of a 25 year warranty on power output.

A global leader in solar electricity, Sharp powers more homes and businesses than any other solar manufacturer worldwide.



Count on Solar Electric Supply for great pricing and the best support for your Sharp grid-tie solar panel system for your residential or commercial building.

Contact us for advice or Sharp NU-U240F2 reviews.
