Shell ST10

SKU ST10

Shell ST10



Shell ST10 Reliable 10 Watt solar module

  • The Shell ST10 module is composed of a monolithic structure of
    series connected Copper Indium Diselenide (CIS) based solar cells.
  • The Shell ST10 can generate a peak power of 10 watts at 15.6 volts.
  • This is perfect for battery charging applications, especially when used
    with a charge controller. Applications include industrial, rural home and
    recreational vehicles where reliable battery charging is needed.
Attachments Details


All monolithic CIS based Shell solar modules are backed by a 10 year peak power warranty.

Qualifications and Certificates

The Shell ST-10 10 watt solar module meets the following requirements:
· UL - Listing 1703
· FM Approved

All Shell Solar modules are produced in EN-ISO 9001 certified factories.

Limited Warranties

· Peak Power for 10 years
· Product workmanship for 2 years

Easy to Install "Pigtail" Cable

The included two conductor, 5 foot cable with UV resistant jacket is easy to install on any battery charging system. This cable facilitates a variety of mounting schemes and permits easy field wiring. This cable is terminated in a low-profile weatherproof box on the module. The two leads are easily connected to any charge controller or other battery charging application.

Benefits

· Exceptional performance under low light conditions, shade and high temperature tolerance that offers reliable power in adverse or changeable conditions.
· Class leading efficiency and stable output power delivering reliable high performance for many years.
· Highly transparent tempered glass delivering more power and ensuring high impact resistance and protection against hail, snow, ice and storms.
· Uniform appearance ideal for applications where aesthetics are an important factor.
· 10 years research and over 3 years commercial manufacturing experience has been applied to the development of our CIS thin-film range to ensure that our products have a long and reliable service life backed by a 10 year warranty.

Mechanical Specifications

A torsion and corrosion-resisitant anodised aluminum frame ensures dependable performance, even under harsh weather conditions. Pre-drilled mounting holes are provided for ease of installation.

Outside dimensions: 387mm x 328mm (15.24" x 12.92")
Thickness (inc. junction box): 35mm (approx. 1.38")
Thickness (exc. junction box): 35mm (approx. 1.38")
Weight: 2.4kg (approx. 5.3 lbs.)

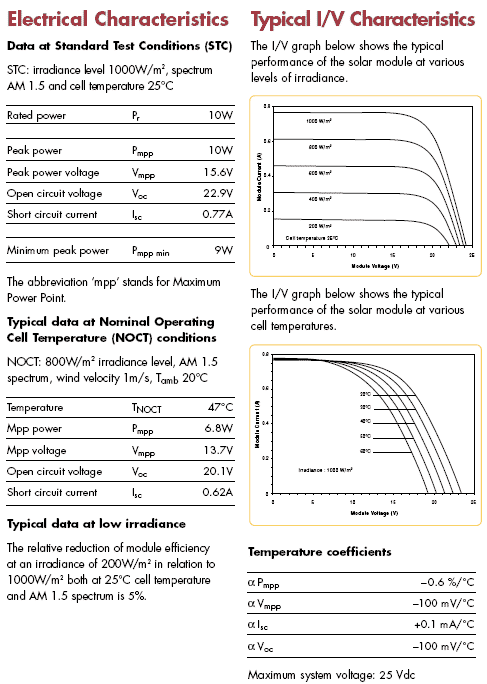

Shell ST10 specifications

Shell Solar Module Specials
While Supplies Last.

20 Watt
CIS
Copper Indium Diselenide
12V Nominal
ST20 Info		 $149 each
Quantity discounts available

Call toll-free (877) 297-0014 for more information or to order.
