SBSE7.7-US-50 Specifications
| Max. PV array power | 15400 Wp |
| Max. DC voltage | 600 V |
| MPP voltage range | 60 - 480 V |
| Rated power (at 240 V, 60 Hz) | 7650 W |
| Max. output current | 32 A |
| Max. efficiency | 97.5% |
| Number of independent MPPT inputs | 3 |
| Max. usable current input per MPPT | 15 A |
| DC disconnect | Integrated |
| Ground fault monitoring | Integrated |
| Communication interfaces | WLAN, Ethernet, RS485 |
| Weight | 38.6 lb |
REC Solar System Prices
Solar Electric Supply is an REC Authorized Platinum Distributor

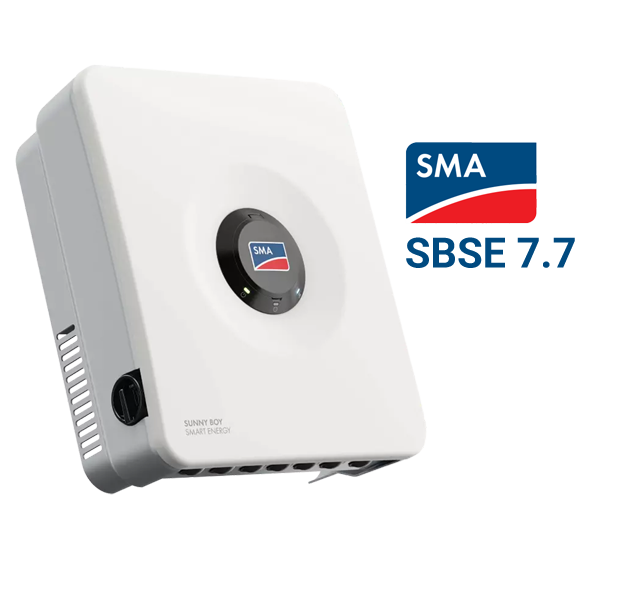

SMA Sunny Boy Smart Energy Hybrid Inverter SBSE7.7-US-50
SKU SMA-HYBRID-SMART-SBSE7.7-US-50Sunny Boy Smart Energy 7.7kW Hybrid Inverter
The SMA Sunny Boy Smart Energy 7.7-US inverter represents the pinnacle of residential hybrid solar technology. As a key component of the SMA Home Energy Solution, this inverter seamlessly integrates high-capacity solar power conversion with advanced energy storage capabilities in one efficient device.
Designed for maximum versatility and ease of installation, the Sunny Boy Smart Energy boasts an impressive 200% DC/AC design capability, three MPPT optimizing channels, and seamless integration with both PV and battery systems. Its built-in SunSpec Certified RSD transmitter and compatibility with the SMA 360° app significantly reduce installation time and complexity, making it an ideal choice for installers working on larger residential projects.
SMA SBSE7.7-US-50 Features
- Hybrid Functionality: Designed to automatically reduce high DC voltage to touch-safe levels upon grid or inverter shutdown.
- Multiple MPPT Channels: 3 MPPT inputs maximize energy harvest from solar panels.
- Flexible Design: Supports up to 200% DC/AC ratio for improved energy capture.
- SMA 360° App Compatibility: Simplifies installation and system monitoring processes.
- SMA Backup Secure: Provides power to a dedicated outlet during grid outages.
SMA SBSE7.7-US-50 Warranty
The SMA Sunny Boy Smart Energy 7.7-US is backed by SMA's comprehensive warranty, underscoring their commitment to product excellence. The inverter comes with a standard 10-year warranty, which can be extended up to 25 years for long-term protection. This warranty covers materials, workmanship, and performance, providing homeowners with confidence in their solar investment's longevity and reliability.
SMA Sunny Boy Smart Energy Hybrid Inverter 7.7-US Review
The SMA Sunny Boy Smart Energy 7.7-US inverter stands out as a robust and adaptable solution for larger residential solar systems. Its hybrid design, combining high-capacity PV and battery inverter functions, simplifies system architecture and reduces installation requirements. The inverter's 200% DC/AC design capability allows for substantial panel oversizing, enabling maximum energy production even in less-than-ideal conditions. A key feature of the Sunny Boy Smart Energy is its three independent MPPT inputs. This design optimizes energy harvest from multiple roof orientations or in partially shaded environments, ensuring efficient performance across various installation scenarios. The integrated SunSpec Certified RSD transmitter enhances safety compliance without additional equipment, streamlining the overall system design.
With a peak efficiency of 97.5%, the inverter converts a high percentage of solar energy into usable electricity, crucial for larger systems where even small efficiency gains translate to significant energy savings. The built-in SMA ShadeFix optimization technology further enhances performance by mitigating shade impacts without extra hardware, demonstrating SMA's commitment to maximizing system output .
SMA Sunny Boy SE Hybrid Inverter Features
Unparalleled Flexibility
- Maximize system potential with 200% DC/AC design capability
- Versatile hybrid and AC coupling functionality in a single unit
- Optimize performance with 3 independent MPPT channels
- Available in a range of power classes to suit various installation sizes
Streamlined Installation
- Compact and lightweight design for easier handling and mounting
- Effortless setup using the intuitive SMA 360° app
- All-in-one solution minimizes additional components and saves space
- Integrated SunSpec Certified RSD transmitter for quick compliance and setup
Dependable Performance
- Simplified system architecture eliminates the need for additional optimizers
- Backed by a robust 10-year warranty, extendable up to 25 years
- Flexible energy management with or without battery storage
New, Modern Design
- Sleek, modern aesthetics complement any installation
- User-friendly curved cover design for easy access
- Seamless multi-device connectivity via mobile app for efficient system management
Different solar panels, PV mount & inverter systems available at low wholesale prices
Contact us for sales, quantity discounts and expert reviews for the SMA Sunny Boy Smart Energy Hybrid Inverter 7.7-US.
