SMA Sunny Tripower 12000TL Inverter
Skip to the beginning of the images gallery
Model Number Sunny-Tripower-12000TL
AC Nominal Power (W) 12000.0
Peak Efficiency 0.981
Weight (lbs) 130.1
Height (in) 27.2
Width (in) 26.2
Depth (in) 10.4

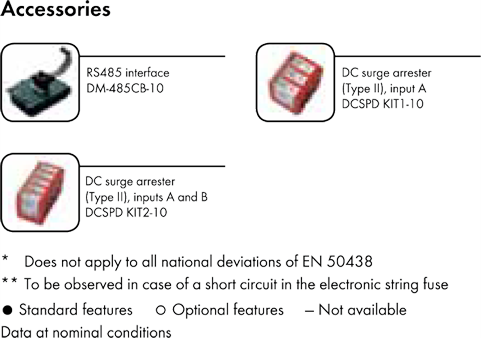

Sunny-Tripower-12000TL Accessories

SMA Sunny Tripower 12000TL Inverter

SKU Sunny-Tripower-12000TL

Efficient

  • Maximum efficiency of 98.1%
  • OptiTrac™ Global Peak for best tracking efficiency
  • Bluetooth® communication

Safe

  • Electronic string fuse and failure detection
  • Optional DC overvoltage protector (Type II)
  • String current monitoring

Flexible

  • DC input voltage up to 1000 V
  • Integrated grid managementfunctions
  • Custom plant design with Optiflex

Simple

  • Three-phase feed-in
  • Cable connection without tools
  • SUNCLIX® DC plug system
  • Easily accessible connection area

The Sunny Tripower is packed full of innovation. Thanks to the new SMA Optiflex technology, which features two MPP inputs and a very broad input voltage range, the three-phase Sunny Tripower is suited to almost any module configuration. This flexibility simplifies plant design and is perfect for systems up to the megawatt range. The Sunny Tripower also assists grid managers. It meets all the requirements for reactive power supply, utility interaction management and grid support. The Optiprotect safety concept, with its self-learning string failure detection, electronic string fuse and available DC overvoltage protector (Type II), ensures maximum uptime.

Attachments Details
Input (DC)
Max. DC power (@ cos φ = 1) 12250 W
Max. input voltage 1000 V
MPP voltage range / rated input voltage 380 V – 800 V / 600 V
Min. input voltage / initial input voltage 150 V / 188 V
Max. input current input A / input B 22 A / 11 A
Max. input current per string input A² / input B² 33 A / 12.5 A
Number of independent MPP inputs / strings per MPP input 2 / A:4, B:1
Output (AC)
Rated power (@ 230 V, 50 Hz) 12000 W
Max. apparent AC power 12000 VA
Nominal AC voltage 3 / N / PE; 220 / 380 V,
3 / N / PE; 230 / 400 V, 3 / N / PE;
240 / 415 V
Nominal AC voltage range 160 V – 280 V
AC power frequency / range 50 Hz, 60 Hz / -6 Hz ... +5 Hz
Rated power frequency / rated grid voltage 50 Hz / 230 V
Max. output current 19.2 A
Power factor at rated power 1
Adjustable displacement power factor 0.8 overexcited ... 0.8 underexcited
Feed-in phases / connection phases 3 / 3
Efficiency
Max. efficiency / European weighted efficiency 98.1 % / 97.7 %
Protective devices
DC disconnect device ●
Ground fault monitoring / grid monitoring ● / ●
DC surge arrester type II ○
DC reverse polarity protection / AC short-circuit current capability / galvanically isolated ● / ● / —
All-pole-sensitive residual-current monitoring unit ●
Protection class (according to IEC 62103) / overvoltage category I / III
General data
Dimensions (W / H / D) 665 / 690 / 265 mm
(26.2 / 27.2 / 10.4 inch)
Weight 59 kg / 130.07 lb
Operating temperature range -25 °C ... +60 °C / -13 °F ... +140 °F
Noise emission (typical) 51 dB(A)
Self-consumption (night) 1 W
Topology / cooling concept Transformerless / OptiCool
Degree of protection / connection area degree of protection IP65 / IP54
Climatic category (according to IEC 60721-3-4) 4K4H
Max. permissible value for relative humidity (non-condensing) 100 %
Features
DC coupling SUNCLIX
AC coupling Spring clamp terminal
Display Graphic
Interface: RS485 / Bluetooth / multi-function relay ○ / ● / ●
Warranty: 5 / 10 / 15 / 20 / 25 years ● / ○ / ○ / ○ / ○
Certificates and approvals (more available on request) CE, VDE0126-1-1, RD661/2007, PPC, AS4777, EN50438¹, C10/11, PPDS, IEC61727, ENELGuida, UTEC15-712-1, G59/2, VDE-AR-N4105, BDEW 2008, RD1699
Certificates and approvals (planned) CEI 0-21
Type designation STP 12000TL-10
