| Model | Sol-Ark 15K-2P-EMP |
| Max PV Power (STC) | 19,500W |
| Nominal AC Voltage | 120/240V, 120/208V, 220V |
| Nominal DC Voltage | 48V |
| Number of MPPT | 3 |
| MPPT Voltage Range | 150 - 425V |
| Battery Technologies | Lithium / Lead Acid |
| Ambient Temperature | -25~55°C, > 45°C Derating |
| Standard Warranty | 10 Years |
| Dimensions (H x W x D) | 31.8 x 19.4 x 12 in |
| Weight | 61.2 Kg / 135 lb. |
| Enclosure | NEMA 1 INDOOR only |
| Certifications and Listings | UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H |
Never Lose Power Again:
Upgrade Your Solar System Today!
We offer top-tier battery backup solutions compatible with major brands like SolarEdge, Enphase, SMA, and Fronius.
Contact UsSol-Ark 15K-2P EMP Hardened Hybrid Solar Inverter
SKU SOL-ARK-15K-2P-EMP-HYBRID-INV

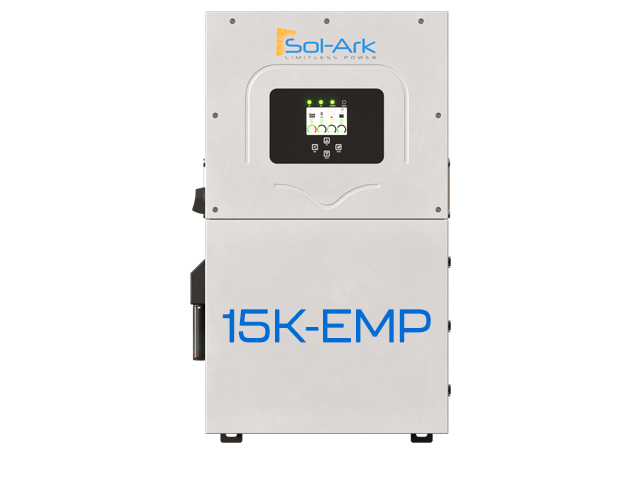

Sol-Ark 15K-2P-EMP / Lightning Hardened Hybrid Solar Inverter
Introducing the Sol-Ark 15K-2P-EMP / Lightning Hardened Residential Hybrid Inverter – the ultimate solution for preppers and homeowners looking to secure their power supply against the most extreme threats. This state-of-the-art inverter combines powerful solar harvesting capabilities with advanced EMP hardening to keep your essential loads running through EMP attacks, cyberattacks, severe weather events, and physical attacks on the grid.
This Hybrid Inverter combines an impressive 19.5 kW solar input with 15 kW continuous off-grid output power, allowing you to keep your essential appliances running during power outages. The inverter's battery agnostic design supports both lead-acid and lithium chemistries at 48V, providing flexibility in your energy storage configuration.
Sol-Ark 15K-2P-EMP Inverter Features
Advanced EMP Hardening Technology
The 15K-2P-EMP features proprietary EMP hardening technology, shielding your inverter from the devastating effects of electromagnetic pulse events, both natural and man-made.
Military-Standard Tested and Certified
Independently tested to MIL-STD-461G, the 15K-2P-EMP withstood field strengths of 50kV/m and 100kV/m without any performance degradation or damage.
Real-World Resilience
During testing, the inverter was subjected to 140 pulses in multiple orientations, with connected loads, solar panels, and a generator, demonstrating its resilience in real-world configurations.
Industry-Leading EMP Event Protection
With its ability to withstand these extreme EMP conditions, the Sol-Ark 15K-2P-EMP provides industry-leading protection against EMP events, ensuring your critical loads remain powered through even the most severe electromagnetic disturbances.
Sol-Ark 15K-2P-EMP Monitoring Technolgies
The Sol-Ark 15K-2P-EMP comes equipped with advanced monitoring technologies to keep you informed about your solar system's performance. The included Wi-Fi and LAN hardware allows for easy remote monitoring and control via web or mobile app. Additionally, the inverter supports CANBus and RS485 MODBUS communication protocols for seamless integration with battery management systems (BMS) and other third-party monitoring platforms.
Sol-Ark 15K-2P-EMP Protections & Certifications
This inverter is certified to meet the latest industry standards, including UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, and HECO Rule 14H. It also features integrated protection mechanisms such as:
- PV DC Disconnect Switch — NEC 240.15
- Ground Fault Detection — NEC 690.5
- PV Rapid Shutdown Control — NEC 690.12
- PV Arc Fault Detection — NEC 690.11
- PV input lightning protection
- PV string input reverse polarity protection
- AC output breaker (63A)
- 250A battery breaker/disconnect
- DC Type II and AC Type II surge protection
Sol-Ark 15K-2P-EMP Residential Hybrid Inverter Review
The Sol-Ark 15K-2P-EMP Residential Hybrid Inverter is a transformerless DC device that can convert up to 19,500W of solar power into 15,000W of continuous AC power. It features three MPPT trackers, enabling it to handle multiple PV strings with a wide voltage range (150-500V). The inverter has a 48V lithium or lead-acid battery input with a capacity range of 50-9900Ah and a 3-stage charging controller with equalization. It supports both grid-tied and off-grid operation, with a backup transfer time of 4ms, and includes various communication options like Wi-Fi and LAN.
What sets the Sol-Ark 15K-2P-EMP apart is its advanced EMP hardening technology. While most of the protection is built into the Sol-Ark itself, the inverter also includes additional EMP suppressors to protect home appliances and solar panels. The Sol-Ark 15K-2P-EMP comes with: 28 small suppressors and 44 big supressors.
Installation of small suppressor on appliance power cords
Installation of small suppressor on appliance power cords
Can Solar Electronics Really Survice an EMP?
Battery Agnostic*
One of the key advantages of Sol-Ark inverters is their battery agnostic design. This means that homeowners can choose from a wide range of 48V battery chemistries, including both lead-acid and lithium-ion options. This flexibility allows customers to select a battery that aligns with their specific needs, preferences, and budget.
*30K-208V & 60K-480V Models are only compatible with Lithium Batteries
Time-of-Use Optimized
Sol-Ark inverters come equipped with advanced time-of-use (TOU) metering capabilities, enabling homeowners to track and optimize their energy usage in real-time. By leveraging TOU rates, users can strategically charge their batteries during off-peak hours when electricity prices are lower and discharge stored energy during peak hours when rates are higher.
Grid Export Control
Under NEM 3.0 regulations, managing grid export is crucial to avoid exceeding export limits and incurring additional charges. Sol-Ark inverters tackle this challenge head-on with their built-in grid export control feature. By precisely regulating the amount of power exported to the grid, Sol-Ark inverters help homeowners stay within the NEM 3.0 guidelines.
