| Model | Sol-Ark 30K-208V |
| Max PV Power (STC) | 39,000W |
| Nominal AC Voltage | 120/208V |
| Nominal DC Voltage | ≥300V |
| Number of MPPT | 4 |
| Operating Voltage Range | 160 - 500V |
| Battery Technologies | Lithium iron phosphate |
| Ambient Temperature | -25~55°C, > 45°C Derating |
| Standard Warranty | 10 Years |
| Dimensions (H x W x D) | 35.2 x 20.8 x 11.6 in |
| Weight | 80 Kg / 176 lb. |
| Enclosure | IP65 / NEMA 3R |
| Certifications and Listings | UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP 4 |
Never Lose Power Again:
Upgrade Your Commercial Solar System Today!
We offer top-tier battery backup solutions compatible with major brands like SolarEdge, Enphase, SMA, and Fronius.
Contact UsSol-Ark 30K-3P-208V Commercial Hybrid Solar Inverter
SKU SOL-ARK-30K-3P-208V-N-COMM-INV

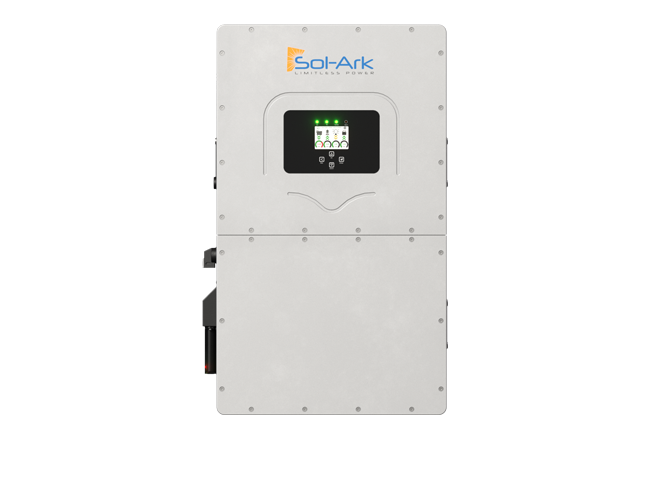

Sol-Ark 30K-3P-N 208V Commercial Hybrid Inverter
The Sol-Ark 30K-3P-N 208V Commercial Hybrid Inverter is a powerful and versatile solution designed specifically for light commercial and industrial businesses. This innovative inverter unlocks the full energy value for commercial applications by reducing electricity demand charges, improving energy resilience both behind and in front of the meter, and enabling businesses to leverage storage as a competitive advantage.
The Sol-Ark 30K-3P-N is stackable up to 10 units with high voltage battery bank options, increasing project size and site flexibility. It also features a multi-use port that provides a flexible interconnect to various devices, including AC coupling, EV chargers, generators, or outdoor service panels.
Sol-Ark 30K-3P-N 208V Inverter Features
39 KW Solar Input Power
Features x4 built-in MPPTs for max DC 500V at self-limiting 36A (with 0 W of PVdc), Max AC coupled solar input of 60,000 W, and a Max combined solar of 39 KWp + 30 KWac.
30 KW Output Power Off-Grid
Continuous AC power of 30,000 W, Max Grid sell output of 57,000 W with DC + AC coupling, Supports 120/208V 3-Phase connections.
Battery Agnostic
Only supports Li-ion batteries with nominal Vdc > 300V, Dual 500A inputs with individual BMS connections, 100A of continuous battery charging and discharging, Closed loop communications w/ our battery partners.
60 KW Generator Compatibility
Supports 208V generators on GRID breaker, Recommend up to 60 KW generators on GEN breaker, Standby generator connection for whole-building backup, Two Wire for automatic generator start.
Sol-Ark 30K-3P-N Monitoring Technolgies
The Sol-Ark 30K-3P-N 208V comes equipped with advanced monitoring technologies to keep you informed about your solar system's performance. The included Wi-Fi, Ethernet and local monitoring allow for easy remote monitoring and control. Additionally, the inverter supports generator start communication for whole-home backup.
Sol-Ark 30K-3P-N 208V Protections & Certifications
This inverter is certified to meet the latest industry standards, including UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP 4. It also features integrated protection mechanisms:
- PV DC Disconnect Switch — NEC 240.15 Integrated
- Ground Fault Detection — NEC 690.5 Integrated
- PV Rapid Shutdown Control — NEC 690.12 Integrated
- PV Arc Fault Detection — NEC 690.11 Integrated
- PV Input Lightning Protection Integrated
- PV String Input Reverse Polarity Protection Integrated
- Surge Protection DC Type II / AC Type III
Sol-Ark 30K-3P-208V Commercial Hybrid Inverter Review
The Sol-Ark 30K-3P-N 208V Commercial Hybrid Inverter is a transformerless DC device tailored to meet the energy requirements of light commercial and industrial businesses. This powerful inverter is capable of converting up to 39,000W of solar power into 30,000W of continuous three-phase AC power. Equipped with four MPPT trackers, the Sol-Ark 30K-3P-N allows for the management of multiple PV strings across a broad voltage range of 150-500V. This feature not only maximizes solar energy harvesting but also ensures optimal performance under varying weather conditions, making it an ideal solution for businesses aiming to optimize their energy usage and cut electricity costs.
Additionally, the Sol-Ark 30K-3P-N enhances its utility with dual battery inputs, each rated at 50A. This supports a wide range of lithium iron phosphate batteries, accommodating capacities from 50 to 9900Ah.
Sol-Ark Inverters and Batteries: The Perfect Solution for NEM 3.0 and California Title 24 New Construction
As NEM 3.0 reshapes the solar energy landscape in California, Sol-Ark inverters and batteries emerge as the perfect solution for homeowners seeking to optimize their solar investments. With their battery agnostic design, time-of-use optimization, grid export control, and reliable performance, Sol-Ark inverters empower users to maximize solar savings, reduce electric bills, and achieve greater energy independence.
Battery Agnostic*
One of the key advantages of Sol-Ark inverters is their battery agnostic design. This means that homeowners can choose from a wide range of 48V battery chemistries, including both lead-acid and lithium-ion options. This flexibility allows customers to select a battery that aligns with their specific needs, preferences, and budget.
*30K-208V & 60K-480V Models are only compatible with Lithium Batteries
Time-of-Use Optimized
Sol-Ark inverters come equipped with advanced time-of-use (TOU) metering capabilities, enabling homeowners to track and optimize their energy usage in real-time. By leveraging TOU rates, users can strategically charge their batteries during off-peak hours when electricity prices are lower and discharge stored energy during peak hours when rates are higher.
Grid Export Control
Under NEM 3.0 regulations, managing grid export is crucial to avoid exceeding export limits and incurring additional charges. Sol-Ark inverters tackle this challenge head-on with their built-in grid export control feature. By precisely regulating the amount of power exported to the grid, Sol-Ark inverters help homeowners stay within the NEM 3.0 guidelines.
