| Model | Sol-Ark O900-80V |
| Input Voltage Range | 18-80V |
| Max Input Current (Imax) | 14A |
| Max Short Circuit Current (Isc) | 15A |
| Max Wattage | 900W |
| Power Optimization | Yes (MPPT) |
| Communication Signal | Power Line Communication (PLC) |
| Over-Temperature Protection | Yes |
| Pairs with | TX 12K-A/TX 15K-A Transmitters |
| Warranty | 25 years |
| PV modules per O900-80V MLPE | 1 |
Never Lose Power Again:
Upgrade Your Home Solar System Today!
We offer top-tier battery backup solutions compatible with major brands like SolarEdge, Enphase, SMA, and Fronius.

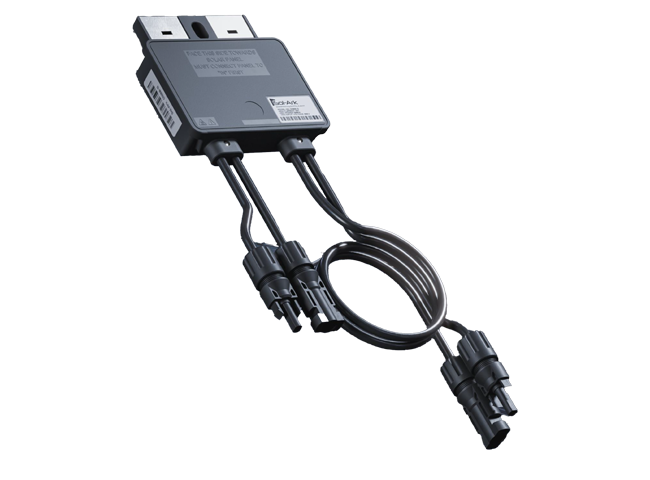

Contact UsSol-Ark O900-80V Optimizer with Rapid Shutdown (RSD)
SKU SOL-ARK-O900-80V-OPTIMIZER
Sol-Ark O900-80V Optimizer w/ RSD
The Sol-Ark O900-80V PV Optimizer is an innovative solution that enhances the performance and safety of your solar PV system. This advanced device combines module-level rapid shutdown (RSD) functionality with state-of-the-art maximum power point tracking (MPPT) technology, ensuring optimal energy production and compliance with the latest safety regulations.
The Sol-Ark O900-80V PV Optimizer is designed to be installed on each individual PV module, providing module-level optimization and rapid shutdown capabilities. By mitigating the effects of shading or underperforming panels, the O900-80V maintains peak output power, even in challenging conditions.
Sol-Ark O900-80V Optimizer Features
- Module-level MPPT optimization for maximum energy harvest
- Rapid Shutdown functionality for NEC 2017 and 2020 compliance
- SunSpec RSD certified for compatibility with compliant inverters
- Wide input voltage range (18-80V) and high maximum input current (14A)
- Rugged and compact design with IP68 enclosure rating
- Simple installation with MC4 compatible connectors
- 25-year warranty for long-term peace of mind
Rapid Shutdown (RSD) Functionality
The Sol-Ark O900-80V PV Optimizer incorporates advanced rapid shutdown capabilities, ensuring compliance with NEC 2017 (690.12) and NEC 2020 (690.12) requirements. In case of an emergency or when maintenance is necessary, the optimizer can quickly and safely reduce the voltage of the PV system to a safe level (0.9V), minimizing potential risks for first responders and maintenance personnel.
Sol-Ark O900-80V Certifications
- UL 1741 and CSA 22.2 No. 107.1 safety compliance
- FCC Part 15 Class B, IEC 61000-6-2, and IEC 61000-6-3 EMC compliance
- SunSpec RSD certified for interoperability
- Over-temperature protection for reliable operation in extreme conditions
- NEMA Type 6P / IP68 enclosure rating for durability in harsh environments
Sol-Ark O900-80V Optimizer Review
The Sol-Ark O900-80V Optimizer presents an innovative solution for solar array efficiency, combining a Rapid Shutdown Device (RSD) with Maximum Power Point Tracking (MPPT) technology. This dynamic pairing ensures that each photovoltaic (PV) module operates at peak performance, even in shaded conditions, and fully complies with the safety standards outlined in UL 1741 and NEC 690.12. The O900-80V's ability to adjust for varying sunlight conditions ensures that solar arrays maintain the highest possible power output, enhancing overall system productivity. the optimizer is equipped with over-temperature protection and operates efficiently across a wide temperature range, ensuring stable performance under various environmental conditions.
TX 12K-A & TX 15K-A Integrated Transmitters + RSD
The Sol-Ark TX 12K-A and TX 15K-A Integrated Transmitters are pivotal for the integrity of the Rapid Shutdown (RSD) system, adhering to the safety mandates set by NEC 2017 (690.12) and NEC 2020 (690.12). These transmitters communicate a "permission to operate" signal to the linked optimizers using Power Line Communication (PLC), which is crucial for enabling a module-level rapid shutdown during emergencies. Included with their respective inverters, the TX 12K-A pairs with the Sol-Ark 12K-2P-N inverter, and the TX 15K-A is compatible with the Sol-Ark 15K-2P-N inverter.
Their design allows for a seamless integration into the inverter's wire box, bypassing the need for extra PLC cores. Versatile in power options, they can draw energy from the inverter's in-built 48VDC power supply in battery-based setups or from an external 48VDC source in grid-tied systems, providing flexibility in installation and use.
