SES 120J-V 12V 120W Solar Panel | Low Wholesale Prices

SES 120J-V 12V Solar Module

Model #	SES 120J-V
STC Rating	120.0W
Module Cell Type	Crystalline silicon cells
Open Circuit Voltage (Voc)	22.0V
Short Circuit Current (Isc)	7.12A
Frame Color	Silver
Nominal Voltage	12V
Area (ft²)	8.85 ft²
Weight (lbs)	22.0 lbs
Length (in)	48.1 in
Width (in)	26.5 in
Height (in)	2.0 in
SES Price	$464.00

This solar panel is available with our

MAPPS^® Complete Industrial Solar Power Systems

Systems include everything you need to power your remote equipment: solar module, mounting structure, wiring harness, battery enclosure, charge controller, sealed battery and installation manual.

Case or pallet quantities are available for
OEM's and Industrial Customers
Contact us for pricing.

SES 120J-V 120W Solar Module Class 1 Div 2 Approved

Name: SES 120J-V 120W Solar Module Class 1 Div 2 Approved
SKU: SES-120J-V-120W-12V
Price: 464.00 USD

SKU SES-120J-V-120W-12V

$464.00

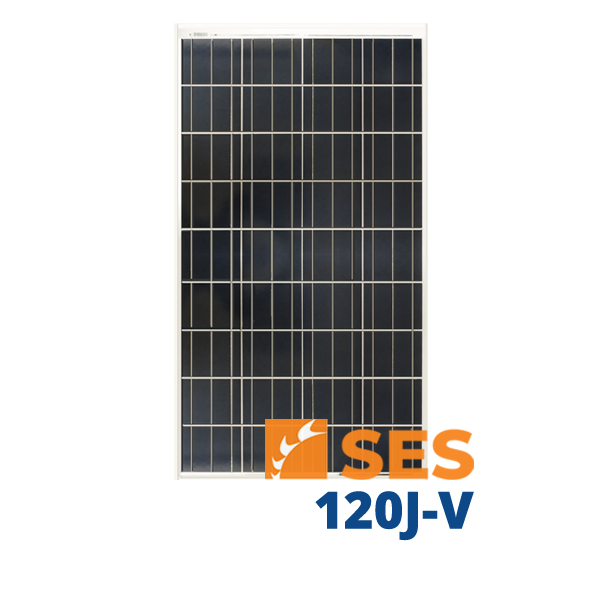

The 120J-V 120W Solar Panel

This module is available w/ our MAPPS Solar Systems

The 120J-V is available with our SES MAPPS Solar Systems

The SES 120J-V 120 Watt solar panel represents over four decades of design, manufacturing, and field-proven performance in our industrial off grid series. With 36 crystalline silicon cells in series, this panel delivers reliable performance with 14.6% efficiency and 12V nominal system compatibility.

The SES 120J-V is designed for 12VDC solar battery charging systems (charge controller required). Maximum system voltage is 1500V, offering extensive series wiring options for higher nominal voltages. It features a silver anodized aluminum frame and high-transmission 3.2mm tempered glass face for superior outdoor durability.

The SES 120J-V is approved for applications in Class 1, Division 2 Groups A, B, C & D hazardous locations and approved for explosion resistance. This certification is required near gas and oil pipelines.

Field-Tested Durability

From mountaintops to vast oil fields, on weather stations in the bitter cold of Antarctica and on telephone signal repeaters in the hot Australian outback, this solar panel technology has proven reliable in the harshest environments.

Accessible J-Type Juntion Box

The SES 120J-V features an IP65-rated junction box integrated into its rugged frame. The terminals accept 2.5-10mm² (8-14 AWG) wire. The junction box accepts PG 13.5, M20 13mm (½") conduit, or cable fittings for 6-12mm diameter cable. With its four-terminal screw connection block, it enables flexible system array configurations.

Remote Industrial Applications:

The SES 120JB-V is certified for use in Class 1 Division 2 solar systems.

Oil and gas metering
Microwave Repeaters
Two Way Radio & Microwave
Class I Div 2 Solar Systems for oil/gas
WIFI & WIMAX
Security cameras
Cellular Repeaters & Enhancers
Water metering
Security & Area Lighting
Obstruction lights

ISO 9001 Certified Module

ISO 9001 and ISO 14001 factory certifications ensure that our manufacturing facilities use proven manufacturing and quality control processes while maintaining environmental integrity.

SES 120J-V PV Module Warranty

Free from defects in materials and workmanship for 2 years
90% Min power output over 12 years
Optional 25-year warranty available *Refer to warranty certificate for terms and conditions

Attachments Details

SES 120J-V 120W Solar Panel Solar Panel Review

The SES 120J-V represents our high-current 12V solution, delivering 120 watts with an impressive module efficiency. This panel stands out with its powerful 6.60A maximum power current at 18.2V operating voltage, making it ideal for industrial applications requiring higher current output. At 48.1 x 26.5 inches and weighing 22 lbs, the panel maintains the same form factor as our 24V version while providing robust 12V power generation. Its high current output and comprehensive hazardous location certifications make it particularly valuable for customers requiring substantial amperage in challenging industrial environments, from large-scale monitoring systems to critical infrastructure installations.

SES 120J-V 120W Module Features

Accessible Junction Box

The J-type junction box features easily accessible terminals designed for seamless off-grid system integration. Its versatile design accommodates various cable gland options and provides simplified access for module interconnections, making installation and maintenance efficient across different mounting configurations.

Scratch-Resistant Back Sheet

The thick white polyester back sheet delivers superior module protection and enhanced insulation properties. Engineered to withstand rough handling during installation and maintenance, this robust layer ensures consistent performance throughout the module's lifetime while optimizing energy production through its reflective properties.

High Reliability Construction

The module's internal architecture follows industry-leading design principles, incorporating proven cell interconnection techniques and strategic diode placement. This time-tested construction methodology ensures excellent long-term reliability and consistent power output in many different environmental conditions.

Approved Solar Vendor For:

US Federal Agencies
US DOD
SAIC
Black & Veatch
Graybar Electric

Exostar Approved for:

Lockheed Martin
Boeing
Raytheon
Hughes
& many others!

Certifications

Conforms to ANSI/UL Standard UL61730-1:2017 Ed. 1+R:30Apr2020, UL61730-2:2017 Ed. 1+R:30Apr2020, UL61215-1:2017 Ed. 1, UL61215-1-1:2017 Ed. 1 and UL61215-2:2017 Ed. 1 Certified to CAN/CSA Standard C22.2 No. 61730-1:2019 Ed. 2 and C22.2 No. 61730-2:2019 Ed. 2

Conforms to ANSI/UL Standard UL121201:2017 Ed.9+R:26Aug2019 Certified to CAN/CSA St anard C22.2 No. 213:2017 Ed.3+U1;U2 Class 1, Division 2, Groups A, B, C and D

Certified in accordance with IEC61730-1:2016, IEC61730-2:2016, EN/ IEC61730-1:2018, EN/IEC61730-2:2018, IEC61215-1:2016, IEC61215-2:2016 and IEC61215-1-1:2016, EN 61215-1:2016, EN 61215-1-1:2016 and EN 61215-2:2017

Conforms with European Directive 2014/35/EU

Solar Electric Supply Module Certifications. Intertek US , CE, & ISO 9001 Listed
