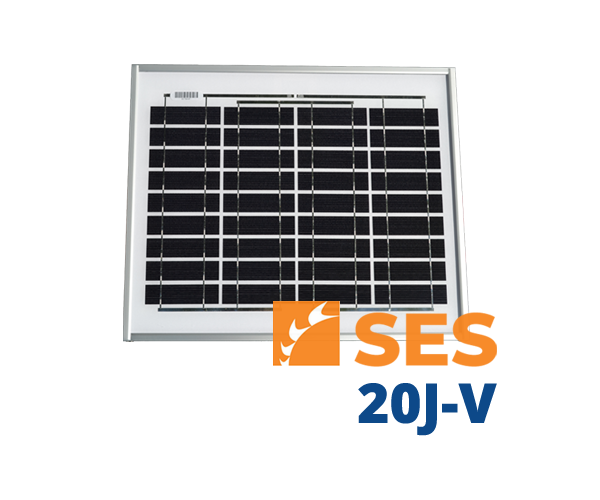

SES 20J-V 12V Solar Module
| Model Number | SES 20J-V |
| STC Rating | 20.0W |
| Module Cell Type | Crystalline silicon cells |
| Open Circuit Voltage (Voc) | 22.2V |
| Short Circuit Current (Isc) | 1.20A |
| Frame Color | Silver |
| Area (ft²) | 2.27 |
| Weight (lbs) | 6 |
| Length (in) | 16.53 |
| Width (in) | 19.8 |
| Height (in) | 2.0 |
| SES Price | $173.00 |
This solar panel is available with our:
MAPPS® Complete Remote Solar Power Systems
Systems include everything you need to power your remote equipment: solar module, mounting structure, wiring harness, battery enclosure, charge controller, sealed battery and installation manual.
Case or pallet quantities are available for
OEM's and Industrial Customers
Contact us for pricing.
SES 20J-V 20W 12V PV Solar Module Class 1 Div 2 Approved
SKU SES-20J-V-12V-MODULE
The SES 20J-V 20W Solar Panel
The SES 20J-V is available with our SES MAPPS Solar Systems
The SES 20J-V 20 Watt solar panel represents over four decades of design, manufacturing, and field-proven performance in our industrial off grid series. These high-quality solar modules provide cost-effective photovoltaic power for DC battery charging systems. With 36 crystalline silicon cells in series, this panel charges batteries efficiently in all climate conditions.
The SES 20J-V is designed for 12VDC solar battery charging systems (charge controller required). Maximum system voltage is 50V, with series wiring options available for higher nominal voltages. It features a silver anodized aluminum frame and high-transmission 3.2mm tempered glass face for superior outdoor durability.
The SES 20J-V is approved for applications in NEC Class 1, Division 2 Groups A, B, C & D hazardous locations and approved for explosion resistance. This certification is required near gas and oil pipelines.
Field-Tested Durability
From mountaintops to vast oil fields, on weather stations in the bitter cold of Antarctica and on telephone signal repeaters in the hot Australian outback, this solar panel technology has proven reliable in the harshest environments.
Accessible J-Type Juntion Box
The SES 20J-V features an IP65-rated junction box integrated into its rugged frame. The terminals accept 2.5-10mm² (8-14 AWG) wire. The junction box accepts PG 13.5, M20 13mm (½") conduit, or cable fittings for 6-12mm diameter cable. With its four-terminal screw connection block, it enables flexible system array configurations.
Remote Industrial Applications:
The SES 20J-V is certified for use in Class 1 Division 2 solar systems.
- Oil and gas metering
- Microwave Repeaters
- Two Way Radio & Microwave
- Class I Div 2 Solar Systems for oil/gas
- WIFI & WIMAX
- Security cameras
- Cellular Repeaters & Enhancers
- Water metering
- Security & Area Lighting
- Obstruction lights
ISO 9001 Certified Module
ISO 9001 and ISO 14001 factory certifications ensure that our manufacturing facilities use proven manufacturing and quality control processes while maintaining environmental integrity.
SES 20J-V PV Module Warranty
- Free from defects in materials and workmanship for 2 years
- 90% Min power output over 12 years
- Optional 25-year warranty available *Refer to warranty certificate for terms and conditions
SES 20J-V 12V Solar Panel Solar Panel Review
The SES 20J-V represents our commitment to delivering reliable solar solutions for demanding industrial applications. As a direct evolution of field-proven technology, this 20-watt panel consistently meets the rigorous demands of hazardous locations and remote installations. Our customers particularly value its Class 1 Division 2 certification and robust IP65-rated junction box, which make it a natural choice for oil and gas monitoring systems. The panel's 36-cell crystalline silicon design, combined with its reinforced construction featuring a 3.2mm tempered glass front and durable white polyester back sheet, ensures dependable performance even in extreme environments.
SES 20J-V 12V Module Features
Accessible Junction Box
The J-type junction box features easily accessible terminals designed for seamless off-grid system integration. Its versatile design accommodates various cable gland options and provides simplified access for module interconnections, making installation and maintenance efficient across different mounting configurations.
Durable Scratch-Resistant Back Sheet
The thick white polyester back sheet delivers superior module protection and enhanced insulation properties. Engineered to withstand rough handling during installation and maintenance, this robust layer ensures consistent performance throughout the module's lifetime while optimizing energy production through its reflective properties.
High Reliability Construction
The module's internal architecture follows industry-leading design principles, incorporating proven cell interconnection techniques and strategic diode placement. This time-tested construction methodology ensures excellent long-term reliability and consistent power output across diverse environmental conditions and operational demands.
Approved Solar Vendor For:
- US Federal Agencies
- US DOD
- SAIC
- Black & Veatch
- Graybar Electric
Exostar Approved for:
- Lockheed Martin
- Boeing
- Raytheon
- Hughes
- & many others!
Certifications
Conforms to ANSI/UL Standard UL61730-1:2017 Ed. 1+R:30Apr2020, UL61730-2:2017 Ed. 1+R:30Apr2020, UL61215-1:2017 Ed. 1, UL61215-1-1:2017 Ed. 1 and UL61215-2:2017 Ed. 1 Certified to CAN/CSA Standard C22.2 No. 61730-1:2019 Ed. 2 and C22.2 No. 61730-2:2019 Ed. 2
Conforms to ANSI/UL Standard UL121201:2017 Ed.9+R:26Aug2019 Certified to CAN/CSA St anard C22.2 No. 213:2017 Ed.3+U1;U2 Class 1, Division 2, Groups A, B, C and D
Certified in accordance with IEC61730-1:2016, IEC61730-2:2016, EN/ IEC61730-1:2018, EN/IEC61730-2:2018, IEC61215-1:2016, IEC61215-2:2016 and IEC61215-1-1:2016, EN 61215-1:2016, EN 61215-1-1:2016 and EN 61215-2:2017
Conforms with European Directive 2014/35/EU
Complete off-grid & Class 1 Division 2 solar panel systems available
Contact Us Today! - for sales, quantity discounts and expert reviews for the SES 20J-V 12V Solar Panel.

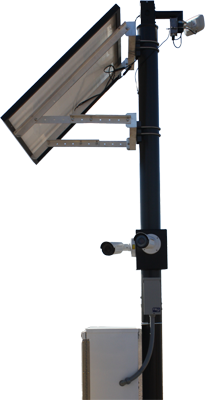

MAPPS® Pad & Pole Mount Systems
