Model Number SES-420M
STC Rating 20.0
PTC Rating 0.0
Open Circuit Voltage (V) 21.0
Short Circuit Current (A) 1.29
Frame Color Silver
Origin Hong Kong
Power % ± -10/10
(W/ft²) 8.81
Area (ft²) 2.3
Weight (lbs) 5.5
Length (in) 16.60
Width (in) 19.70
Height (in) 0.90

Solar Electric Supply SES-420M Solar Panels

SKU SES-420M

Our latest generation of small area modules offers the following benefits:

Built to last

From mountaintops to off-shore platforms, on weather stations in the bitter cold of Antarctica and on telephone signal repeaters in the hot Australian outback, the technology has been proven in the harshest environments.

Multiple mounting possibilities

Multimount frame allows even greater flexibility in mounting. Positioned parallel to the edge and back of the module, its dual channels accept either M8 or 5/16" hex-head bolts, allowing the module to be mounted from the side or back.

Easier bolt management

Bolts may be located anywhere along the channels; the channel groove is specially designed to prevent the bolt from rotating when tightening, allowing installation with just one wrench.

Long cable for easier battery connections.

A 4.6 meter PVC-jacketed AWG 18-2 polarized cable is potted into the fully sealed junction box located on the module back. The module's electrical connections are sealed for prevention against corrosion and moisture penetration.

Remote Industrial Applications:

  • Remote telemetry
  • Cathodic protection
  • Instrumentation systems
  • Security sensors
  • Signals
  • Oil metering
  • Water metering
  • Residential gate openers
  • Navigation aids
  • Obstruction lights
Attachments Details

ISO 9001 Certified:

ISO 9001 factory certification ensures that our manufacturing facilities use proven manufacturing and control processes.

Approval Listings and Qualifications:

  • Listed to UL 1703 & ULC ORD-C1703 Standard for Safety by Intertek ETL. Class C Fire Rating.
  • Approved by Intertek ETL according to FM 3611, Dec 2004, and according to CAN/CSA C22.2 No. 213-M1987, 1st Edition, Reaffirmed 2004, for use in a Class I Division 2, Group A, B, C, D Hazardous (Classified) Location.

SES Module Warranty

  • Free from defects in materials and workmanship for 2 years
  • 90% Min power output for 12 years
  • 25 year warranty optional

*Refer to limited warranty certificate for terms and conditions

How to Buy the SES 420M:

  1. The SES 420M is available in our complete MAPPS solar power systems that include everything you need to power your remote equipment; solar module, mounting structure, wiring harness, battery enclosure with controller and sealed battery, and installation manual.
  2. OEM's and Industrial Customers can buy in case or pallet quantities, contact us for pricing.

MAPPS Complete Remote Solar Power Systems MAPPS Logo



Conduit ready junction box photographConduit Ready Junction Box, gaskets included, box attached to frame wall for added durability

ISO 9001 Certification Logo

Approved Solar Vendor For:

  • US Federal Agencies
  • US DOD
  • SAIC
  • Black & Veatch
  • Grainger
  • Graybar Electric
  • CED
  • Crescent Electric

Exostar Approved for:

  • Lockheed Martin
  • Boeing
  • Raytheon
  • Hughes
  • & Many others!

We are a government approved vendor, Net 30 with PO. Government, educational and corporate P.O.s & IMPAC cards accepted.

SES 420M Solar Module Features

Module aluminum frame photographHeavy Duty Aluminum Frame for High Wind Speed Rating & Durability

Module aluminum frame with pre-drilled mounting holes photographModule Frame includes pre-drilled mounting holes for mounting frame and ground

Approval Listings and Certification Label on back of modules photograph

Label on back of modules shows Approval Listings and Certification

The SES 420M is a direct bolt in replacement for the BP Solar SX-20M



SES 420M Solar Module Specifications:

Electrical characteristics (1) STC 1000W/m2 (2) NOCT 800W/m2
Maximum power (Pmax) 20W 14.4W
Voltage at Pmax (Vmpp) 16.8V 15.0V
Current at Pmax (Impp) 1.19A 0.95A
Short circuit current (Isc) 1.29A 1.04A
Open circuit voltage (Voc) 21.0V 19.1V
Module efficiency 9.5%
Tolerance Pmax ± 10%
Nominal voltage 12V
Efficiency reduction at 200W/m2 <5% reduction (efficiency 9.0%)
Limiting reverse current 1.29A
Temperature coefficient of Isc 0.105%/ °C
Temperature coefficient of Voc 0.360%/ °C
Temperature coefficient of Pmax -0.45%/ °C
(3) NOCT 47 ±2 °C
Maximum series fuse rating 3A
Application class Class C (according to IEC 61730-2007)
Maximum system voltage 50V
  1. Values at Standard Test Conditions (STC): 1000W/m2 irradiance, AM1.5 solar spectrum and 25°C module temperature
  2. Values at 800W/m2 irradiance, Nominal Operation Cell Temperature (NOCT) and AM1.5 solar spectrum
  3. Nominal Operation Cell Temperature: Module operation temperature at 800W/m2 irradiance, 20°C air temperature, 1m/s wind speed

All solar modules are individually tested prior to shipment; an allowance is made within our factory measurement to account for the typical power degradation (LILD effect) which occurs during the first few days of deployment.
SES MAPPS Solar Module Mechanical characteristics
Solar cells 36 monocrystalline silicon cut cells in series
Front cover High transmission 3.2mm (1/8") glass
Encapsulant EVA
Back cover White polyester
Frame Silver anodized aluminum
Junction box Lo-Pro junction box
Terminals AWG#18 (0.75mm2) 2 core, ITC /PLTC Lengths 4572mm /15ft. ("+" red; "-" black)
Dimensions 421 x 501 x 23mm / 16.6 x 19.7 x 0.9in
Weight 2.5kg / 5.5lbs
All dimensional tolerances within ±1% unless otherwise stated.
Warranty*
  • Free from defects in materials and workmanship for 2 years
  • 90% Min power output for 12 years
  • Optional 25 years available
*Refer to limited warranty certificate for terms and conditions
SES MAPPS Solar Module Certification
Listed to UL 1703 & ULC ORD-C1703 Standard for Safety by Intertek ETL. Class C Fire Rating.
Approved by Intertek ETL according to FM 3611, Dec 2004, and according to CAN/CSA C22.2 No. 213-M1987, 1st Edition, Reaffirmed 2004, for use in a Class I Division 2, Group A, B, C, D Hazardous (Classified) Location.

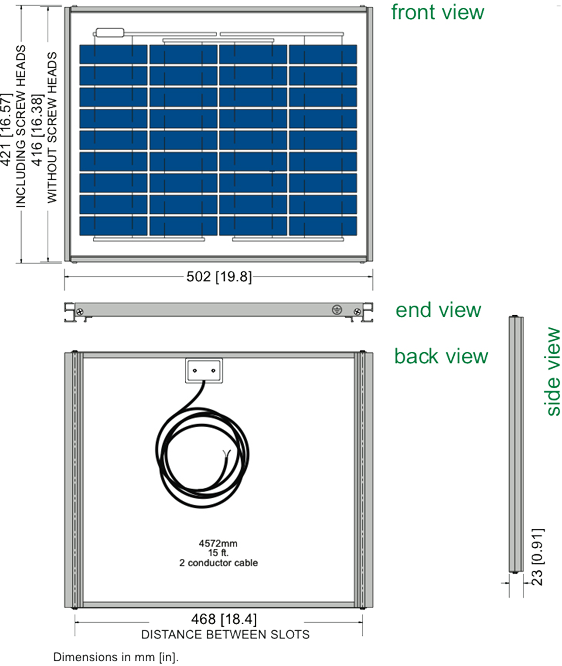

SES 420M dimensions illustration SES 420M Dependence Graphs
