| Model Number | SES-440J |
| STC Rating | 40.0 |
| PTC Rating | 0.0 |
| Open Circuit Voltage (V) | 21.8 |
| Short Circuit Current (A) | 2.54 |
| Frame Color | Silver |
| Origin | Hong Kong |
| Power % ± | -5/10 |
| (W/ft²) | 10.58 |
| Area (ft²) | 3.8 |
| Weight (lbs) | 12.7 |
| Length (in) | 25.80 |
| Width (in) | 21.10 |
| Height (in) | 2.00 |
Solar Electric Supply SES-440J Solar Panels
SKU SES-440JOur latest generation of small area modules offers the following benefits:
Built to last
From mountaintops to off-shore platforms, on weather stations in the bitter cold of Antarctica and on telephone signal repeaters in the hot Australian outback, the technology has been proven in the harshest environments.
Accessible junction box for off grid connections
J-type junction box has accessible terminals for easier module interconnections in off grid applications, and it allows fitting cable glands for various cable sections.
High reliability
Cell interconnections and diode placement use well-established industry practice and are field-proven to provide excellent reliability.
Thick, durable, scratch resistant back sheet
The thick back sheet provides extra insulation and increased resistance to protect your module against rough handling. The white polyester material lasts longer and increases energy production.
Remote Industrial Applications:
- Remote telemetry
- Cathodic protection
- Instrumentation systems
- Security sensors
- Signals
- Oil metering
- Water metering
- Residential gate openers
- Navigation aids
- Obstruction lights
ISO 9001 Certified:
ISO 9001 factory certification ensures that our manufacturing facilities use proven manufacturing and control processes.
Approval Listings and Qualifications:
- Listed to UL 1703 & ULC ORD-C1703 Standard for Safety by Intertek ETL. Class C Fire Rating.
- Approved by Intertek ETL according to FM 3611, Dec 2004, and according to CAN/CSA C22.2 No. 213-M1987, 1st Edition, Reaffirmed 2004, for use in a Class I Division 2, Group A, B, C, D Hazardous (Classified) Location.
SES Module Warranty
- Free from defects in materials and workmanship for 2 years
- 90% Min power output for 12 years
- 25 year warranty optional
*Refer to limited warranty certificate for terms and conditions
|
How to Buy the SES 440J:
|
Conduit Ready Junction Box, gaskets included, box attached to frame wall for added durability
Approved Solar Vendor For:
- US Federal Agencies
- US DOD
- SAIC
- Black & Veatch
- Grainger
- Graybar Electric
- CED
- Crescent Electric
Exostar Approved for:
- Lockheed Martin
- Boeing
- Raytheon
- Hughes
- & Many others!
We are a government approved vendor, Net 30 with PO. Government, educational and corporate P.O.s & IMPAC cards accepted.
SES 440J Solar Module Features
Heavy Duty Aluminum Frame for High Wind Speed Rating & Durability
Module Frame includes pre-drilled mounting holes for mounting frame and ground
Label on back of modules shows Approval Listings and Certification
The SES 440J is a direct bolt in replacement for the BP Solar SX 340J
SES 440J Solar Module Specifications:
| Electrical characteristics | (1)STC1000W/m2 | (2)NOCT800W/m2 |
|---|---|---|
| Maximum power (Pmax) | 40W | 28.8W |
| Voltage at Pmax (Vmpp) | 17.3V | 15.4V |
| Current at Pmax (Impp) | 2.31A | 1.85A |
| Short circuit current (Isc) | 2.54A | 2.06A |
| Open circuit voltage (Voc) | 21.8V | 19.8V |
| Module efficiency | 11.4% | |
| Tolerance Pmax | ± 10/-5% | |
| Nominal voltage | 12V | |
| Efficiency reduction at 200W/m2 | <5% reduction (efficiency 8.4%) | |
| Limiting reverse current | 2.54A | |

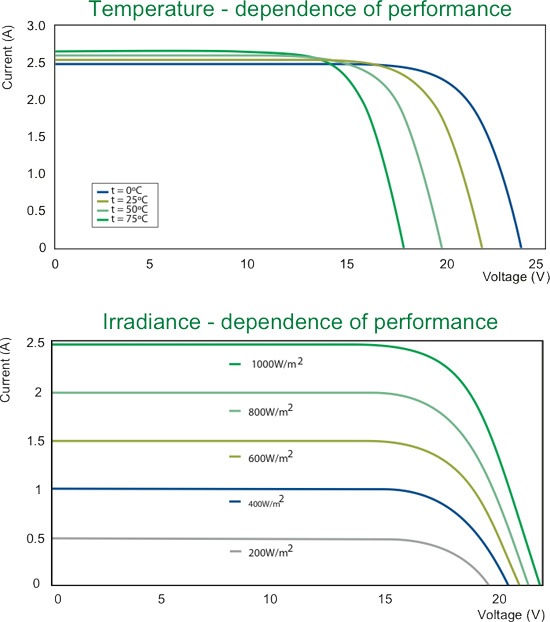

| Temperature coefficient of Isc | 0.105%/ °C | |
| Temperature coefficient of Voc | -0.360%/ °C | |
| Temperature coefficient of Pmax | -0.45%/ °C | |
| (3) NOCT | 47 ±2 °C | |
| Maximum series fuse rating | 6A | |
| Application class | Class C (according to IEC 61730-2007) | |
| Maximum system voltage | 50V | |
|
||
|
All solar modules are individually tested prior to shipment; an allowance is made within our factory measurement to account for the typical power degradation (LILD effect) which occurs during the first few days of deployment. |
||
| SES MAPPS Solar Module Mechanical characteristics | ||
| Solar cells | 36 polycrystalline silicon cells in series | |
| Front cover | High transmission 3.2mm (1/8") glass | |
| Encapsulant | EVA | |
| Back cover | White polyester | |
| Frame | Silver anodized aluminum | |
| Junction box | IP65 with 4 terminal screw connection block; accepts PG 13.5, M20 13mm (1/2") conduit, or cable fittings accepting 6-12mm diameter cable. | |
| Terminals | accept 2.5-10mm2 (8-14 AWG) wire | |

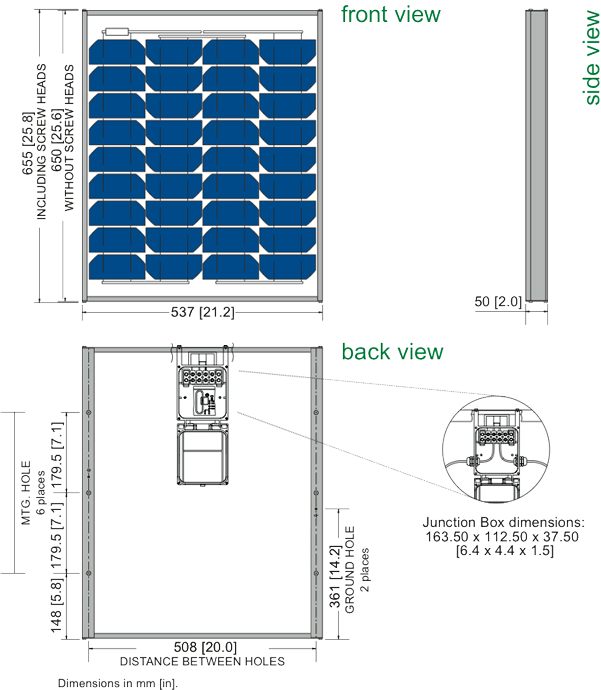

| Dimensions | 655 x 537 x 50mm / 25.8 x 21.1 x 2in | |
| Weight | 5.75kg / 12.7lbs | |
| All dimensional tolerances within ±1% unless otherwise stated. | ||
| Warranty* | ||
|
||
| SES MAPPS Solar Module Certification | ||
| Certified according to the extended version of the IEC 61215 (ed. 2), EC 61215:2005-08 (Crystalline silicon terrestrial photovoltaic modules - Design qualification and type approval) | ||
| Certified according to IEC 61730-1 and IEC 61730-2 (ed. 1), EN 61730-1:2007-05 and EN 61730-2:2007-05. (photovoltaic module safety qualification, requirements for construction and testing). | ||
| Listed to UL 1703 & ULC ORD-C1703 Standard for Safety by Intertek ETL. Class C Fire Rating. | ||
| Approved by Intertek ETL according to FM 3611, Dec 2004, and according to CAN/CSA C22.2 No. 213-M1987, 1st Edition, Reaffirmed 2004, for use in a Class I Division 2, Group A, B, C, D Hazardous (Classified) Location. | ||
|
|
