Enphase IQ Battery Energy Storage System

Powerful energy storage solution powered by the Enphase IQ Battery.

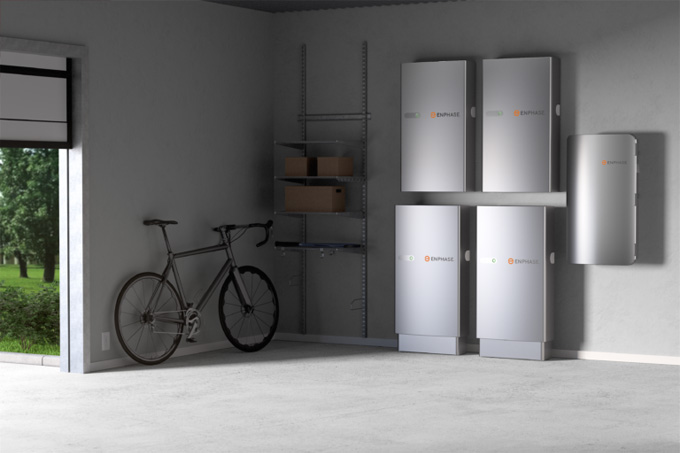

The modular architecture of the Enphase IQ Battery means you’ll get an energy storage solution that’s exactly what you need: no more, no less, no wasted costs. The system is easy to expand on as your needs change, as your family grows or you add an electric vehicle. Plus, flexible configurations work for any garage.

Enphase's high-performance energy storage solution brings you more intelligence and better value than anything else, with the industry’s lowest cost of entry and best lifetime value. It pairs seamlessly with Enphase microinverters and other solar technologies to help you make the most of your energy.

Lower upfront costs

More affordable than other storage options
Simple installation keeps extra costs low
Modular for a solution that’s exactly what you need

Higher Performance

96% round-trip efficiency
2 cycles per day for twice the value and faster payback
Most usable capacity (100% D.O.D.)

Greater Reliability

Lithium iron phosphate chemistry from Eliiy Power for long cycle life
Minimum 10-year expected life
No single point of failure

Safer

Prismatic cells from Eliiy Power are highly stable over time
Safety certified by TUV Rheinland
No high-voltage DC in system

UL 9540 Certified

The Enphase IQ Battery is the first residential energy storage system to receive the UL 9540 system certification -- a safety standard requirement issued by UL, the global safety science organization.

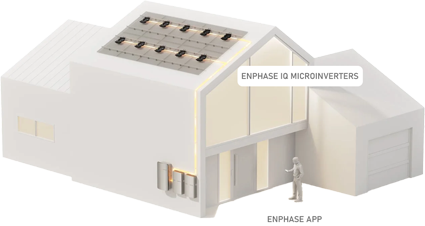

Enphase Home Energy System Components

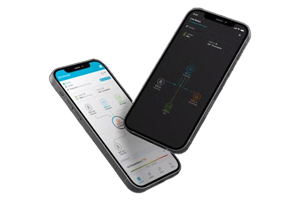

The Enphase App

Monitor your power generation, consumption, and savings instantly, or access historical reports. Adjust your system preferences and receive crucial service notifications.

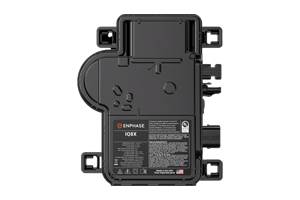

Enphase IQ Microinverters

Keep track of your power production, usage, and conservation in real-time, or retrieve past data reports. Modify your system settings and get vital service alerts.

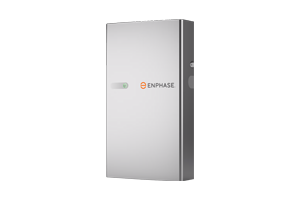

Enphase IQ Battery

Save solar energy for use whenever needed—be it during nighttime, peak hours to cut down on electricity bills, or during power outages when the grid is offline.

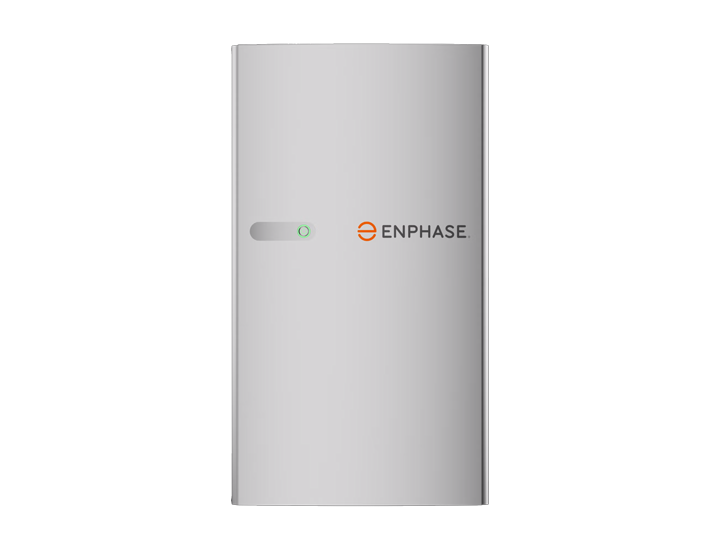

The Enphase IQ Battery 5P is capable of delivering 3.84 Kw continuous power and 7.68Kw peak power for a span of 3 seconds. Its capacity starts at 5Kw and can be stacked to deliver up to 80kWh.

IQ BATTERY 5P SPECIFICATIONS
Enphase Model Number	IQBATTERY-5P-1P-NA
Rated continuous AC output power	3.84 kVA
Peak output power	7.68 kVA (3 seconds), 6.14 kVA (10 seconds)
Maximum units per 20A branch circuit	One unit (single-phase)
Ambient operating temperature range (charging)	-4º F to 122º F
Ambient operating temperature range (discharging)	-4º F to 131º F
Chemistry	Lithium Iron Phosphate (LFP)
Dimensions	38.6 in x 21.7 in x 7.4 in
Lifting weight	146.1 lbs
Whats Included?	6 Embedded IQ8D-BAT Microinverters IQ Battery 5P cover Wall Mounting Bracket
Designed for Enphase IQ Microinverter solar panel systems. Contact us toll-free: (877) 297-0014.

Enphase IQ Battery Storage System Review

Simple

Fully integrated AC battery system
Installs and commissions easily
Supports Backup, Self-Consumption, and time-of-use (TOU) modes
Field replaceable components

Reliable

15-year limited warranty
Cools passively with no moving parts or fans
Uses wired communication for fast and consistent connection
Updates software and firmware remotely

Powerfull

Provides 3.84 kVA continuous and 7.68 kVA peak power
Doubles the available power per kWh of prior generations of IQ Battery
Includes six embedded IQ8D-BAT Microinverters

Safe

Uses lithium iron phosphate (LFP) chemistry for maximum safety and longevity
Evaluated to UL 9540A for large scale fire testing and reduced
separation distance as required in 2021 IRC R328.3.1, 2021 IFC
1207.1.5, and 2023 NFPA 855 15.3.1 and 9.1.5.

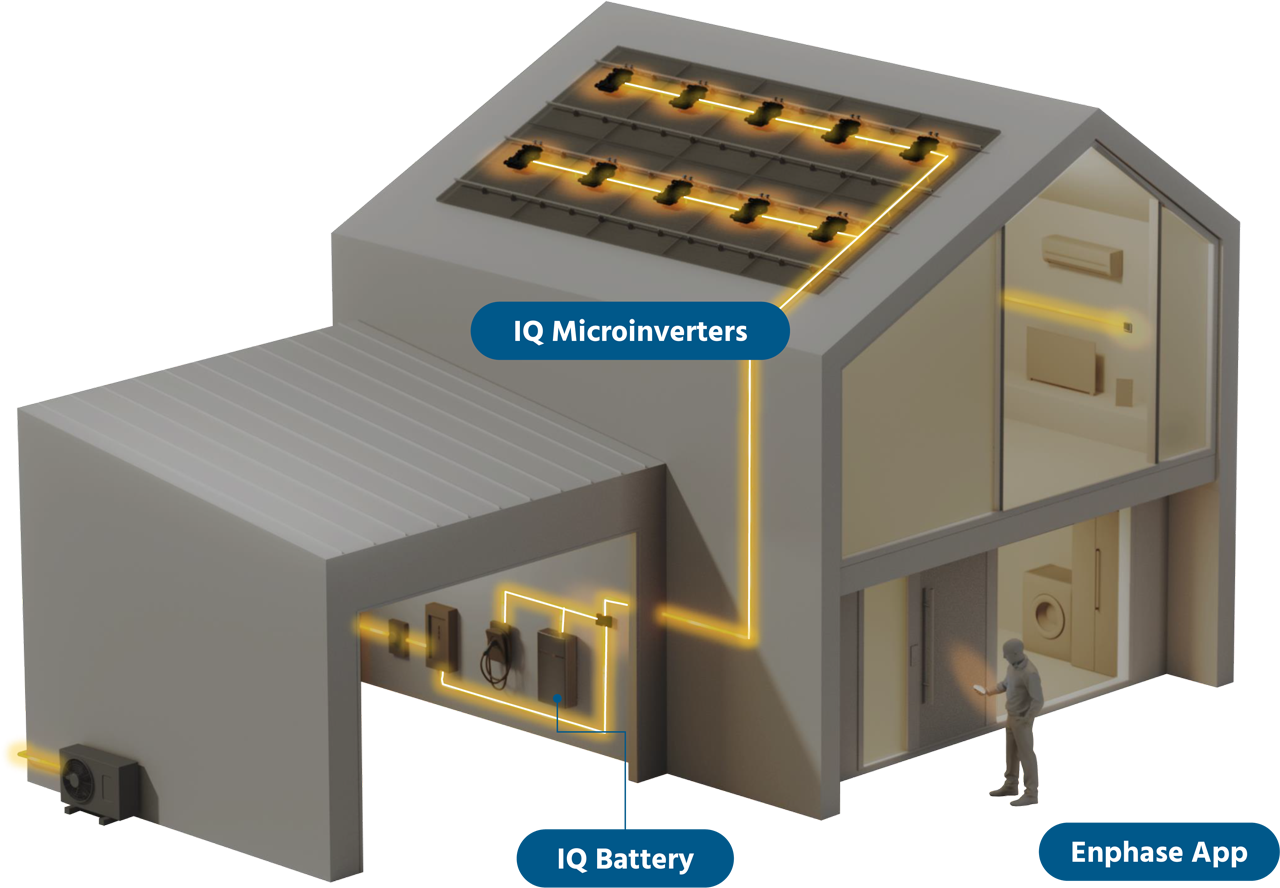

Enphase IQ Powered Energy System

The Enphase Energy System integrates solar, batteries, and software into a unified package, empowering you to produce, utilize, save, and even sell your own energy via a smart mobile app. With Enphase, you can decrease your utility bills and diminish your carbon footprint, ensuring uninterrupted power supply even amidst unpredictable weather or grid issues.

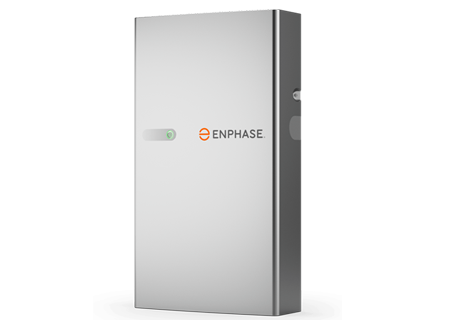

Check out the new Enphase IQ Battery 5P!

Common Battery Storage Applications

Self-Consumption

With self-consumption, you store your excess solar power to use later.

Time of Use Optimization

Time of use optimization refers to drawing energy from the grid when energy prices are at their lowest, such as late at night. The lower cost energy is stored for use later by the utility when power is more expensive.

Battery Backup

Battery backup energy storage is a method one would use to store power to use during a power outage.

AC Coupled vs. DC Coupled Energy Storage System

Energy storage systems come in two varieties: AC-coupled or DC-coupled.

AC-coupled systems connect to a solar array on the AC side, while DC-coupled systems connect on the DC side. The most obvious advantage of DC-coupled systems is that they allow both the solar array and battery to be served by a single inverter. AC-coupled systems offer equivalent efficiency to DC-coupled systems with advantages in flexibility, reliability, and safety. The Enphase IQ battery is an example of an AC-coupled system, while LG Chem RESU StorEdge is an example of a DC-coupled system.

AC-coupled system advantages

Minimizes high-voltage DC indoors
Solution can be retrofitted to existing solar installations
More incrementally scalable

DC-coupled system advantages

One inverter handles all conversion for PV and batteries.
DC Power may be tapped into directly
Equivalent efficiency to AC-coupled systems

Start small. Go big. Add more batteries as your energy needs grow over time.

Used Energy Storage Terms

Demand charges are the charges that commercial customers pay for the peak amount of power (load) that they draw from the grid. Demand charges can be a substantial portion of a utility bill; a battery helps lower them by allowing the commercial building to draw from the battery instead of the grid during peak times.

Frequency regulation happens when the utility calls upon batteries to inject power into the grid or take power off the grid to help the grid maintain a stable frequency. Battery owners are compensated for this service.

Lithium ion is a commonly used term to describe any type of lithium-based rechargeable battery. The name refers to lithium ions that are shuttled between cathode and anode when the battery is charged and discharged.

Load shifting is the process of shifting the time when energy is used. For example, running the dishwasher at night to take advantage of off-peak energy prices.

Peak shaving is the process of reducing peak power usage.

Enphase IQ Energy System Components

IQ Battery 3T ENCHARGE-3T-1P-NA	IQ Battery 5P IQBATTERY-5P-1P-NA

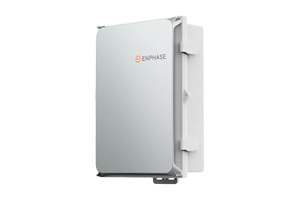

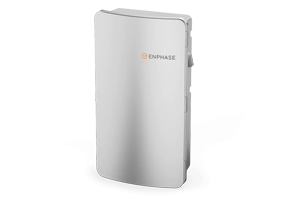

IQ Combiner 5/5C X-IQ-AM1-240-5	Enphase IQ System Controller 3 or 3G SC200G111C240US01

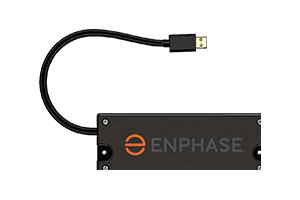

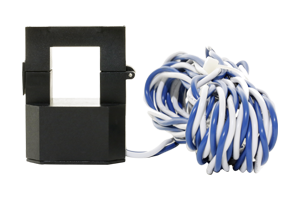

Wireless Communications Kit COMMS-KIT-01	Consumption Current Transformer (CT) CT-200-SPLIT
IQ Series Microinverters	Enphase App
