Infinity Rack Sunlounge Pavilion Specifications & Options

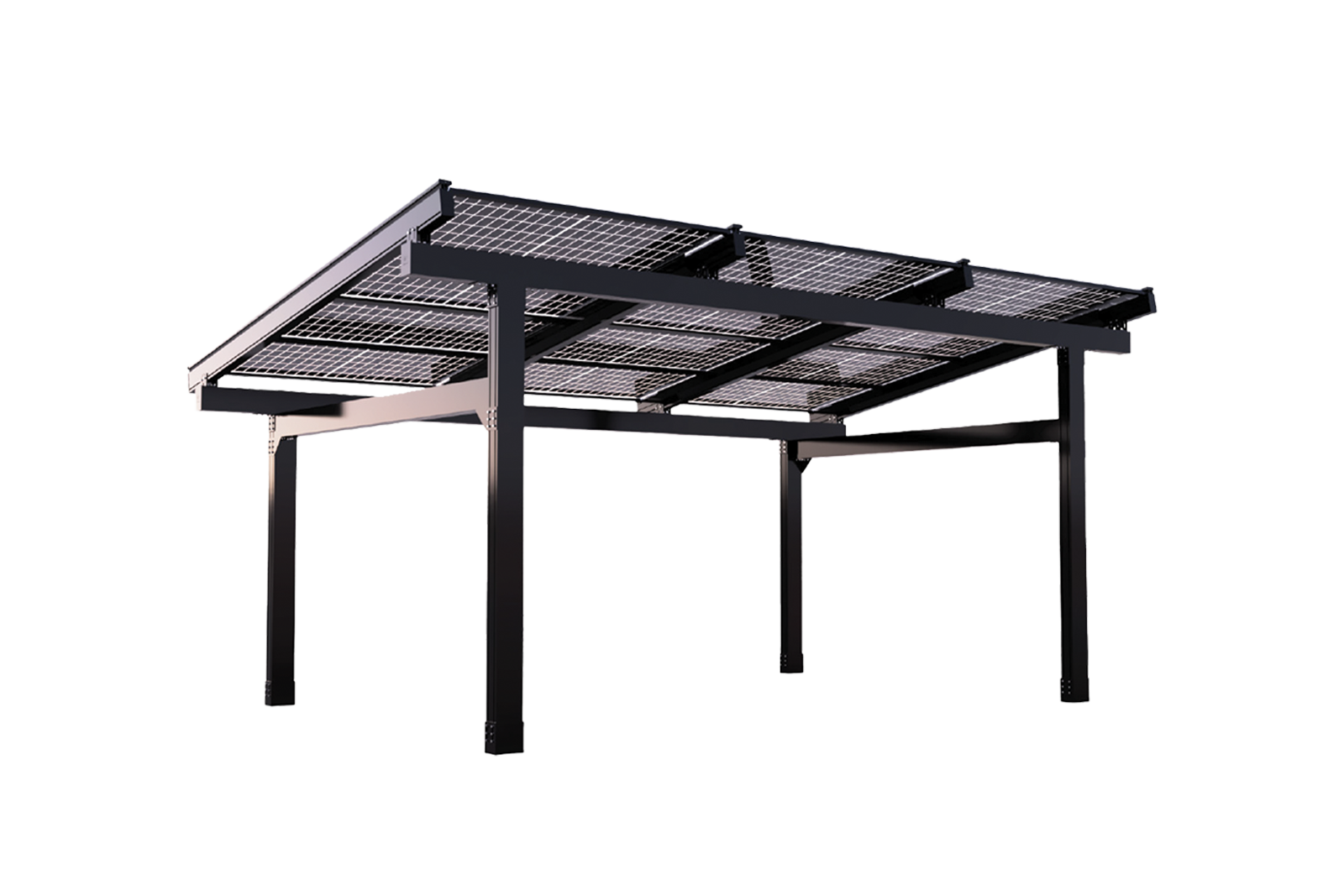

![Infinity Rack Sunlounge Pavilion Spec Image](/media/wysiwyg/ir-sunlounge-specifications-display.png)
SunLounge Pavilion
The Infinity Rack SunLounge stands out as a versatile and robust solar pavilion solution. With a maximum span of 22 feet on the Frame Beam and 18 feet on the Roof Beam, it offers impressive coverage while maintaining structural integrity. The SunLounge can be configured to reach heights of up to 14 feet, accommodating a wide range of vehicles and outdoor spaces.
Sunlounge Pavilion Brochure
Product Details | Specification |
---|---|
Max Span on Frame Beam | 22ft |
Max Span on Roof Beam | 18ft |
Max Clear Height | 14ft |
Max Structure Length | 300ft |
Max Structure Depth | 30ft |
Powdercoat | 2604 (Optional 2605) |
Color Options | White, Beige, Black, 2 tone |
Aluminum Alloy & Temper | 6005A T6 (Roofbeam) 6063-T6 (All other components) |
Max Wind Speed | 195 MPH |
Max Snow Load/Span | 40PSF @ 22ft, 60PSF @ 18ft, 100psf @ 14ft |
8'-10' Pavilion Options
Model Number | # of Modules | Module Layout | Depth | Width | SQ Ft | Watts |
---|---|---|---|---|---|---|
INFR12-P-4x3 | 12 | 4 X 3 | 15.2ft | 23.5ft | 356.4ft | 6,900 |
INFR15-P-5x3 | 15 | 5 X 3 | 18.8ft | 23.5ft | 442.6ft | 8,625 |
INFR16-P-4x4 | 16 | 4 X 4 | 15.2ft | 31.0ft | 470.2ft | 9,200 |
INFR20-P-5x4 | 20 | 5 X 4 | 18.8ft | 31.0ft | 583.8ft | 11,500 |
INFR20-P-4x5 | 20 | 4 X 5 | 15.2ft | 38.7ft | 586.4ft | 11,500 |
INFR24-P-4x6 | 24 | 4 X 6 | 15.2ft | 46.5ft | 705.3ft | 13,800 |
INFR25-P-5x5 | 25 | 5 X 5 | 18.8ft | 38.7ft | 728.2ft | 14,375 |
INFR28-P-4x7 | 28 | 4 X 7 | 15.2ft | 54.2ft | 821.5ft | 16,100 |
INFR30-P-5x6 | 30 | 5 X 6 | 18.8ft | 46.5ft | 875.8ft | 17,250 |
INFR32-P-4x8 | 32 | 4 X 8 | 15.2ft | 62.0ft | 940.3ft | 18,400 |
INFR35-P-5x7 | 35 | 5 X 7 | 18.8ft | 54.2ft | 1020.1ft | 20,125 |
INFR40-P-5x8 | 40 | 5 X 8 | 18.8ft | 62.0ft | 1167.7ft | 23,000 |
INFR40-P-4x10 | 40 | 4 X 10 | 15.2ft | 77.5ft | 1175.4ft | 23,000 |
INFR50-P-5x10 | 50 | 5 X 10 | 18.8ft | 77.5ft | 1459.6ft | 28,750 |
Solar Electric Supply: Complete Canopy-Pavilion Solutions Under One Roof
At Solar Electric Supply, we go beyond just offering the SunLounge Pavilion structure. We're your one-stop shop for all the components needed to create a complete solar energy system for your carport or pavilion project. Our comprehensive inventory includes:
![SES Panels for Pavilion Structures](/media/wysiwyg/ir-energy-hub-energy-panel-display.jpg)
Top Brand Solar Panels
We carry a wide selection of high-efficiency solar panels from leading manufacturers, ensuring optimal energy production for your SunLounge Pavilion.
![SES Inverters for Pavilion Structures](/media/wysiwyg/ir-energy-hub-energy-inverter-display.jpg)
Solar Inverters
Choose from our range of reliable inverters to convert the DC power generated by your solar panels into usable AC electricity for your home or business.
![SES EV Chargers for Pavilion Structures](/media/wysiwyg/ir-energy-hub-energy-ev-charging-display.jpg)
EV Charging Stations
Complement your solar pavilion or carport with electric vehicle charging capabilities. We offer various EV charger models to suit different needs and vehicle types.
![SES Solar Battery Storage for Pavilion Structures](/media/wysiwyg/ir-energy-hub-energy-storage-display.jpg)
Solar Battery Storage Systems
Maximize the utility of your solar-powered pavilion by adding energy storage. Our battery options allow you to store excess energy for use during low-sun hours or grid outages.
The Infinity Rack Sunlounge 4x4
