Elevate Your Property with Energy-Generating Carports


Solar Electric Supply is proud to offer SunPark Aluminum Carports, a superior solution for vehicle protection that goes beyond conventional carports. These structures not only shield your vehicles from the elements but also generate clean energy, making them an ideal choice for both residential and commercial properties. SunPark carports represent a practical approach to combining vehicle protection with sustainable energy production, particularly beneficial for electric vehicle owners looking to offset charging costs.

SunPark Aluminum Carports feature a mechanically watertight design with internal wire chaseways, ensuring both functionality and aesthetic appeal. These robust structures are built to withstand extreme weather conditions, including high winds and heavy snow loads, providing reliable performance in various environments. With their sleek design, SunPark carports enhance your property's exterior while offering practical benefits.

Infinity Rack Sunpark Carport Solar Structure
Infinity Rack Sunpark Solar Structure
Infinity Rack Sunpark Solar Structure

Infinity Rack Sunpark Aluminum Carport Specifications & Options

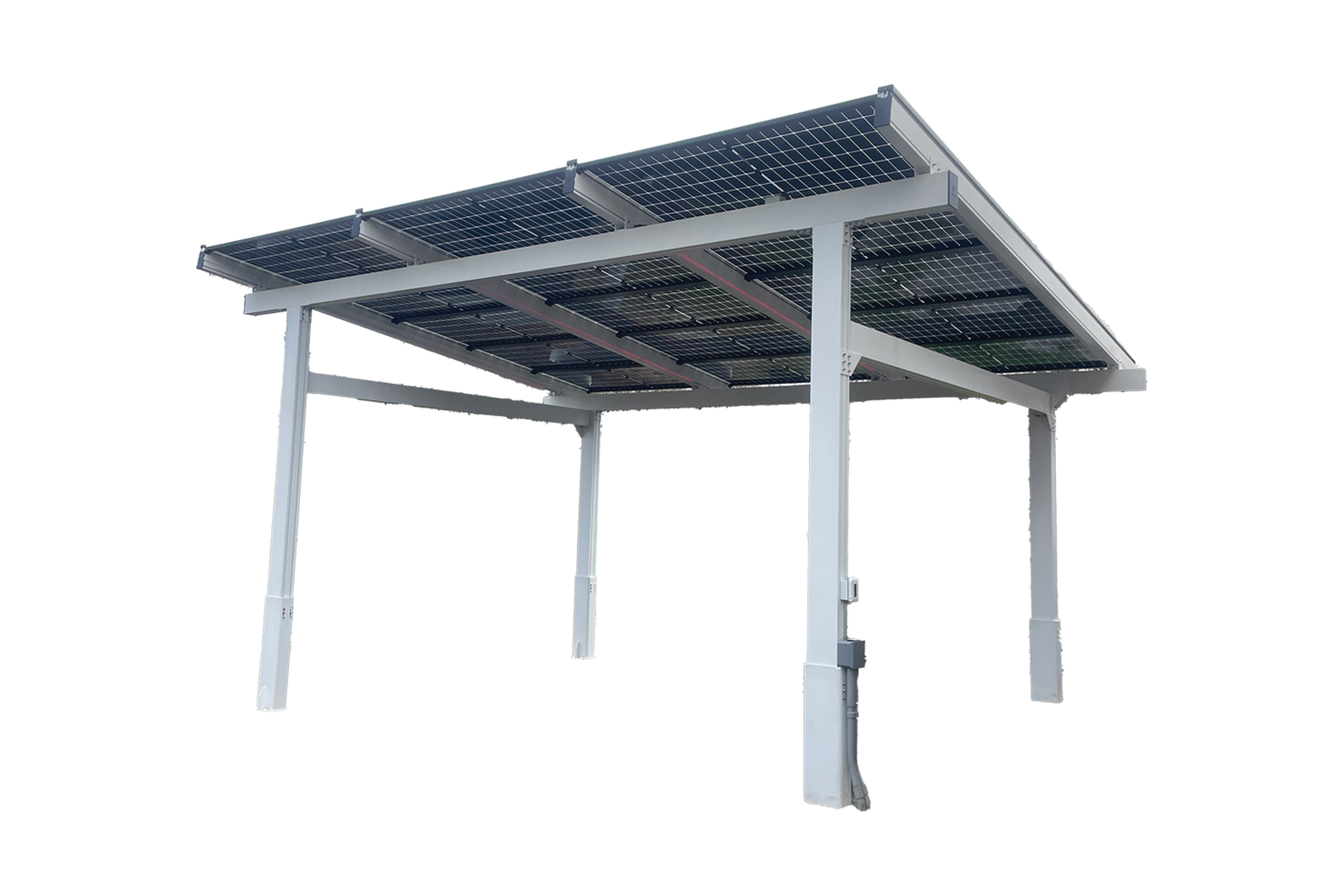

Infinity Rack Sunpark Display Image
Residential & Commercial

Sunpark Aluminum Carports

The Infinity Rack SunPark is an advanced aluminum carport solution designed for durability and versatility. The structure can reach heights of up to 14 feet, easily accommodating RVs, trucks, and buses. This flexibility extends to its overall dimensions, with the ability to stretch up to 300 feet in length and 30 feet in depth, making it suitable for both residential and commercial applications.

SunPark Carport Brochure

  SunPark Carport Specifications
Product Details Specification
Max Span on Frame Beam 22ft
Max Span on Roof Beam 18ft
Max Clear Height 14ft
Max Structure Length 300ft
Max Structure Depth 30ft
Powdercoat 2604 (Optional 2605)
Color Options White, Beige, Black, 2 tone
Aluminum Alloy & Temper 6005A T6 (Roofbeam) 6063-T6 (All other components)
Max Wind Speed 195 MPH
Max Snow Load/Span 40PSF @ 22ft, 60PSF @ 18ft, 100psf @ 14ft

10'- 12' Carport Options

Model Number # of Modules Module Layout Depth Width SQ Ft Watts
INFR15-C-5x3 15 5 X 3 18.8ft 23.5ft 442.6ft 8,625
INFR20-C-5x4 20 5 X 4 18.8ft 31.0ft 583.8ft 11,500
INFR25-C-5x5 25 5 X 5 18.8ft 38.7ft 728.2ft 14,375
INFR30-C-5x6 30 5 X 6 18.8ft 46.5ft 875.8ft 17,250
INFR35-C-5x7 35 5 X 7 18.8ft 54.2ft 1020.1ft 20,125
INFR40-C-5x8 40 5 X 8 18.8ft 62.0ft 1167.7ft 23,000
INFR50-C-5x10 50 5 X 10 18.8ft 77.5ft 1459.6ft 28,750

Solar Electric Supply: Complete Solar Carport-Canopy Solutions Under One Roof

At Solar Electric Supply, we go beyond just offering the carport canopy structures. We're your one-stop shop for all the components needed to create a complete solar energy system for your carport or pavilion project. Our comprehensive inventory includes:

SES Panels for Pavilion Structures

Top Brand Solar Panels

We carry a wide selection of high-efficiency solar panels from leading manufacturers, ensuring optimal energy production for your Sunpark All Aluminum Carport.

SES Inverters for Pavilion Structures

Solar Inverters

Choose from our range of reliable inverters to convert the DC power generated by your solar panels into usable AC electricity for your home or business.

SES EV Chargers for Pavilion Structures

EV Charging Stations

Complement your solar carport or pavilion with electric vehicle charging capabilities. We offer various EV charger models to suit different needs and vehicle types.

SES Solar Battery Storage for Carport Structures

Solar Battery Storage Systems

Maximize the utility of your solar-powered carport by adding energy storage. Our battery options allow you to store excess energy for use during low-sun hours or grid outages.
