Hyundai Green Energy HiA-S390HI 390W Solar Panel
Skip to the beginning of the images gallery
Hyundai HI solar panel specifications
Model Number HiA-S390HI
STC Rating 390.0 Watts
NMOT* Rating 292.5 Watts
Open Circuit Voltage (Voc) 48.00 Volts
Short Circuit Current (Isc) 10.08 Amps
Frame Color Clear Anodized Aluminum
Cell Type Monocrystalline
Origin Korea
Power Tolerance -0 / +3%
Module Efficiency 19.14%
Area 21.66 Sq ft
Weight 50.71 lbs
Length 79.06 in
Width 39.45 in
Height 1.57 in.
Nominal Module Operating Temperature NMOT = 75% of STC Rating

Commercial Hyundai Solar Systems

We design & supply complete commercial PV systems using
Hyundai HI Series solar modules.

(877) 297-0014

Hyundai Green Energy HiA-S390HI 390W Solar Panel

SKU HiA-S390HI
Hyundai Heavy Industries HHI Green Energy

Hyundai HiA-S390HI 390W Solar Panel

Hyundai HI Series
  • 144 half cells (2 parallel x 72 half cells in series)
  • Anti-reflection coated glass
  • Sturdy aluminum alloy type 6063 frame
  • 4mm² (12AWG) cables with weatherproof connectors
  • IP67 weatherproof junction box (UL Listed)
  • 3 bypass diodes to prevent power decrease by partial shade
  • The HiAS390HI features a clear anodized aluminum frame
  • Fast and inexpensive mounting, delivered ready for connection
  • Made in Hyundai Heavy Industries' Factory in Korea
more low light power
More Low Light Power Generation
UL 1500V
UL 1,500V Saves BOS Costs
commercial utility industrial
For Commercial & Utility Applications

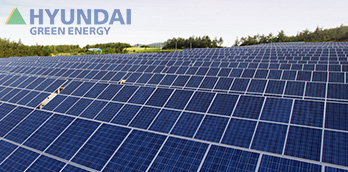

ground mounted Hyundai solar panels

Construction

Front : High transmission low-iron tempered glass
Encapsulant : EVA
Back Sheet : Weatherproof film
Frame: Anodized aluminum alloy type 6063

HiA-S390HI Features

PERL

PERL Technology

PERL technology provides ultra-high efficiency with better performance in low irradiation. Maximizes installation capacity in limited space.
Anti LID Anti PID

Anti-LID / PID

Both LID (Light Induced Degradation) and PID (Potential Induced Degradation) are strictly eliminated to ensure higher actual yield during the module's lifetime.
mechanical strength

Mechanical Strength

Tempered glass and reinforced frame design withstand rigorous weather conditions such as heavy snow and strong wind.
warranty

Reliable Warranty

Global brand with powerful financial strength provides a reliable 25-year warranty.
corrosion resistant

Corrosion Resistant

Various tests under harsh environmental conditions such as ammonia and salt-mist passed.
UL

UL / VDE Test Labs

Hyundai’s R&D center is an accredited test laboratory of both UL and VDE.

Hyundai Heavy Industries HiAS390HI Solar Panel Warranty

Hyundai made in Korea
Hyundai Solar Cells
Made in Korea
10-Year Product Warranty

· On materials and workmanship

25-Year Performance Warranty

· Initial year: 97%
· Linear warranty after second year: with 0.7% annual degradation
80% is guaranteed up to 25 years

Hyundai HiS RI Series Solar Panel Certifications

· IEC 61215 and IEC 61730 New Standard by TUV SUD
· UL 1703 Listed by UL, Type 1(for Fire Class A)
• Output power tolerance +3/-0 %
• ISO 9001:2000 and ISO 14001:2004 Certified
• Advanced Mechanical Test (5,400 Pa)
• IEC 62716 (Ammonia Corrosion Resistance Test) Passed
• IEC 61701 (Salt Mist Corrosion Test) Passed
• Potential-Induced Degradation (PID) Test Passed

Accredited Test Lab
• VDE (Test Data Acceptance Program)
• UL (Witness Test Data Program)

Contact us toll-free: (877) 297-0014

Details
Hyundai Green Energy

Hyundai Green Energy Solar Panel Reliability Testing

Hyundai's High Reliability Test Standards

Reliability Test IEC Standards Hyundai Standards
UV Exposure Test 15kWh/m² Long Term: 1,250kWh/m²
Desert Condition: 3,250kWh/m²
Thermal Cycling Test TC 200 Cycles /
HF 10 Cycles		 TC 600 Cycles /
HF 30 Cycles
Damp Heat Test 1,000 hours 3,000 hours

Hyundai solar panel sunset

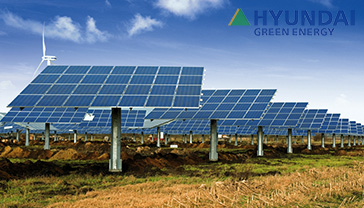

pole mounted Hyundai solar panels



Contact us toll-free: (877) 297-0014



Thoroughly Tested by Hyundai

Hyundai solar panel field installation test
Hyundai Field Installation Test

Performance Test
Hyundai Heavy Industries (HHI) conducts a maximum power, temperature coefficient, low irradiation, NOCT, field test in order to evaluate performance of Hyundai's solar panels.

  • Solar Simulator Test
  • Maximum Power Test
  • EL Test
  • Field Installation Test
  • NOCT
  • Field Test for Roof
HHI solar panel field performance test
Hyundai Field Performance Test

Field Performance Test
Hyundai conducts field performance tests at their factory in South Korea.

  • Module Aging Test / Inverter Motion Test
  • Generation Test Per Racking
  • Web Monitoring Test / Tracking System (Double Axis)
  • Tracking System / Fixed System
  • PV Tower System / Fixed System
HiS solar Thermal cycling test
Thermal Cycling Chamber

Reliability Test
HHI conducts UV exposure, thermal cycling, humidity freeze, damp heat and pressure cooker tests to evaluate the reliability of their solar panels.

  • UV Exposure Test
  • Thermal Cycling Test
  • Thermal Cycling Chamber
  • Accelerated Aging Test
  • Damp Heat Test
HHI mechanical load test
Mechanical Load Test

Safety Test
HHI Conducts insulation, wet leakage current, mechanical load, hail and hot spot endurance tests to evaluate the safety of their solar panels.

  • Wet Leakage Current Test
  • Hail Test
  • Hot Spot Endurance Test
  • Mechanical Load Test

Different Hyundai solar modules, PV mount & inverter available at low wholesale prices.



Contact us: (877) 297-0014 - All Hyundai solar panel systems can be custom designed.
