Kyocera Model Number	KD255GX-LFB2
STC Rating	255.0 Watts
PTC Rating	228.3 Watts
Open Circuit Voltage (Voc)	37.6 Volts
Short Circuit Current (Isc)	9.09 Amps
Frame Color	Black
Power Tolerance	-0 / +5%
Area	17.7 ft²
Weight	44.1 lbs.
Length	65.43 in.
Width	38.98 in.
Height	1.8 in.

KD255GX-LFB2 Solar Panel Systems

Systems include grid-tie inverter, module mount, MC cables, disconnects and breakers. Support by our friendly knowledgeable staff to help with your Kyocera solar panel system questions is also included!
Contact us for today's wholesale specials!

Kyocera KD255GX-LFB2 Solar Panel

Name: Kyocera KD255GX-LFB2 Solar Panel
SKU: KD255GX-LFB2

SKU KD255GX-LFB2

The Kyocera KD255GX-LFB2 - Black Frame, Sleek Look

• The black frame is anodized and UV stabilized
• 0/+5% Power Tolerance
• 228.3 CEC Rating
• Supported by major mounting structure manufacturers
• Easily accessible grounding points on all four corners for fast installation
• Proven junction box technology with 12 AWG PV wire to work with transformerless grid-tie inverters
• Quality locking MC4 plug-in connectors to provide safe and quick connections

The KD255GX-LFB2 solar panel is reliable

• Proven superior field performance
• Tight power tolerance
• Only module manufacturer to pass rigorous long-term testing performed by TÜV Rheinland

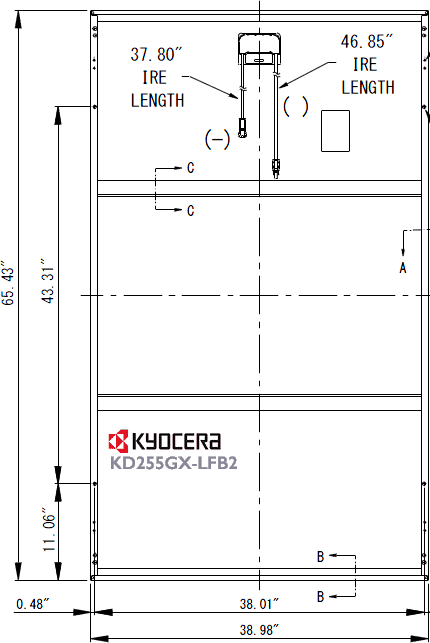

Kyocera KD255GX-LFB2 Dimensions

Kyocera KD255GX-LFB2 solar panel

Attachments Details

Kyocera KD 200-60F Series

Kyocera KD255GX-LFB2 Solar Panel Qualifications and Certifications

UL Listing
QIGU.E173074
NEC 2008 Compliant, UL 1703, ISO 9001, and ISO 14001
UL1703 Certified and Registered, UL Fire Safety Class C

solar module info

Record High Performance, Record Low Price
As a pioneer with over 35 years in solar module research Kyocera repeatedly achieves world record solar cell efficiencies. Kyocera proves to be a value leader in solar panel system technologies.

Contact us for discount pricing, solar module system design or reviews for the Kyocera KD255GX-LFB2 black frame solar panel.
