MISSION SOLAR ENERGY
385W MSE PERC 66 6BB Monocrystalline
| Mission Solar Model Number | MSE385SX5R |
| Power Output | 385.0 Watts |
| Module Efficiency | 19.3 |
| Tolerance | 0˜+3% |
| Short Circuit Current (Isc) | 10.97 Amps |
| Open Circuit Voltage | 45.03 |
| Rated Current | 10.43 |
| Rated Voltage | 36.93 |
| Fuse Rating | 20 |
| Area | 21.64 ft² |
| Weight | 49.0 lbs. |
| Length | 75.1 in. |
| Width | 41.50 in. |
| Height | 1.6 in. |
Commercial Solar Systems
Complete ground-mounted commercial Mission Solar Energy solar panel systems. Contact our experienced staff for assistance.
Toll-Free: (877) 297-0014

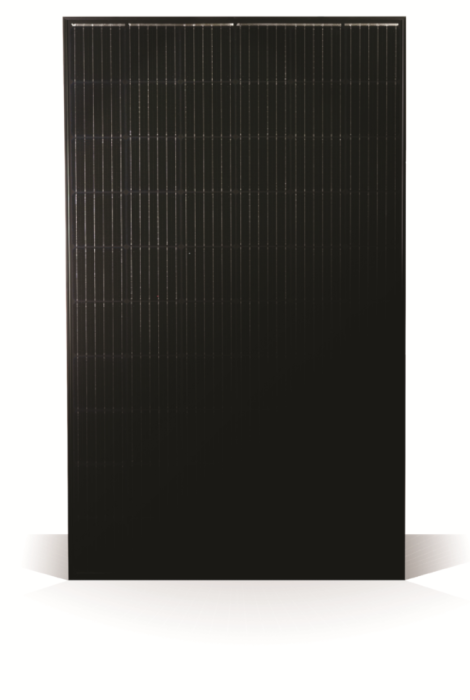

Mission Solar MSE385SX5R 385W PERC 66 Solar Panel
SKU MSE385SX5R
Mission Solar MSE385SX5R Black 385W Solar Panel
High-Power Output. Made in the USA.
The MSE385SX5R PERC 66 mono-crystalline solar panel is a 66 cell solar panel with the highest power output in its class. It's high efficiency and certified reliability make it ideal for utility grid-tied installations including ground-mounted and commercial rooftop solar panel systems.
Mission Solar Energy solar panels receive multiple quality checks throughout the manufacturing process and are subject to stringent quality and reliability testing. Each product is tested to 3X IEC standards and backed by an independent 25-year linear warranty.
Mission Solar MSE385SX5R Solar Panel Features
- High peak power output of 385 watts
- Resistance to salt mist corrosion
- Advanced technology including PERC and 6 busbars
- Anodized Black aluminum frame
- Passivated Emitter Rear Contact
- Up to 5,400 Pa front load & 3,600 Pa back load
- Qualifies for the Buy American Act
Buy American Act & American Recovery and Reinvestment Act
Certified Reliability
Tested to UL61730 & IEC standards. PID Resistant.
PERC w/ 6-Busbar Technology
Passivated Emitter Rear Cell (PERC) technology provides excellent power output through advanced cell architecture. 6 Busbars across each PERC solar cell adds more improvement in efficiency than ever.
Extreme Weather Resilience
5631 Pa snow load (117 psf) tested load to UL1703. 185 mph wind rating.
American Quality
Mission Solar Energy is based in San Antonio, TX. Whenever possible, they purchase from local or U.S. vendors to amplify the impact on the U.S. economy.
All Mission Solar Energy products exceed International Electrotechnical Commission (IEC) standards by three times the minimum standard.
Mission Solar Energy Warranty
Degradation guaranteed not to exceed 2%
in year one and 0.58% annually from years two to 30 with 84.08% capacity guaranteed in year 25.
MSE385SX5R Solar Panel Certifications
Product: IEC 61215/ IEC 61730/ IEC 61701 UL 61730
UL Fire Rating: Type 1
Learn more about Mission Solar panels.
Wholesale Mission Solar MSE385SX5R solar panel systems available.
Contact us toll-free: (877) 297-0014
Contractor Discounts Available · Mission Solar Panels
Contact us for sales, quantity discounts and expert reviews for any Mission Solar MSE385SX5R solar panel.
