SolarEdge S1201 S-Series
| Model Number | S1201 |
| Rated Input DC Power | 1200 W |
| Maximum Input Voltage | 125 V |
| MPPT Operating Range | 12.5 - 105 V |
| Maximum Output Current | 18 A |
| Maximum Output Voltage | 80 V |
| Maximum Efficiency | 99.5% |
| Operating Temperature Range | -40 to +85°C |
| Dimensions (W x L x H) | 129 x 155 x 59 mm |
| Weight | 1106 g |
| Protection Rating | IP68 / NEMA6P |
| Compliance | NEC 2014 - 2023, FCC Part 15, UL1741, UL3741 |
REC Solar System Prices
Solar Electric Supply is an REC Authorized Platinum Distributor

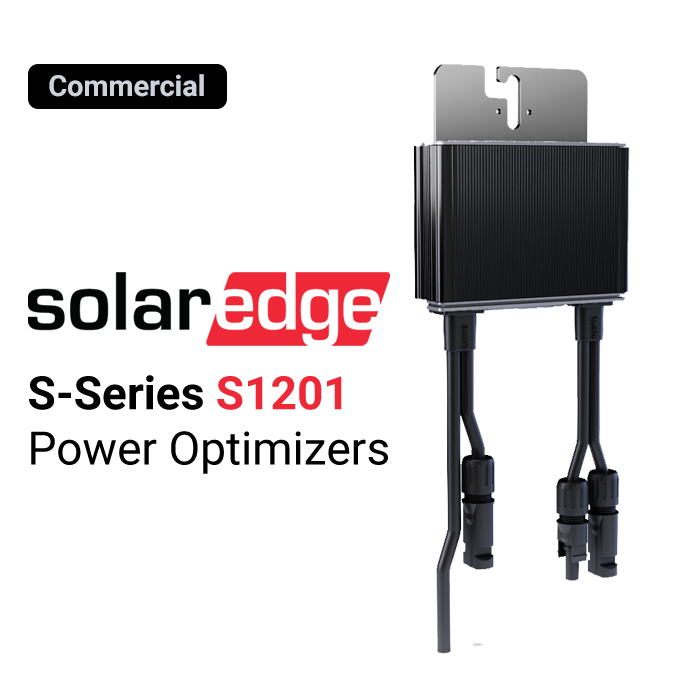

SolarEdge S1201 Commercial Power Optimizer
SKU SOLAR-EDGE-S1201-COMMERCIAL-POWER-OPTThe SolarEdge S1201 Power Optimizer
The SolarEdge S1201 Power Optimizer is an advanced solution designed for commercial and large field solar installations. As SolarEdge's most advanced and cost-effective power optimizer for these applications, the S1201 offers superior energy yields, enhanced safety features, and lower balance of system (BoS) costs. By optimizing power at the module level, the S1201 mitigates power losses due to mismatch, shading, or soiling, ensuring optimal performance of each solar panel in your system.
Engineered to work seamlessly with SolarEdge commercial three-phase inverters, the S1201 Power Optimizer provides efficient and reliable performance. Its ability to support high power and bifacial PV modules, coupled with 100% system visibility through module-level monitoring, makes it an effective choice for businesses and large-scale installations looking to maximize their solar investment.
SolarEdge S1201 Optimizer Features
- SafeDC™ Technology: Designed to automatically reduce high DC voltage to touch-safe levels upon grid or inverter shutdown.
- Sense Connect Technology: Identifies abnormal thermal events in the connector to prevent electric arcs, enhancing system safety.
- Dual Module Support: Supports connection of two PV modules in series for easy cable management and fast installation times.
- Flexible System Design: Enables maximum space utilization with up to 2x longer string lengths, 50% less cables, fuses, and combiner boxes.
- Greater Energy Yields: High efficiency (99.5%) with module-level Maximum Power Point Tracking (MPPT) for maximized system energy production.
SolarEdge S-Series S1201 Warranty
- 25-year warranty
- 25-year power output warranty
- Superior efficiency of 99.5%
SolarEdge S1201 Power Optimizer Review
The SolarEdge S1201 Power Optimizer represents a significant advancement in commercial solar technology. By integrating cutting-edge features like SolarEdge Sense Connect and SafeDC™, it substantially enhances system safety while streamlining the installation process. The S1201's ability to perform DC optimization at the module level ensures that each panel in your solar array operates at peak efficiency, regardless of environmental challenges like partial shading or debris accumulation.
A key highlight of the S1201 is its high power capacity, designed to handle up to 1200W. This makes it particularly well-suited for use with the latest high-wattage and bifacial panels, allowing businesses to maximize power density in their solar installations. The intelligent monitoring system provides module-level visibility, enabling both system owners and installers to quickly identify and address any issues, minimizing system downtime and optimizing energy production.
Learn more about the SolarEdge Commercial S-Series Power Optimizers
Different solar panels, PV mount & inverter systems available at low wholesale prices
Contact us for sales, quantity discounts and expert reviews for the SolarEdge S1201 Power Optimizer.
