SolarEdge S-Series S650B
| Model Number | S650B |
| Rated Input DC Power | 650 W |
| Maximum Input Voltage | 85 V |
| MPPT Operating Range | 12.5 - 85 V |
| Maximum Output Current | 15 A |
| Maximum Output Voltage | 80 V |
| Maximum Efficiency | 99.5% |
| Operating Temperature Range | -40 to +85°C |
| Dimensions (W x L x H) | 129 x 165 x 45 mm |
| Weight | 790 g |
| Protection Rating | IP68 |
| Compliance | FCC Part 15 Class B, IEC62109-1 |
REC Solar System Prices
Solar Electric Supply is an REC Authorized Platinum Distributor

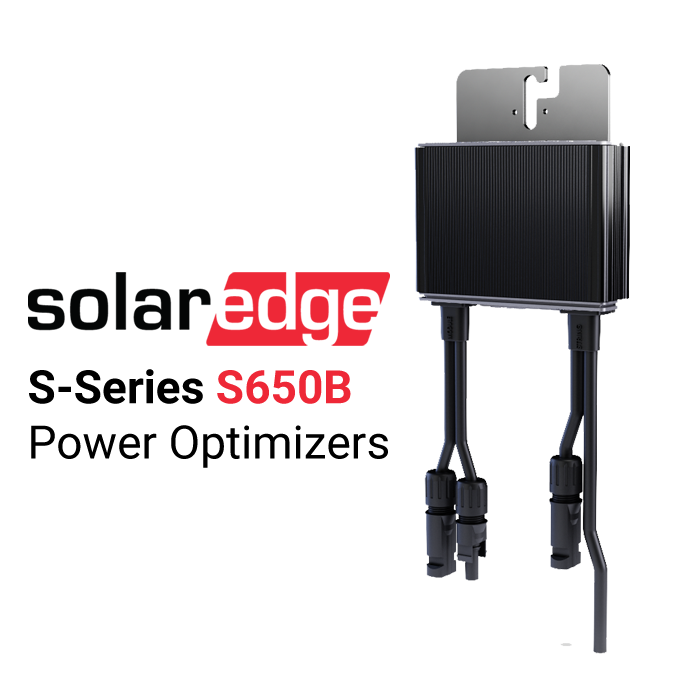

SolarEdge S650B Residential Power Optimizer
SKU SOLAR-EDGE-S650B-RESIDENTIAL-POWER-OPTThe SolarEdge S650B Power Optimizer
The SolarEdge S650B Power Optimizer is a high-capacity solution designed for residential solar installations, offering advanced features to maximize energy production and system safety. As a key component of SolarEdge's innovative S-Series, this power optimizer incorporates enhanced safety measures, simplified wiring, and intelligent remote monitoring capabilities. By optimizing power at the module level, the S650B effectively mitigates power losses caused by mismatch, shading, or soiling, ensuring each solar panel in your system performs at its peak.
Engineered specifically to work in tandem with SolarEdge residential inverters, the S650B Power Optimizer represents the pinnacle of solar technology. Its ability to boost panel-level production, combined with comprehensive system visibility through panel-level monitoring, makes it an ideal choice for homeowners looking to maximize their solar investment, especially with higher-wattage panels.
SolarEdge S650B Optimizer Features
- DC Optimization: Enhances panel-level production despite shading or debris, maximizing overall energy yield.
- Sense Connect Technology: Identifies abnormal thermal events in the connector to prevent electric arcs, enhancing system safety.
- Dual Module Support: Supports connection of two PV modules in series for easy cable management and fast installation times.
- Simplified Wiring: Incorporates three short cables and one long cable for quicker, more straightforward installation.
- Flexible Design: Compatible with higher wattage panels, including bifacial modules, for maximum power density.
SolarEdge S-Series S500B Warranty
- 25-year warranty
- 25-year power output warranty
- Superior efficiency of 99.5%
SolarEdge S650B Power Optimizer Review
The SolarEdge S650B Power Optimizer is a powerful advancement in residential solar technology. By integrating cutting-edge features like Sense Connect and simplified wiring, it substantially enhances system safety while streamlining the installation process. The S650B's ability to perform DC optimization at the module level ensures that each panel in your solar array operates at peak efficiency, regardless of environmental challenges like partial shading or debris accumulation. Built for longevity with a 25-year warranty and an impressive 99.5% maximum efficiency, the SolarEdge S650B Power Optimizer offers homeowners a reliable, high-performance solution for their solar energy needs.
A key highlight of the S650B is its high power capacity, designed to handle up to 650W. This makes it particularly well-suited for use with the latest high-wattage and bifacial panels, allowing homeowners to maximize power density in their solar installations. The intelligent monitoring system provides panel-level visibility, enabling both homeowners and installers to quickly identify and address any issues, minimizing system downtime and optimizing energy production.
Learn more about the SolarEdge Commercial S-Series Power Optimizers
Different solar panels, PV mount & inverter systems available at low wholesale prices
Contact us for sales, quantity discounts and expert reviews for the SolarEdge S650B Power Optimizer.
