| Model Number | SW260-Mono Black |
| STC Rating | 260.0 |
| PTC Rating | 229.9 |
| Open Circuit Voltage (V) | 37.9 |
| Short Circuit Current (A) | 8.73 |
| Frame Color | Black |
| Origin | Germany/US |
| Power % ± | 0/5 |
| Weight (lbs) | 46.7 |
| Length (in) | 65.94 |
| Width (in) | 39.41 |
(DISCONTINUED) SolarWorld SW 260 Mono Black Solar Panel
SKU DISCONTINUED-MODULE-SW 260 mono blackProduct Discontinued
We're sorry, but this product has been discontinued and is no longer available.
Looking for alternative solar modules?
Check out our REC Solar Modules in Stock.
Need a new system?Click here for our complete system pricing.
World-Class Quality
Fully-automated production lines and seamless monitoring of the process and material ensure the quality that the company sets as its benchmark for its sites worldwide.
SolarWorld Plus-Sorting
Plus-Sorting guarantees highest system efficiency. SolarWorld only delivers modules that have greater than or equal to the nameplate rated power.
25 years linear performance guarantee and extension of product warranty to 10 years*
SolarWorld guarantees a maximum performance degression of 0.7% p.a. in the course of 25 years, a significant added value compared to the two-phase warranties common in the industry. In addition, SolarWorld is offering a product warranty, which has been extended to 10 years.*
|
Performance Under Standard Test Conditions (STC*) |
|||
|
|
|
SW 260 |
SW 260 Solar Panel |
|
Maximum Power |
Pmax |
260Wp |
|
|
Open Circuit Voltage |
Voc |
37.9 V |
|
|
Maximum Power Point voltage |
Vmpp |
31.6 V |
|
|
Short-Circuit Current |
Isc |
8.73 A |
|
|
Maximum Power Point Current |
Impp |
8.24 A |
|
*STC: 1000W/m2, 25°C, AM 1.5 |
|||
|
Component Materials |
|
|
Cells per module |
60 |
|
Cell Type |
Mono crystalline |
|
Cell Dimensions |
6.14 in x 6.14 in (156 mm x 156 mm) |
|
Front |
Tempered Glass (EN12150) |
|
Frame |
Clear anodized aluminum |
|
Weight |
46.7 lbs (21.2 kg |
|
System Integration Parameters |
|
|
Maximum system voltage SC II |
1000 V |
|
Maximum system voltage USA NEC |
600 V |
|
Maximum reverse current |
16 A |
|
Number of bypass diodes |
3 |
|
Performance at 800 W/M2, NOCT, AM 1.5 |
|||
|
|
|
SW 260 |

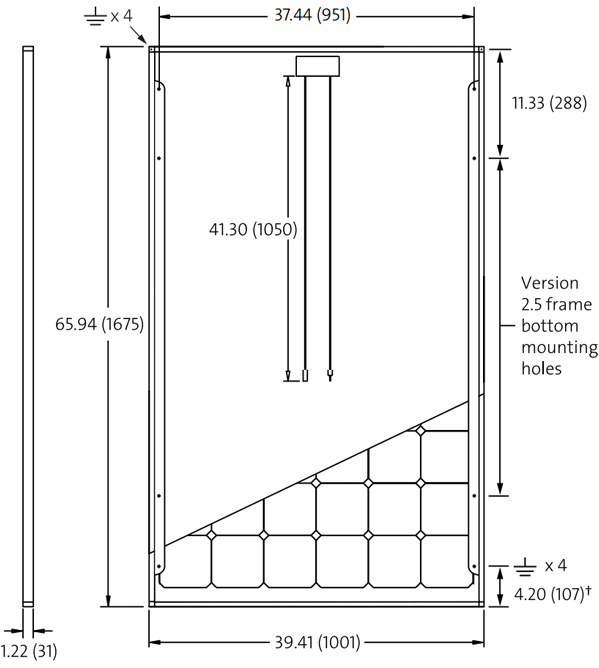

SW 260 Solar Panel Dimensions |
|
Maximum Power |
Pmax |
187.6 Wp |
|
|
Open Circuit Voltage |
Voc |
34.1 V |
|
|
Maximum Power Point Voltage |
Vmpp |
28.5 V |
|
|
Short-circuit Current |
Isc |
7.05 A |
|
|
Maximum Power Point Current |
Impp |
6.59 A |
|
Minor reduction in efficiency under partial load conditions at 25°C: at 200 W/m2, 95% - (+/-3%) of the STC efficiency (1000 W/m2) is achieved. |
|||
|
Thermal Characteristics |
|
|
NOCT |
46 °C |
|
TCIsc |
0.004 %/K |
|
TCVoc |
-0.30 %/K |
|
TCPmpp |
-0.45 %/K |
|
Operating temperature |
-40°C to 85°C |
|
Additional Data |
|
|
Junction Box |
IP65 |
|
Connector |
MC4 |
|
Module Efficiency |
15.21 % |
|
Fire rating (UL 790) |
Class C |
|
Power Tolerance |
-0 Wp ... +5 WP
|
Certificates:
