Tesla Gateway 2 Specifications

Current Rating 200A
AC Voltage 120/240V
Maximum Input Short Circuit Current 10kA
Dimensions 660 x 411 x 149mm
Weight 45 lbs
Operating Temperature -20°C to 50°C
Internal Panelboard Rating 200A
Circuit Spaces 6-space/12-circuit
Primary AC Meter Accuracy ±0.2%
Auxiliary AC Meter Accuracy ±2%
Enclosure Type NEMA 3R
Warranty 10 years

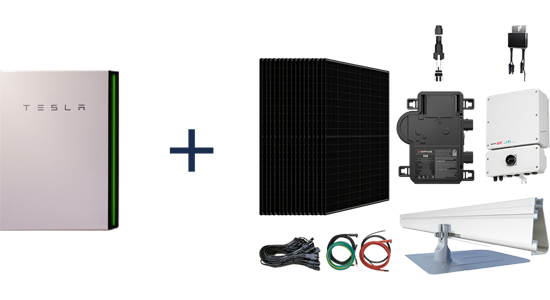

Complete Residential Solar Systems + Energy Storage

Complete Residential Solar Systems Plus Energy Storage

*Tesla Powerwall only available with Tesla Certified Installers

Tesla Gateway 2 Power Management System

SKU TESLA-GATEWAY-2-PW3-ACC
Tesla Logo

The Tesla Gateway 2

The Tesla Backup Gateway 2 manages grid connectivity and power flow for Powerwall systems, enabling automated transitions between grid and backup power. The 200-amp rated device incorporates essential monitoring functions with an optional 6-space/12-circuit internal panelboard, providing efficient system integration for residential installations.

Tesla Powerwall 3 Thumbnail side view

Built for both partial and whole-home backup configurations, the Backup Gateway 2 combines high-precision metering with intelligent grid disconnect features. The system supports direct monitoring through Wi-Fi, Ethernet, or cellular connections, allowing homeowners to track energy usage and system status through the Tesla app.

Tesla Gateway 2 Benefits & Features

  • Flexible Backup Options: Supports both partial and whole-home backup configurations with automatic outage detection.
  • Integrated Load Center: Optional 200A panelboard with 6-space/12-circuit configuration simplifies installation.
  • Multiple Communication Paths : Wi-Fi, Ethernet, and cellular connectivity ensure reliable system monitoring.
  • Scalable Design: Supports up to 10 AC-coupled Powerwall units for expanded capacity.
  • Environmental Protection: NEMA 3R enclosure suitable for indoor and outdoor installation.
  • Tesla Gateway 2 Applications

    • Whole home backup power control
    • Partial home backup management
    • Solar system monitoring
    • Energy consumption tracking
    • Time-based control
    • Multi-Powerwall coordination
Tesla Logo Black

Tesla Gateway 2 Energy Management System Review

The Tesla Backup Gateway 2 provides essential power management functionality for residential Powerwall installations. The 200-amp system accommodates both partial and whole-home backup scenarios while delivering highly accurate energy metering through its ±0.2% primary AC meter. The optional 6-space panelboard integration offers valuable installation flexibility, particularly beneficial in retrofit applications where existing electrical infrastructure requires adaptation. The system's ability to support up to 10 AC-coupled Powerwalls enables substantial backup capacity scaling.

The Backup Gateway 2's multiple communication options demonstrate practical system design considerations. The combination of Wi-Fi, Ethernet, and cellular connectivity ensures reliable system monitoring and control through the Tesla app, while the NEMA 3R enclosure supports various installation locations. The integration of solar self-consumption and time-based control features provides homeowners with comprehensive energy management capabilities, while compatibility with standard circuit breakers simplifies maintenance and modifications.
