Tesla Gateway 3 Specifications

Continuous Current Rating 200A
Nominal Grid Voltage 120/240V AC
Maximum Supply Short Circuit Current 25kA
Dimensions 660 x 411 x 149mm
Weight 36 lbs
Operating Temperature -20°C to 50°C
Internal Panelboard Rating 200A
Circuit Spaces 8-space/16-circuit
Compatible Breakers Eaton BR, Siemens QP, Square D HOM
Enclosure Type NEMA 3R
AC Meter Accuracy ±0.5%
Warranty 10 years

Complete Residential Solar Systems + Energy Storage

Complete Residential Solar Systems Plus Energy Storage

*Tesla Powerwall only available with Tesla Certified Installers

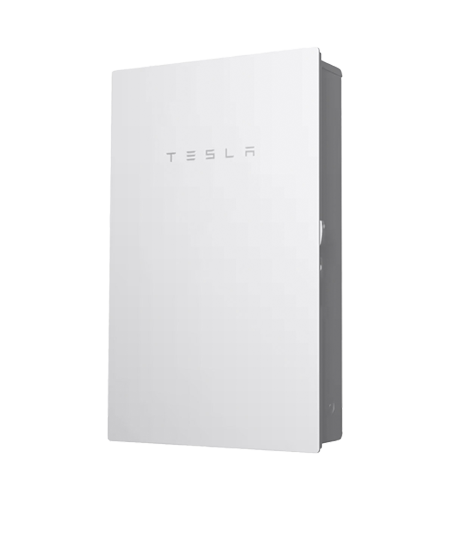

Tesla Gateway 3 Energy Management System

SKU TESLA-GATEWAY-3-PW3-ACC
Tesla Logo

The Tesla Gateway 3

The Tesla Gateway 3 provides comprehensive grid monitoring and power management for Powerwall systems, enabling seamless transitions between grid and backup power. This 200-amp rated device integrates essential energy management functions with an optional 8-space/16-circuit internal panelboard, streamlining system installation and operation.

Tesla Powerwall 3 Thumbnail side view

Designed for whole-home backup configurations, the Gateway 3 combines precise power metering with automated grid disconnect capabilities. The system's integrated CAN communication and revenue-grade metering ensure accurate monitoring and control through the Tesla app, while supporting various breaker configurations for installation flexibility.

Tesla Gateway 3 Benefits & Features

  • Whole Home Backup Support: Controls grid connection and provides automatic outage detection with seamless power transition.
  • Integrated Load Center Option: Optional 200A panelboard with 8-space/16-circuit configuration reduces installation complexity.
  • High Fault Current Rating: Supports up to 25kA fault current with compatible Eaton main breakers.
  • Precise Energy Monitoring: Revenue grade AC metering (±0.5%) for accurate consumption tracking.
  • Multiple Communication Options: Built-in CAN interface with Tesla app integration for system control.
  • Tesla Gateway 3 Applications

    • Whole home backup power management
    • Solar system monitoring
    • Energy consumption tracking
    • Time-based energy control
    • Grid outage protection
    • Multi-Powerwall system coordination
Tesla Logo Black

Tesla Gateway 3 Review

The Tesla Gateway 3 delivers comprehensive power management capabilities for residential backup power applications. The 200-amp system supports whole-home backup configurations while providing revenue-grade metering accuracy for precise energy monitoring. The optional integrated 8-space panelboard offers installation flexibility, particularly valuable in retrofit applications where space constraints may limit mounting options. The system's 25kA fault current rating with compatible breakers provides robust protection for demanding installations.

The Gateway 3's integration with the Tesla ecosystem demonstrates thoughtful system architecture. The combination of automated grid monitoring, seamless power transfer, and precise consumption tracking through the Tesla app provides homeowners with detailed energy management capabilities. The NEMA 3R enclosure ensures reliable operation in various installation environments, while compatibility with multiple breaker manufacturers offers installation flexibility. Support for up to four Powerwall units allows system expansion to meet increasing energy demands.
