| Electrical Data | TSM-235PA05.05 |
| Peak Power Watts | 235W |
| PTC Rating | 213.5 |
| Power Output Tolerance | 0/+3% |
| Maximum Power Voltage | 29.3V |
| Maximum Power Current | 8.03A |
| Open Circuit Voltage | 37.2V |
| Short Circuit Current | 8.55A |
| Module Efficiency | 14.4% |
| Values at Standard Test Conditions STC (air Mass aM1.5, irradiance 1000W/m², Cell Temperature 25°C). Power measurement tolerance: ±3% |
|
Trina Solar TSM-235PA05.05 Black on Black Solar Panel
SKU TSM-235PA05.05No Longer Available
SOLAR PANELS
Trina Solar TSM-235PA05.05 Solar Panel
Dark with Black Frame
- 213.5 PTC Rating
- 235W max power output
- Positive 0/+3% power tolerance
- 10 Year product warranty
- 25 Year linear power warranty

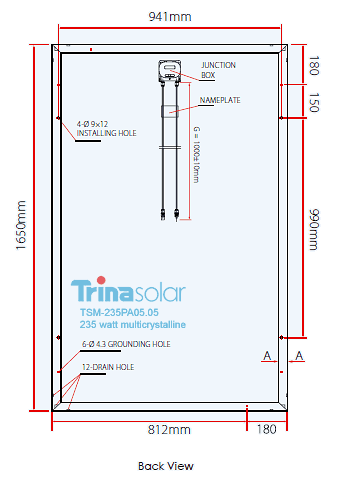

Trina TSM-235PA05.05 Dimensions
Complete Trina Solar Systems available.
 |
Trina Solar panels can bear snow loads up to 5400Pa Wind loads up to 2400Pa |
 |
Guaranteed power output 0~+3% |
 |
High performance under low light conditions cloudy days, mornings and evenings |
 |
Manufactured according to international Quality and Environment Management System Standards ISO9001, ISO14001 |
 |
MC4 photovoltaic connectors increase system reliability |
| Mechanical Data | |
| Solar cells | Multicrystalline 156 × 156mm (6 inches) |
| Cell orientation | 60 cells (6 × 10) |
| Module dimensions | 1650 × 992 × 35mm (64.95 × 39.05 × 1.37 inches) |
| Weight | 18.6kg (41.0 lb) |
| Glass | High transparency solar glass 3.2mm (0.13 inches) |
| Frame | Black anodized aluminium alloy |
| J-Box | iP 65 rated |
| Cables | Photovoltaic Technology cable 4.0mm² (0.006 inches²), |
| 1000mm (39.4 inches) | |
| Connector | Original MC4 |
|
About Trina Solar
Founded in 1997, Trina Solar (NYSE: TSL) has established itself as a leader in the solar community with its vertically integrated business model. Our modules and system solutions provide clean solar power in on-grid and off-grid residential, commercial, industrial and utility-scale systems.
With more than 22 offices worldwide, Trina Solar has partnerships with leading installers, distributors, utilities and developers in all major PV markets. Trina Solar is committed to driving smarter energy choices.
